Solenoid - EVAP/Purge: Removal

The duty cycle EVAP canister purge solenoid (2) is located in the engine compartment. It is attached to a bracket near the brake power booster (3).

1. Disconnect electrical wiring connector (1) at solenoid.
2. Disconnect vacuum hoses (4) at solenoid.
3. Remove solenoid from mounting bracket.

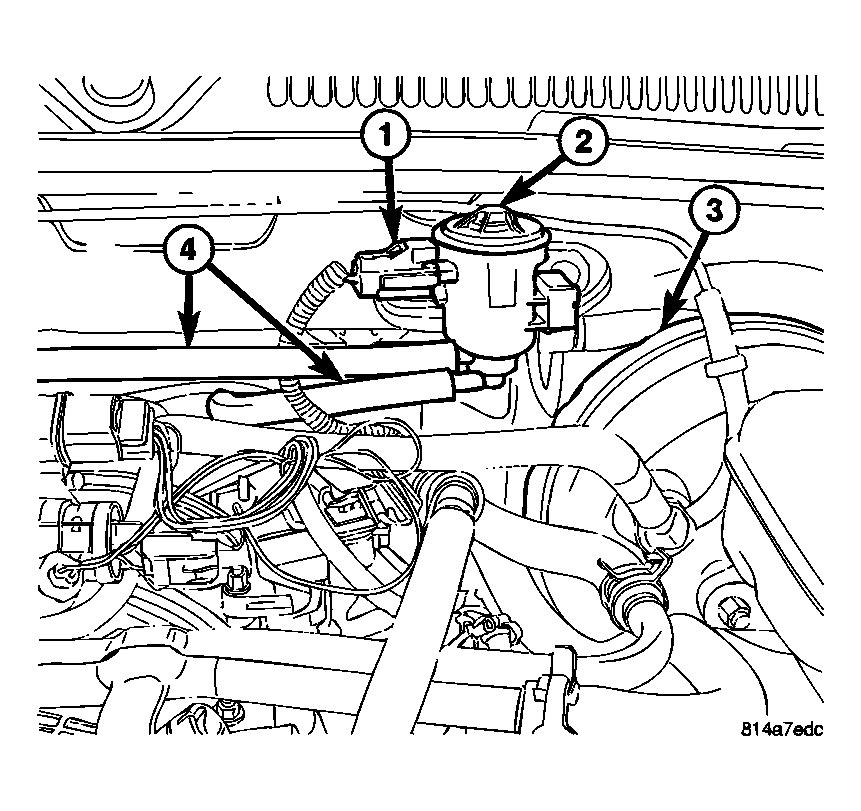

   Fig 1: Removing Solenoid Assembly

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
