Reservoir - Vacuum: Description

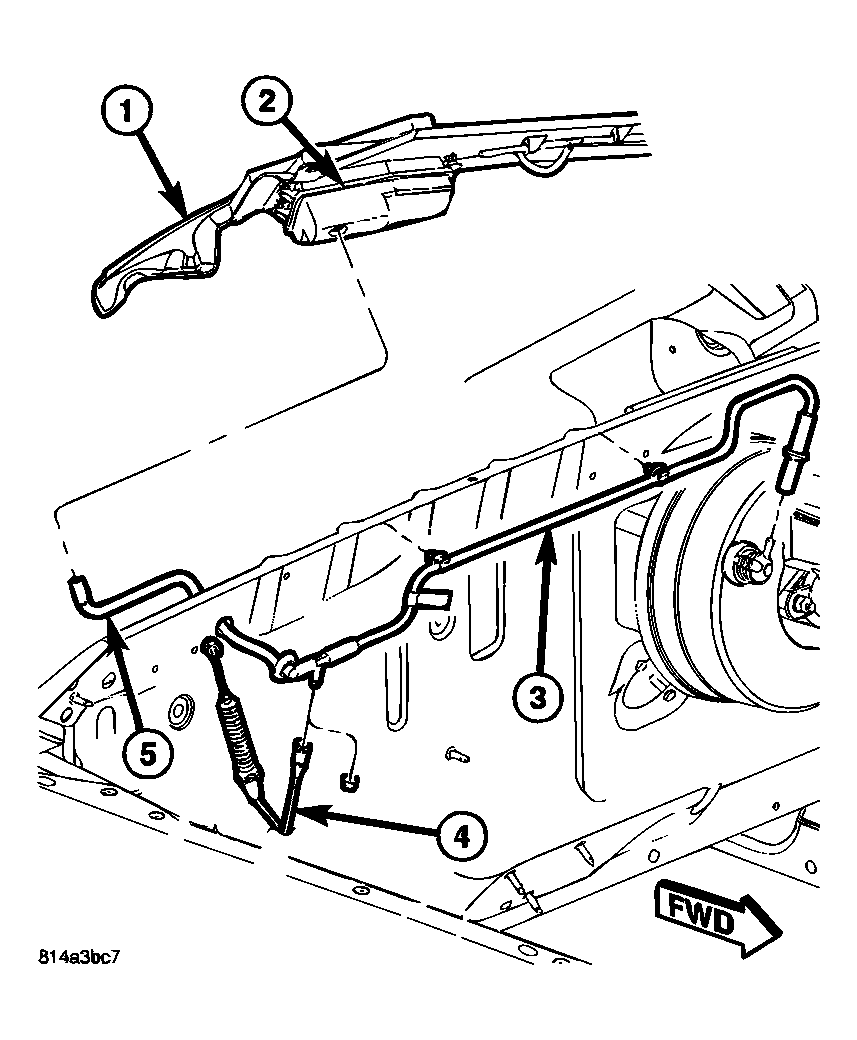

Fig 1: Identifying Vacuum Supply Components
G04284150Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The vacuum reservoir (2) is located under the windshield wiper cowl (1).
