Pump - Natural Vac Leak Detection: Removal

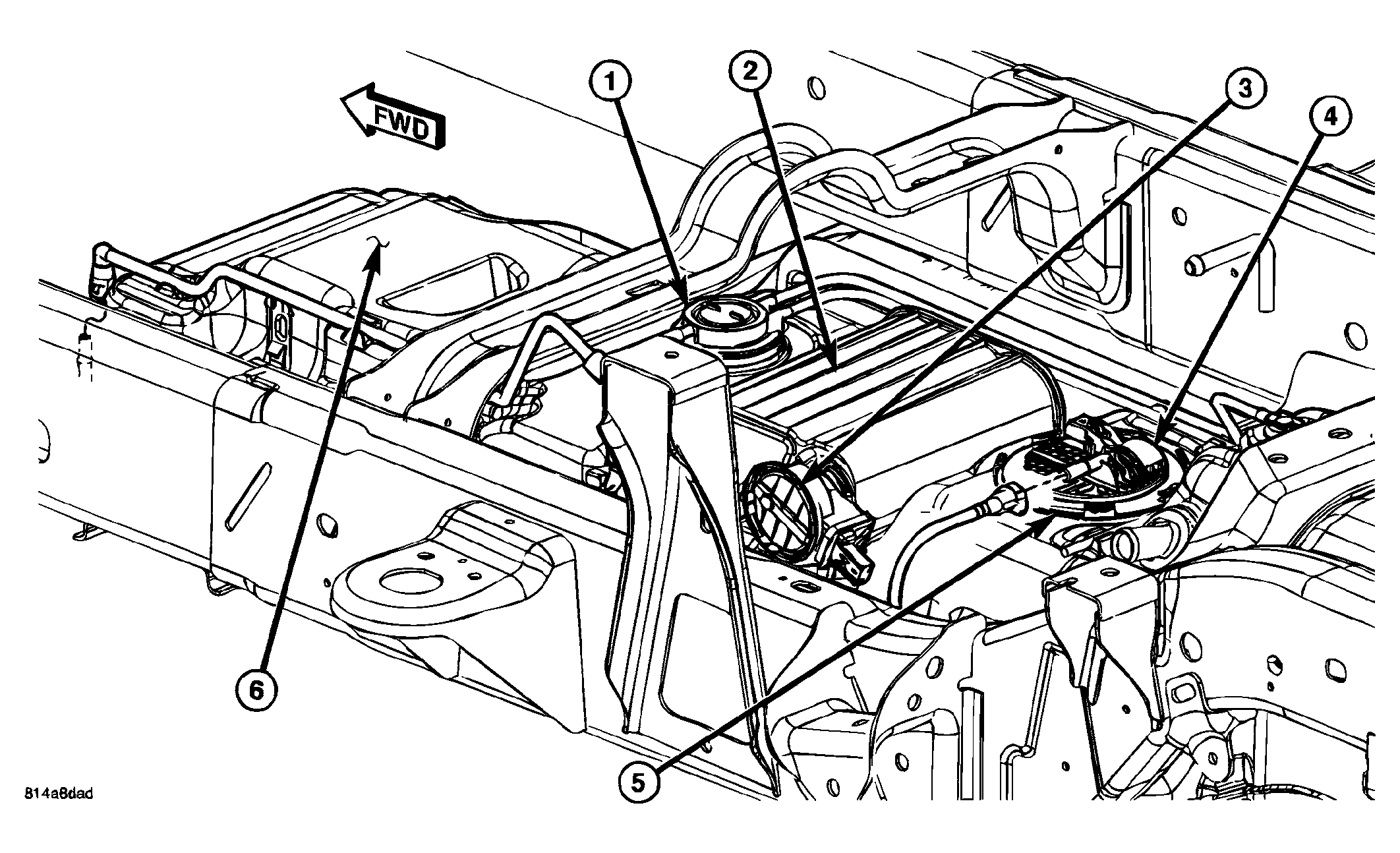

Fig 1: Locating NVLD Pump & EVAP Canister

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The EVAP canister (2) is mounted to the top of the fuel tank (6). Both the EVAP canister (2) and NVLD pump (3) can be removed without removing the fuel tank.

1. Raise and support vehicle.
2. Remove left-rear tire.
3. Remove plastic shield in front of left-rear tire. Access to both the EVAP canister (2) and NVLD pump (3) from the area in front of the removed tire.

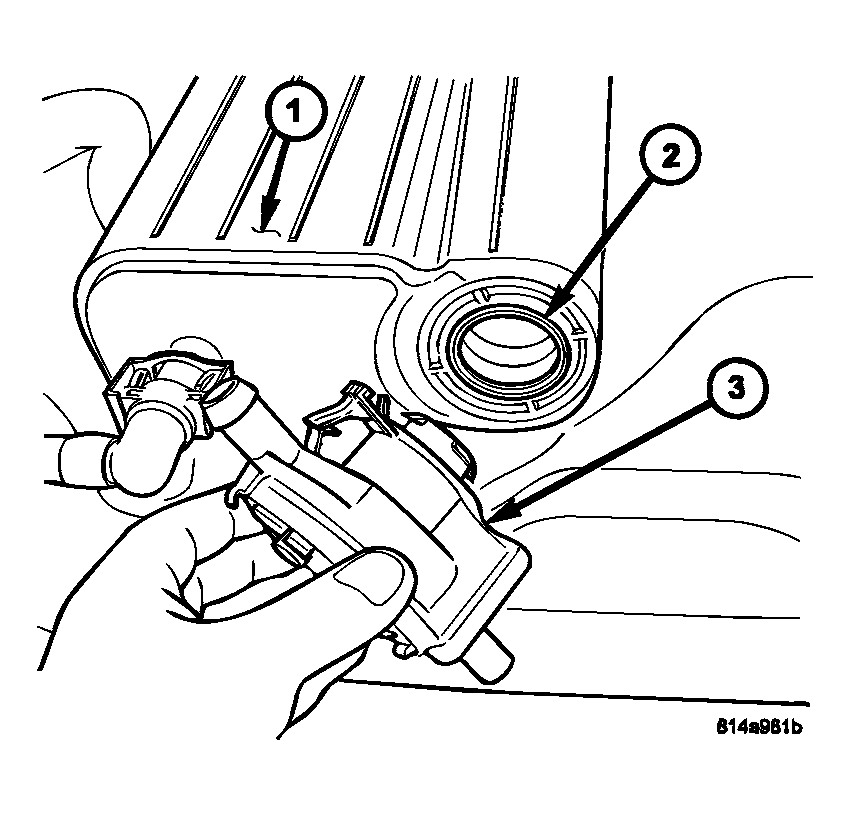

   Fig 2: Prying Outward On Tab

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Disconnect electrical connector at NVLD pump.
5. Remove vapor line at NVLD pump. Pry outward on tab (3) and rotate pump clock-wise about 70 ° for removal.

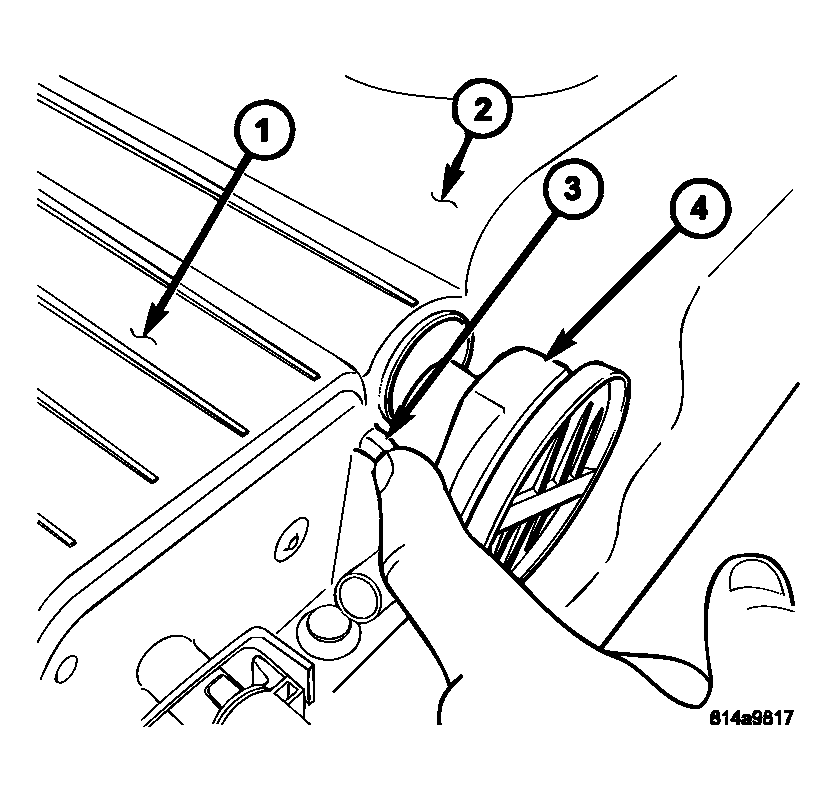

   Fig 3: Removing/Installing NVLD Pump

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Remove NVLD pump o-ring (2) from EVAP canister (1).
