Pump - Natural Vac Leak Detection: Description

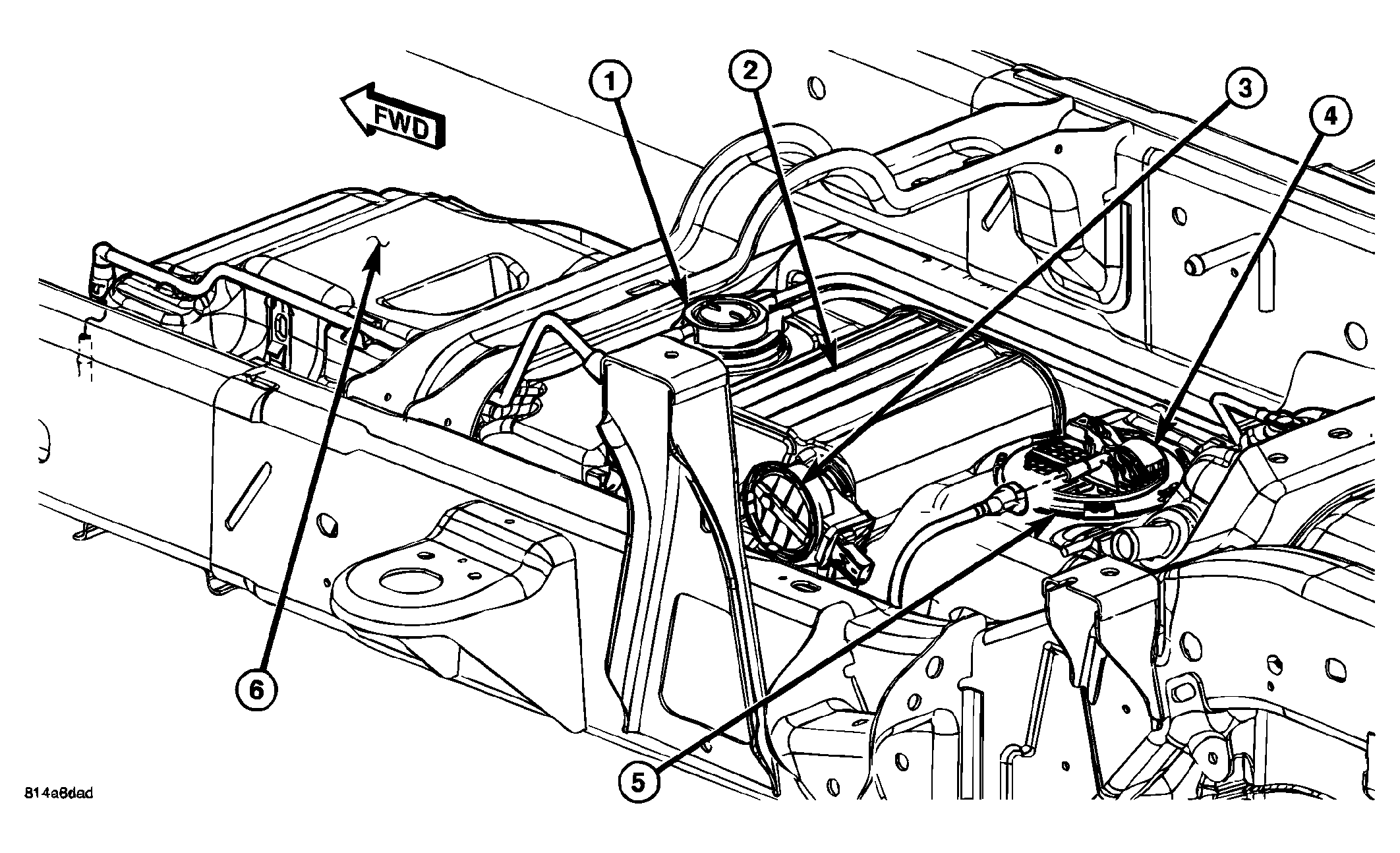

Fig 1: Locating NVLD Pump & EVAP Canister

G04284124

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The NVLD pump (3) is attached to the end of the EVAP canister (2).
