Automatic Trans: Cooling: Radiator: Removal

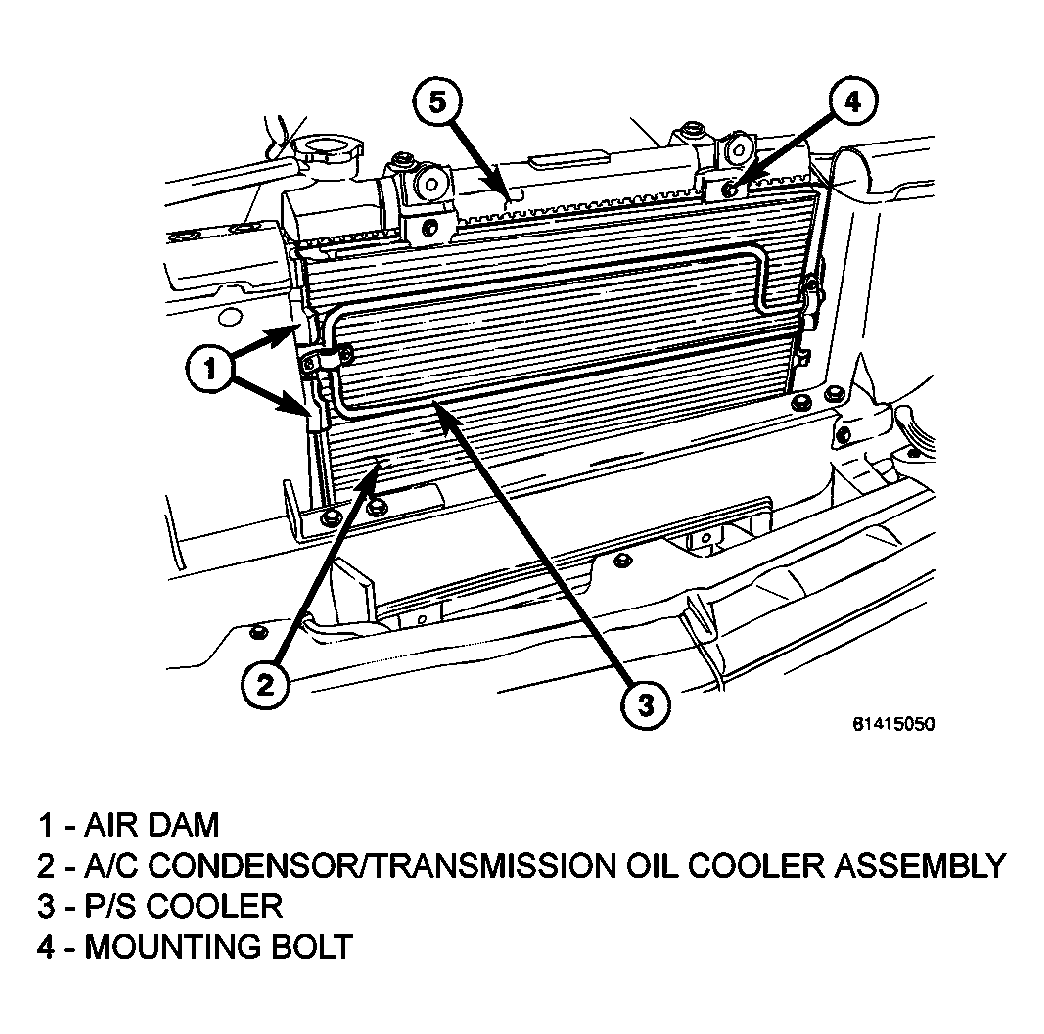

Fig 1: Identifying Radiator & Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Disconnect battery negative cable.
2. Drain cooling system (Refer to STANDARD PROCEDURE )
3. Remove pushpins (1) and the upper condenser/radiator seal.
4. Remove upper radiator hose.

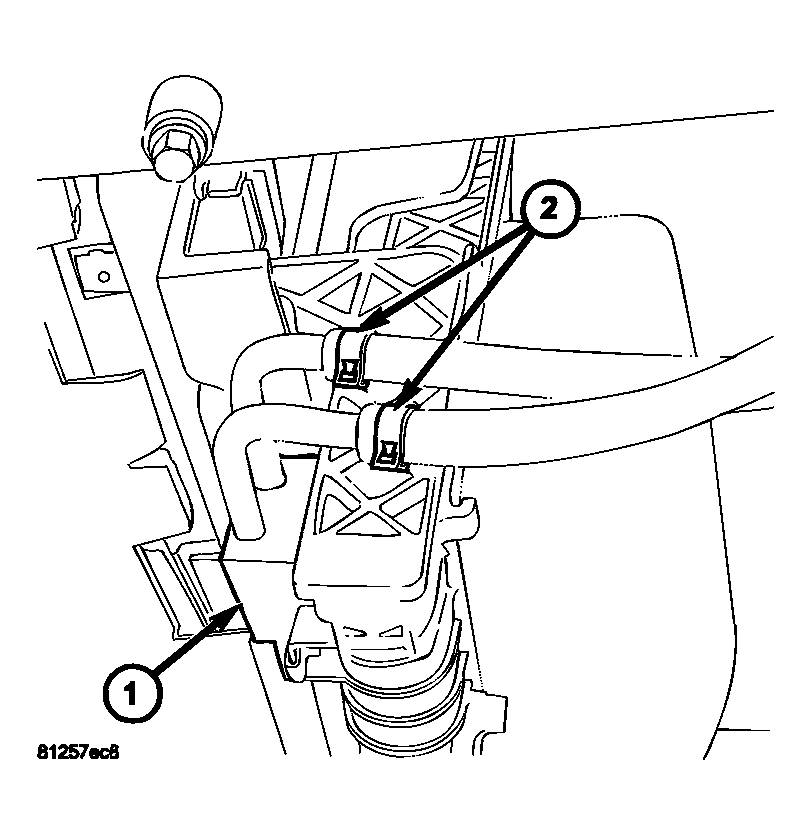

   Fig 2: Identifying Power Steering Cooler Lines

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Disconnect power steering hoses from power steering fluid/transmission cooler.
6. Remove overflow tube.
7. Remove radiator fan shroud from the radiator and position over the radiator fan.
8. Raise vehicle.

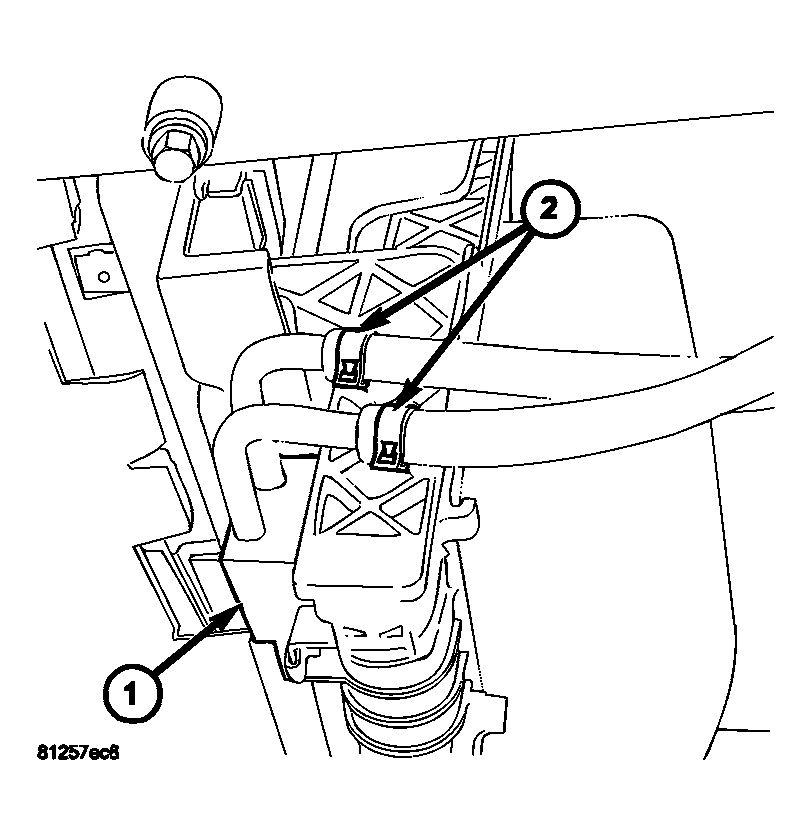

   Fig 3: Identifying Power Steering Cooler Lines

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. Disconnect the power steering cooler lines (2).
10. Remove the lower radiator hose.
11. Lower vehicle.
12. Remove upper radiator mounting bolts.
13. Remove radiator.
14. Remove power steering fluid/transmission oil cooler form the radiator, if necessary.
