Heater - Engine Block: Installation

Install block drain plugs.

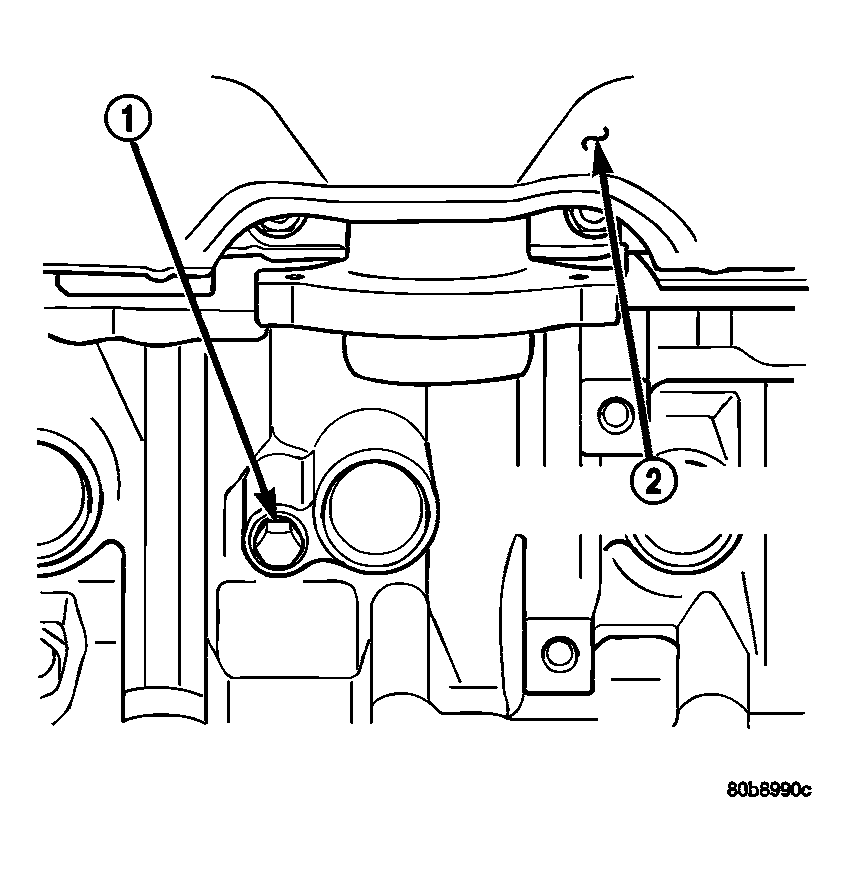

Fig 1: Identifying Engine Cylinder Block Drain Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

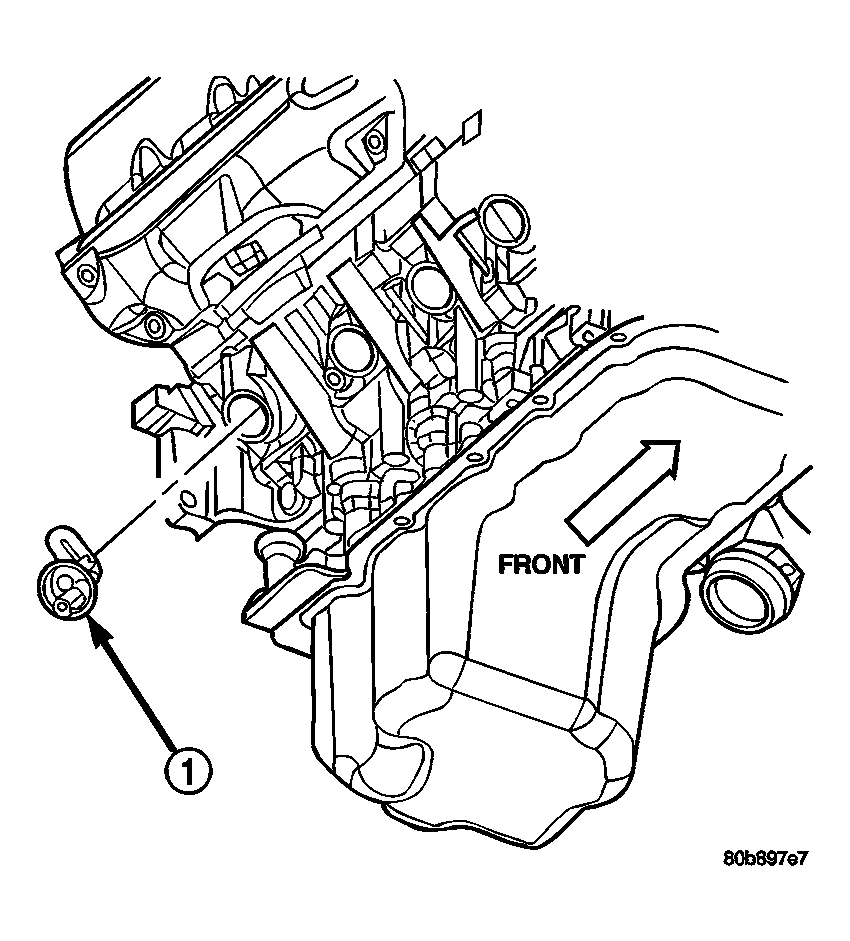

Fig 2: Identifying Engine Block Heater
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Thoroughly clean cylinder block core hole and block heater seat.
Insert block heater assembly with element loop pointing at twelve o'clock.
With block heater fully seated, tighten center screw to 2 N.m (17 in. lbs.) torque.
Refill cooling system (Refer to STANDARD PROCEDURE ).
Start and warm the engine. Check for leaks.
