Container - Coolant Recovery: Installation

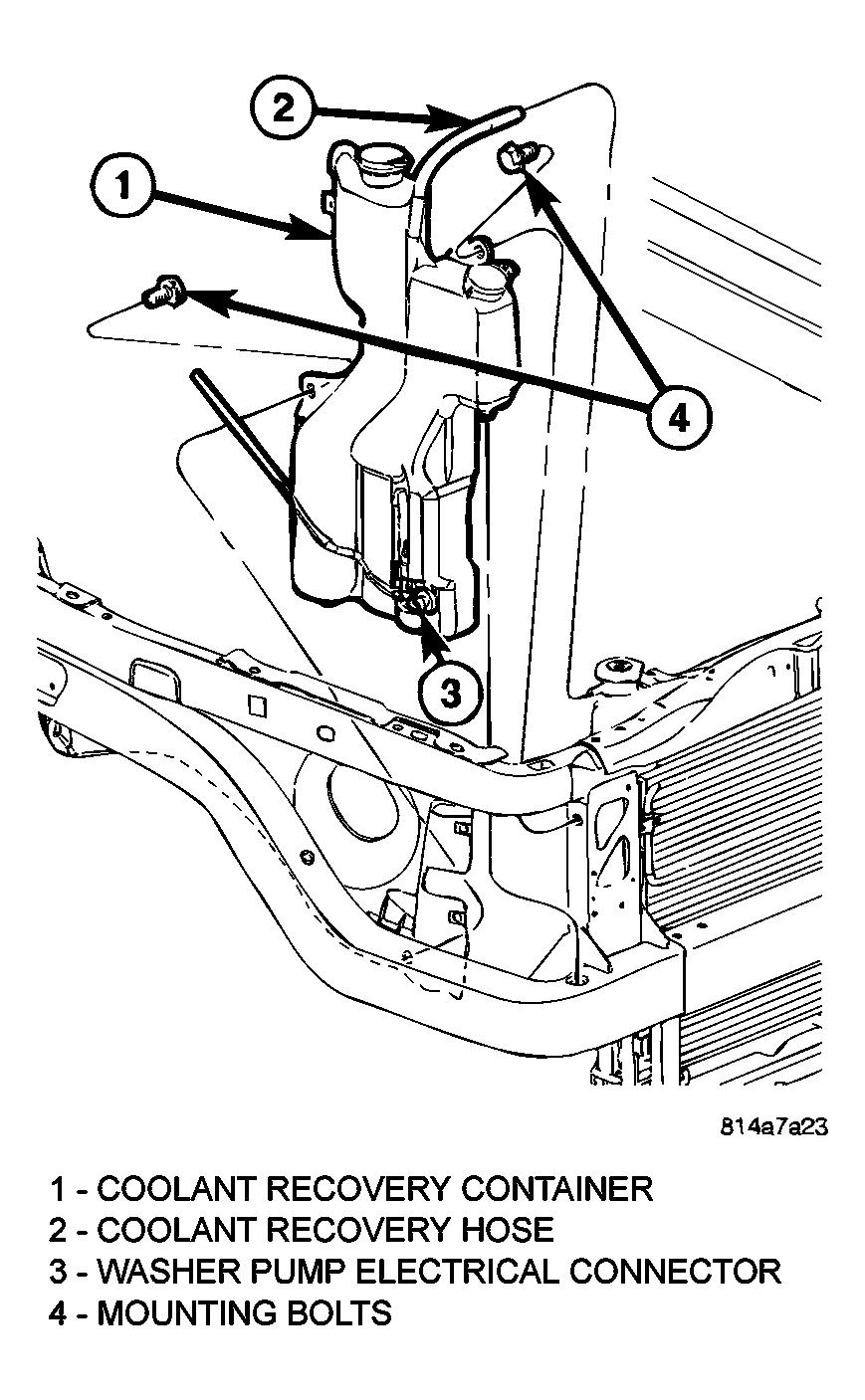

Fig 1: Removing/Installing Coolant Recovery Container

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Position coolant recovery container(1) in vehicle.
2. Install coolant recovery container mounting bolts and clip. Tighten bolts to 8.5 N.m (75 in. lbs.).
3. Connect washer pump electrical connector (3).
4. Connect coolant recover container hose (2) to radiator.
5. Fill coolant recover container with windshield washer fluid and with coolant (Refer to STANDARD PROCEDURE ).
