Cylinder - Key/Lock: Removal

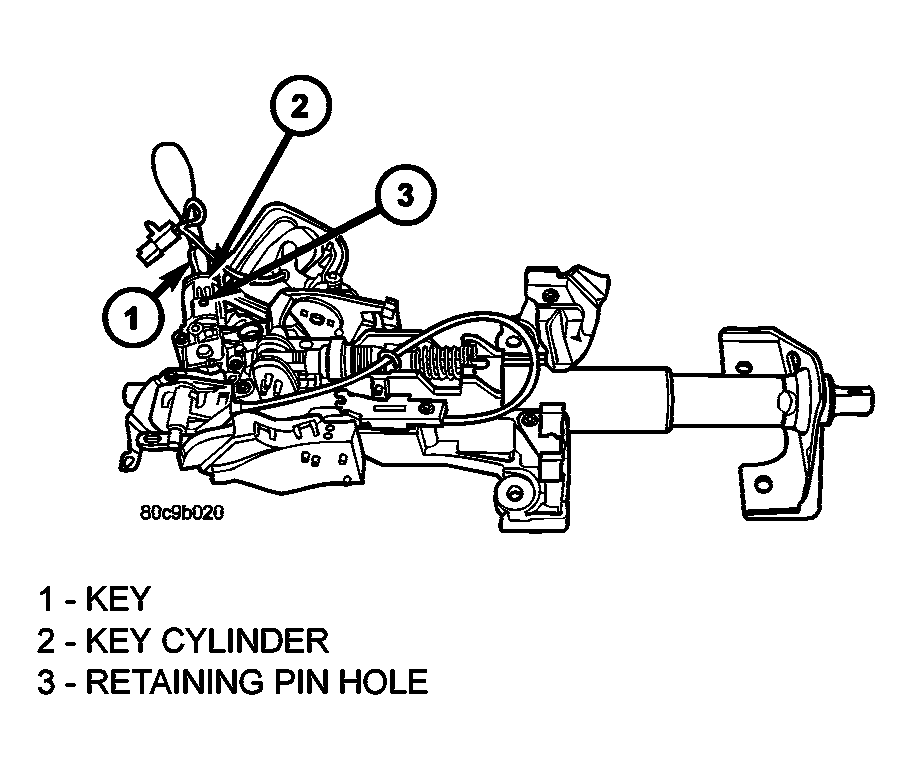

Fig 1: Removing Key/Lock Cylinder

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The ignition key (1) must be in the key cylinder (2) for cylinder removal.

1. Disconnect negative cable from battery.
2. Remove upper and lower covers (shrouds) from steering column.
3. Place shifter in PARK position.
4. A retaining pin is located at side of key cylinder assembly (2).

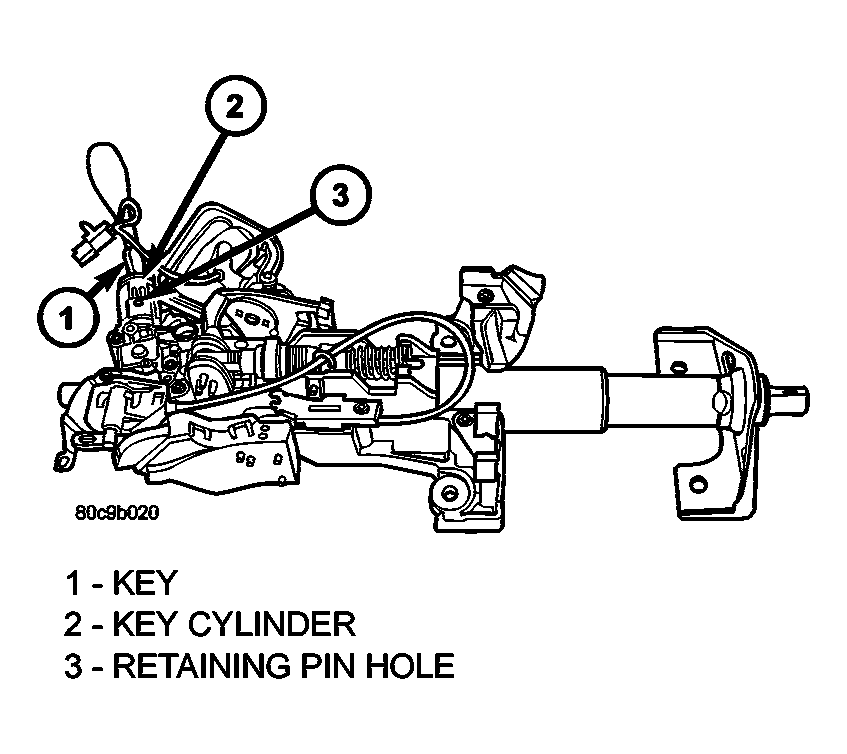

   Fig 2: Pressing Retaining Pin

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Rotate key to RUN position.
2. Press in on retaining pin while pulling key cylinder (1) from ignition switch.
