3.7L Engine

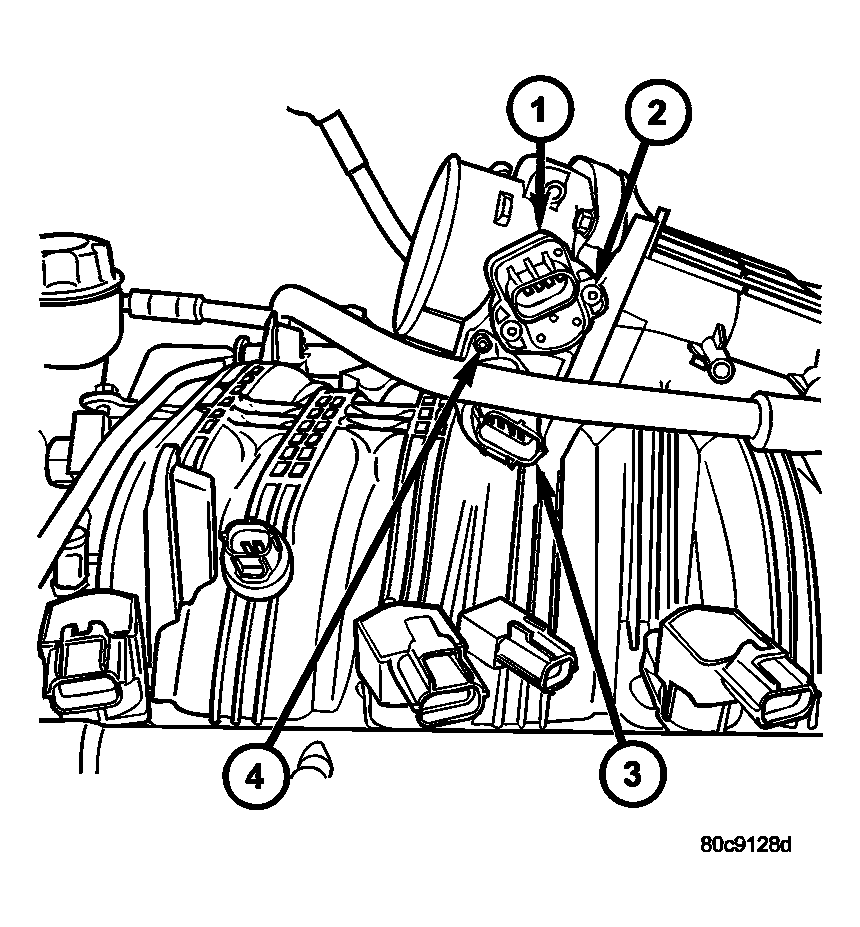

Fig 1: Identifying Throttle Body Components (3.7L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The 3-wire Throttle Position Sensor (TPS) is mounted on the throttle body (1) and is connected to the throttle blade shaft.
