3.7L V-6

The Manifold Absolute Pressure (MAP) sensor (2) is mounted into the front of the intake manifold. An o-ring is used to seal the sensor to the intake manifold.

1. Clean MAP sensor mounting hole at intake manifold.
2. Check MAP sensor o-ring seal for cuts or tears.
3. Position sensor into manifold.
4. Install MAP sensor mounting bolts (screws). Refer to TORQUE - FUEL SYSTEM .
5. Connect electrical connector.

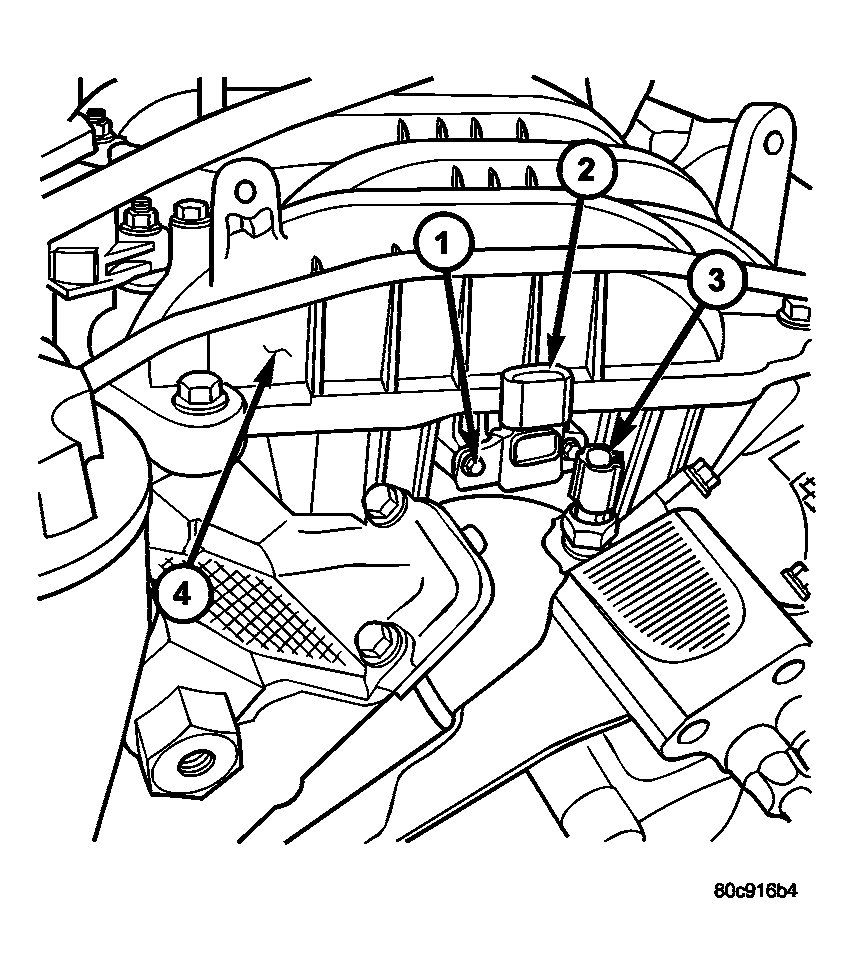

   Fig 1: Locating Manifold Absolute Pressure (MAP) Sensor (3.7L)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
