Injector - Fuel: Installation

  1. Install fuel injector(s) (3) into fuel rail assembly (4) and install retaining clip(s) (2).
  2. If same injector(s) is being reinstalled, install new o-ring(s).
  3. Apply a small amount of clean engine oil to each injector o-ring. This will aid in installation.
  4. Install fuel rail. (Refer to FUEL RAIL - INSTALLATION ).
  5. Start engine and check for fuel leaks.

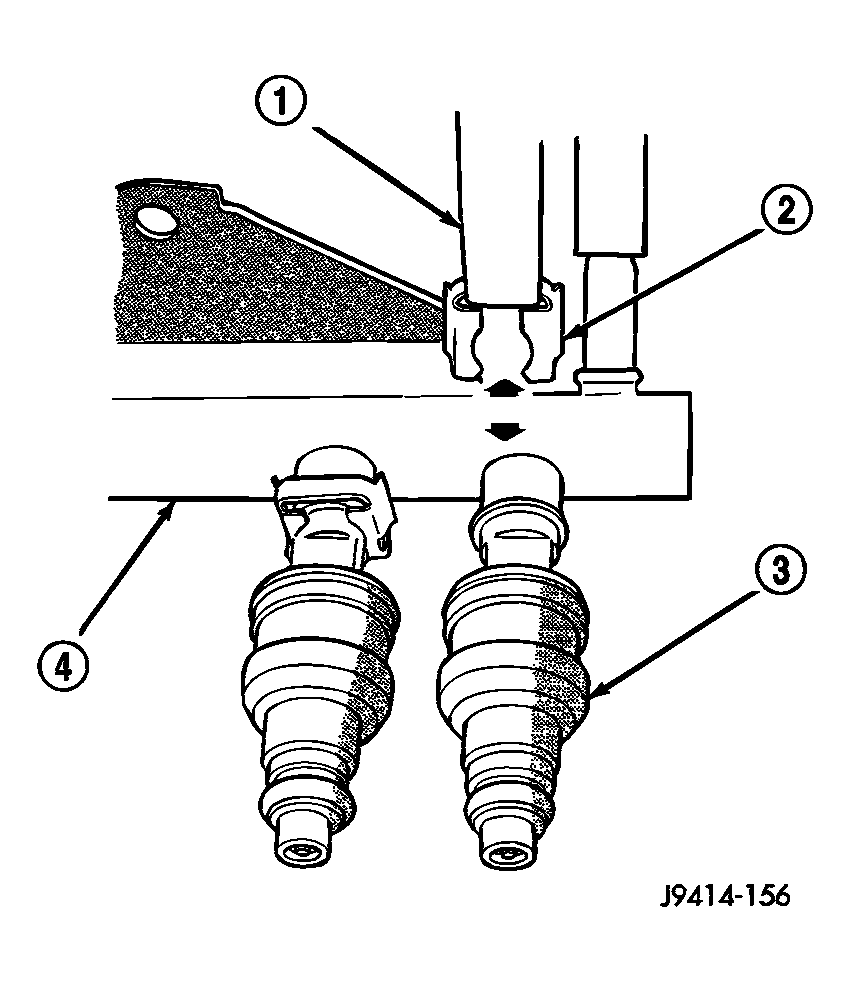

    Fig 1: Removing/Installing Clip And Fuel Injector
    G04283745Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
