4.7L Engine

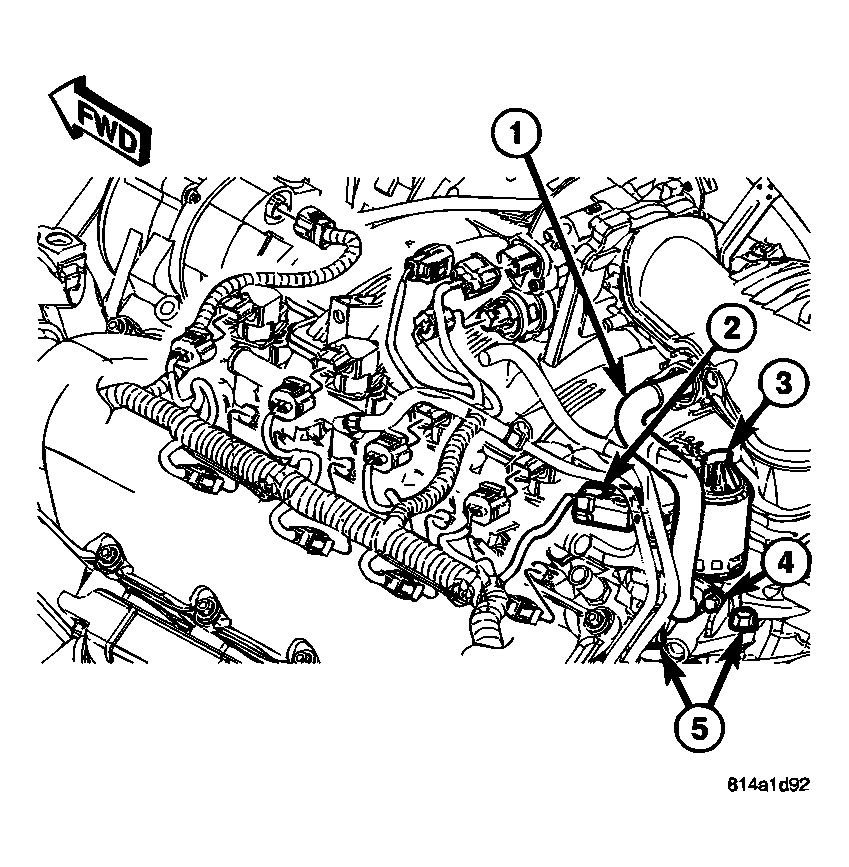

Fig 1: Identifying Electronic EGR Valve And Solenoid Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The electronic EGR valve and solenoid assembly (4) is attached to the rear of the left cylinder head. An exhaust gas routing tube (3) connects the EGR valve to the intake manifold.

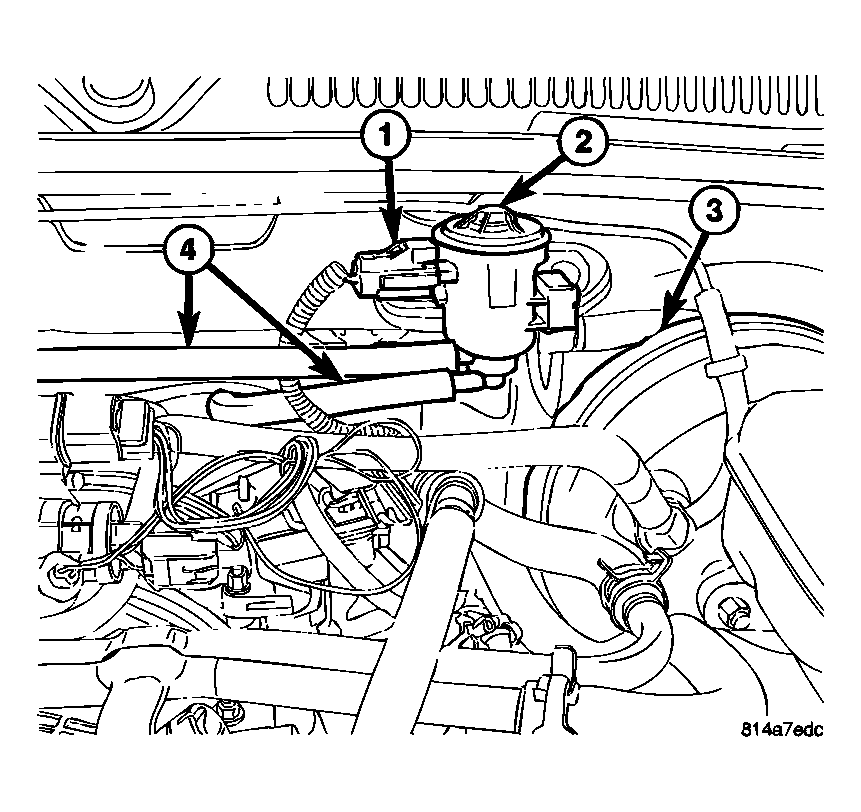

Fig 2: Removing EVAP Solenoid

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Remove EVAP solenoid (2). Refer to SOLENOID - EVAP/PURGE .

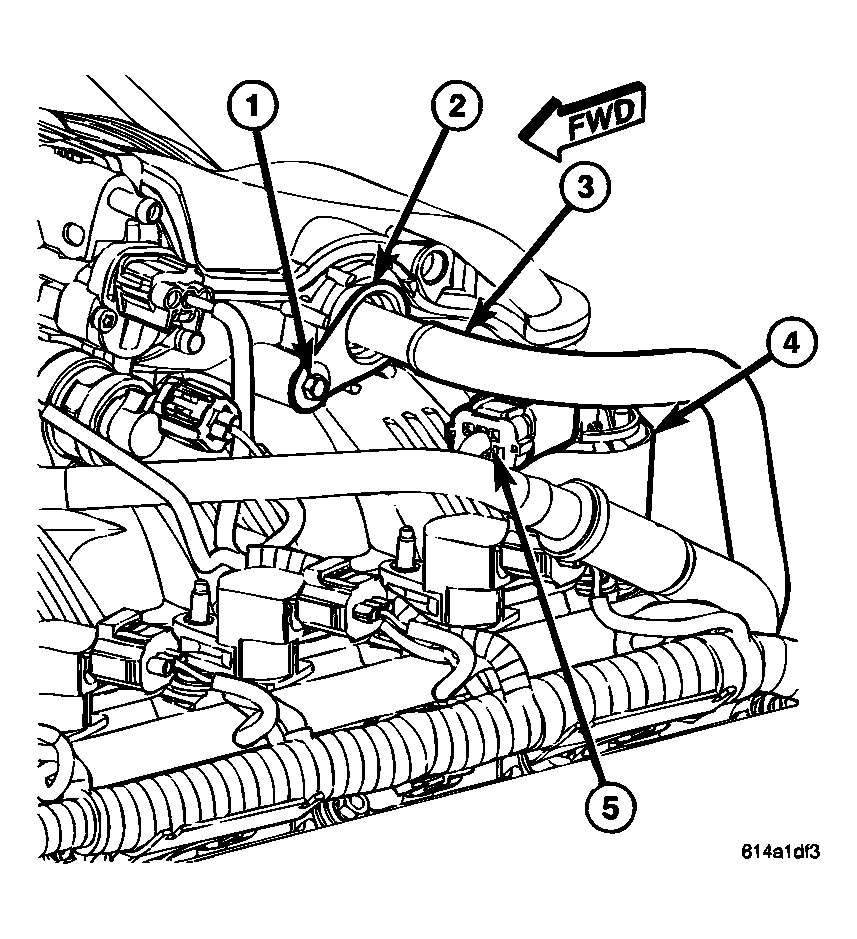

   Fig 3: Identifying Electronic EGR Valve And Solenoid Assembly Components

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Remove electrical connector (5) at top of EGR valve solenoid.
3. Remove tube mounting bolt (1) at intake manifold.
   Fig 4: Identifying Electronic EGR Valve And Solenoid Assembly

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Remove two bolts (4) connecting EGR tube (1) to valve assembly.
5. Remove gasket located between EGR tube flange and EGR valve assembly.
6. Remove two EGR valve mounting bolts (5).
7. Separate valve assembly (3) from engine.
8. Remove and discard metal gasket located between cylinder head and valve assembly.
