Solenoid - EVAP/Purge: Description

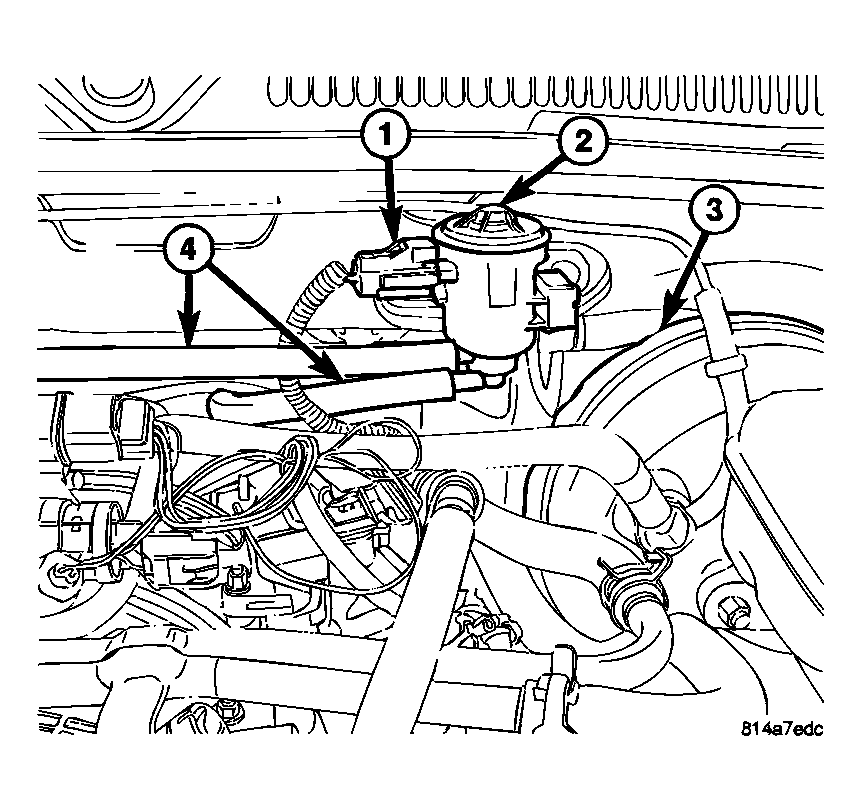

Fig 1: Identifying EVAP Canister Purge Solenoid
G04284106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The duty cycle EVAP canister purge solenoid (2) is located in the engine compartment. It is attached to a bracket near the brake power booster (3).
