Reservoir - Vacuum: Installation

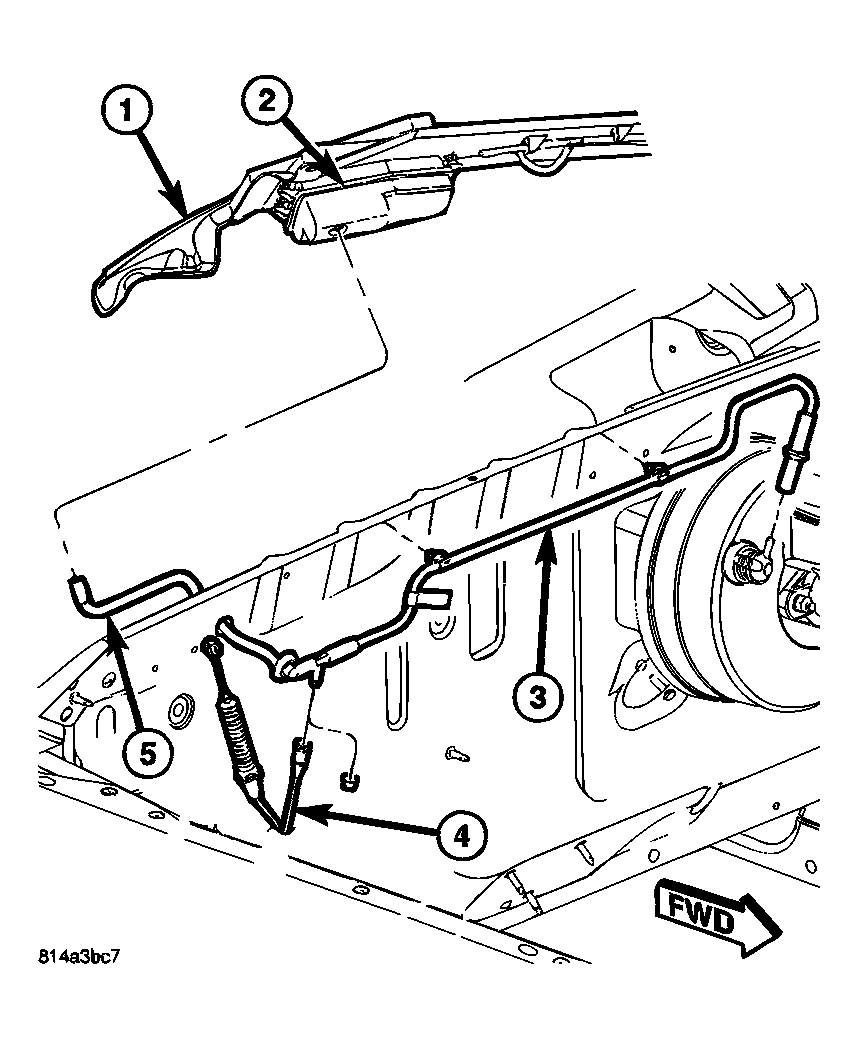

Fig 1: Identifying Vacuum Supply Components
G04284152Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Position reservoir (2) onto windshield wiper cowl (1).
  2. Install three clips (2) to reservoir. Attach reservoir to cowl panel by pushing clips into cowl panel (1).
  3. Connect vacuum line (5) to reservoir fitting.
  4. Install windshield wiper cowl (1).
