Pump - Natural Vac Leak Detection: Installation

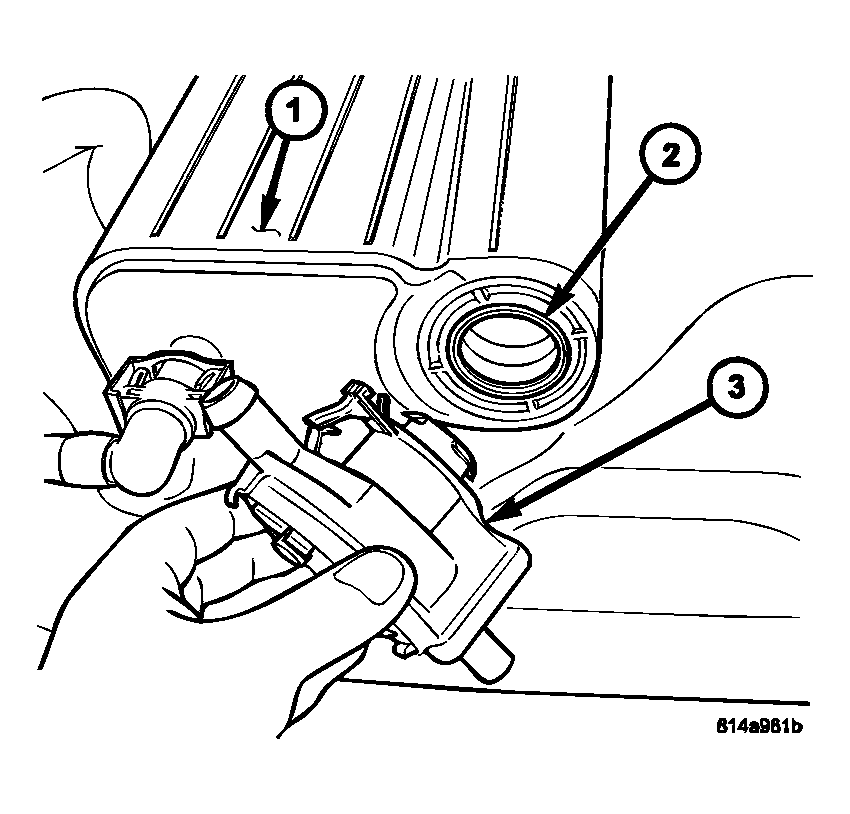

Fig 1: Removing/Installing NVLD Pump

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Install new NVLD pump o-ring (2) to EVAP canister (1).

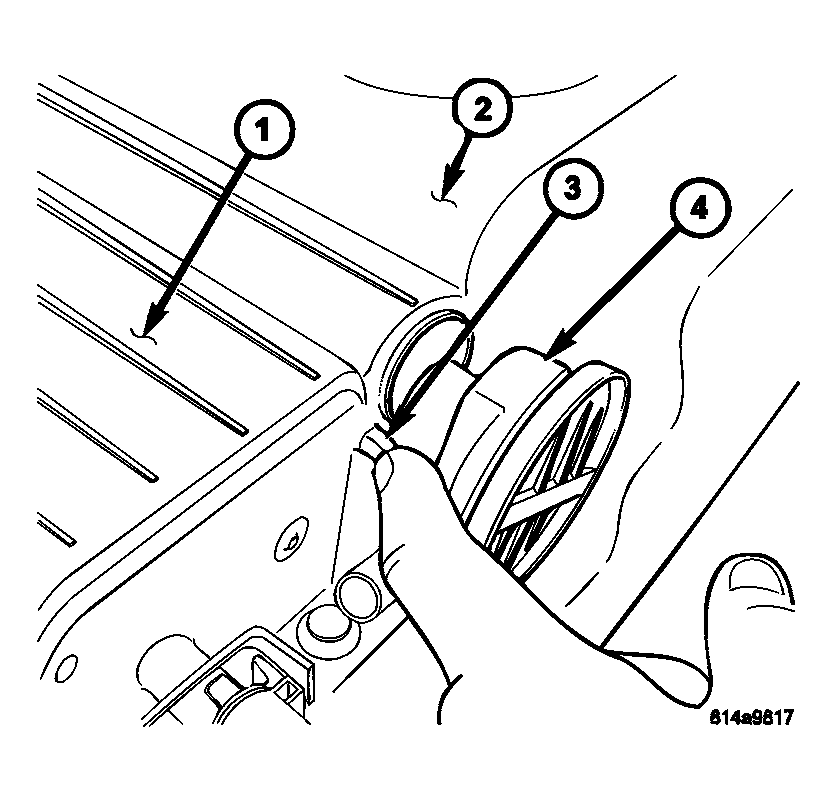

   Fig 2: Positioning NVLD Pump Into EVAP Canister

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Position NVLD pump (4) into EVAP canister (1).
3. Rotate pump (4) until tab (3) aligns with notch in EVAP canister (1).
4. Carefully install vapor/vacuum lines to NVLD pump. The vapor/vacuum lines and hoses must be firmly connected. Check the vapor/vacuum lines at the NVLD pump, filter and EVAP canister purge solenoid for damage or leaks. If a leak is present, a Diagnostic Trouble Code (DTC) may be set  .
5. Connect electrical connector to pump.
6. Install plastic shield in front of left-rear tire.
7. Install left-rear tire.
