*No Response From Amp (Amplifier): Notes

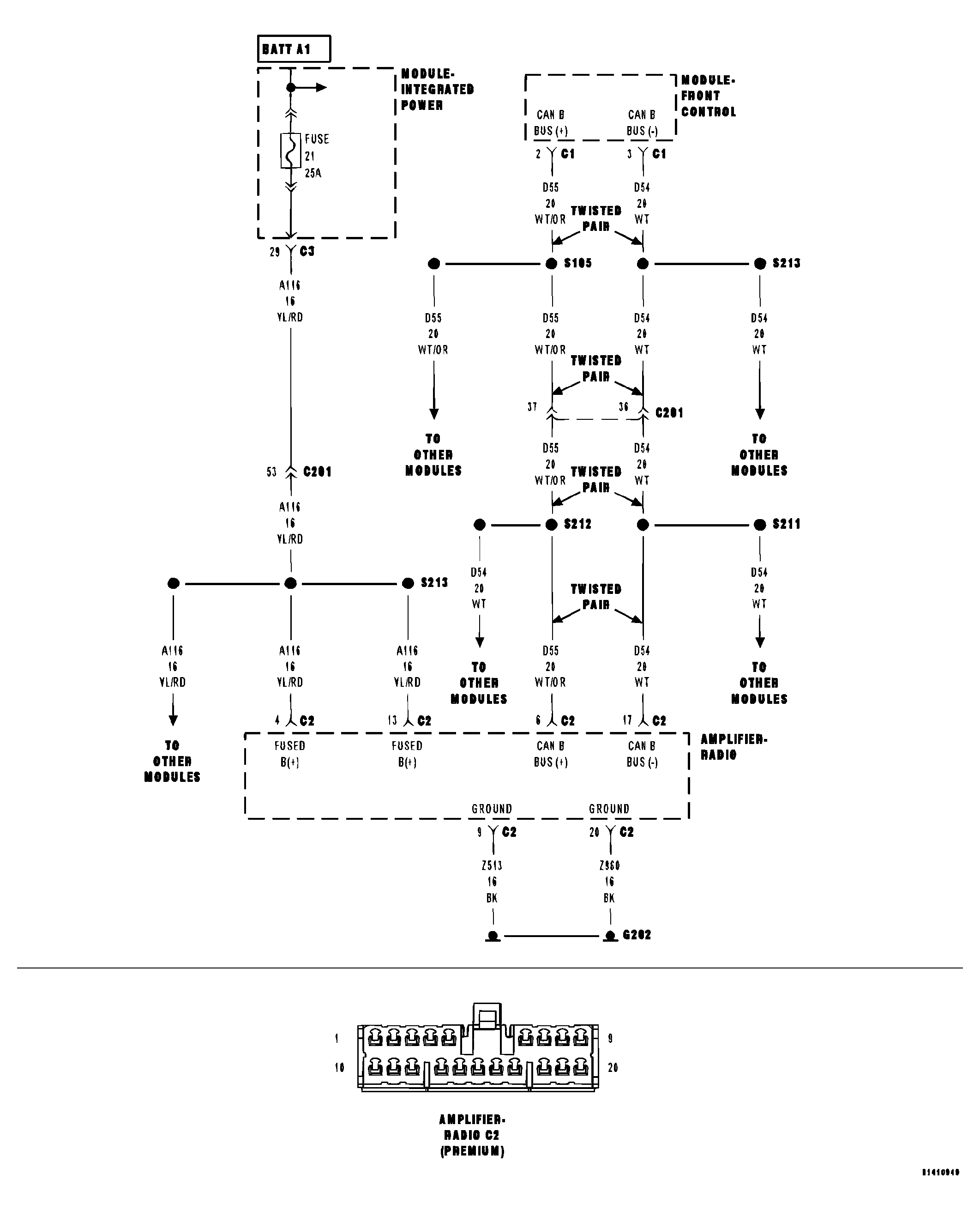

Fig 1: No Response From Amp (Amplifier) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A116) FUSED B (+) CIRCUIT OPEN OR SHORTED

(Z513) OR (Z980) GROUND CIRCUIT OPEN

(D55) AND (D54) CAN B BUS CIRCUITS OPEN AMPLIFIER
