Module - Fuel Pump: Removal

WARNING: The Fuel system is under a constant pressure (even with the engine off). Before servicing the fuel pump module, the fuel system pressure must be released.

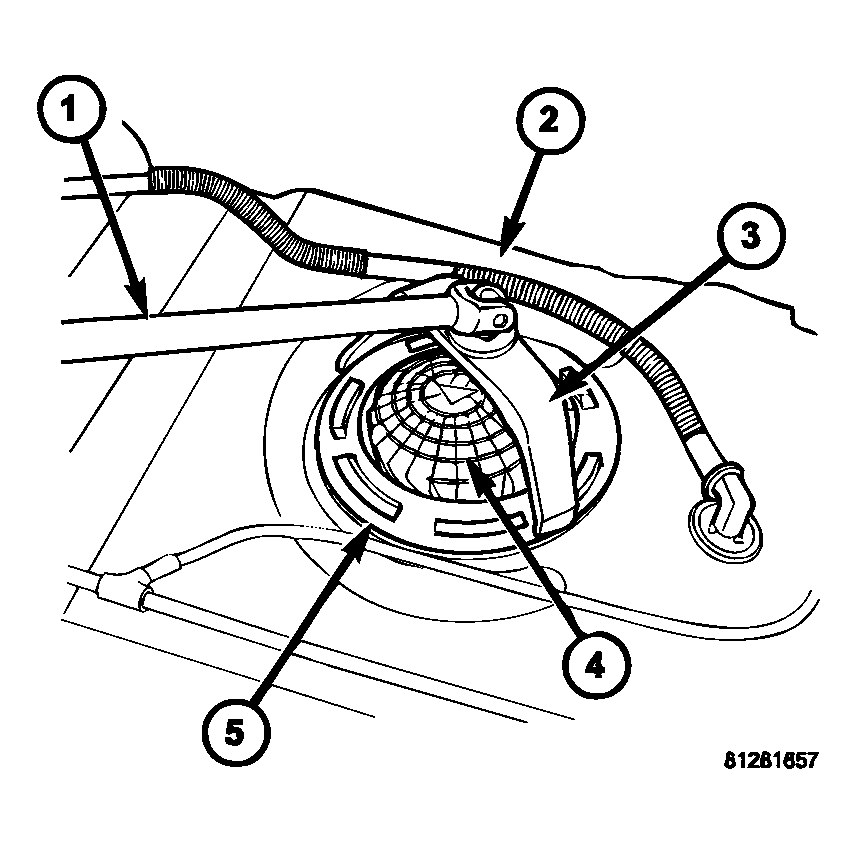

Fig 1: Installing Drive Breaker Bar To Locking Remover/Installer 9340
G04283716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Drain and remove fuel tank. (Refer to REMOVAL ).
  2. Note rotational position of module before attempting removal. An indexing arrow is located on top of module for this purpose.
  3. Position Locking Remover/Installer 9340 (3) into notches on outside edge of lockring (5).
  4. Install 1/2 inch drive breaker bar (1) to Locking Remover/Installer 9340 (3).
  5. Rotate breaker bar counter-clockwise to remove lockring.
  6. Remove lockring. The module will spring up slightly when lockring is removed.
  7. Remove module from fuel tank. Be careful not to bend float arm while removing.
