Overhead Console - Service Information: Description: Notes

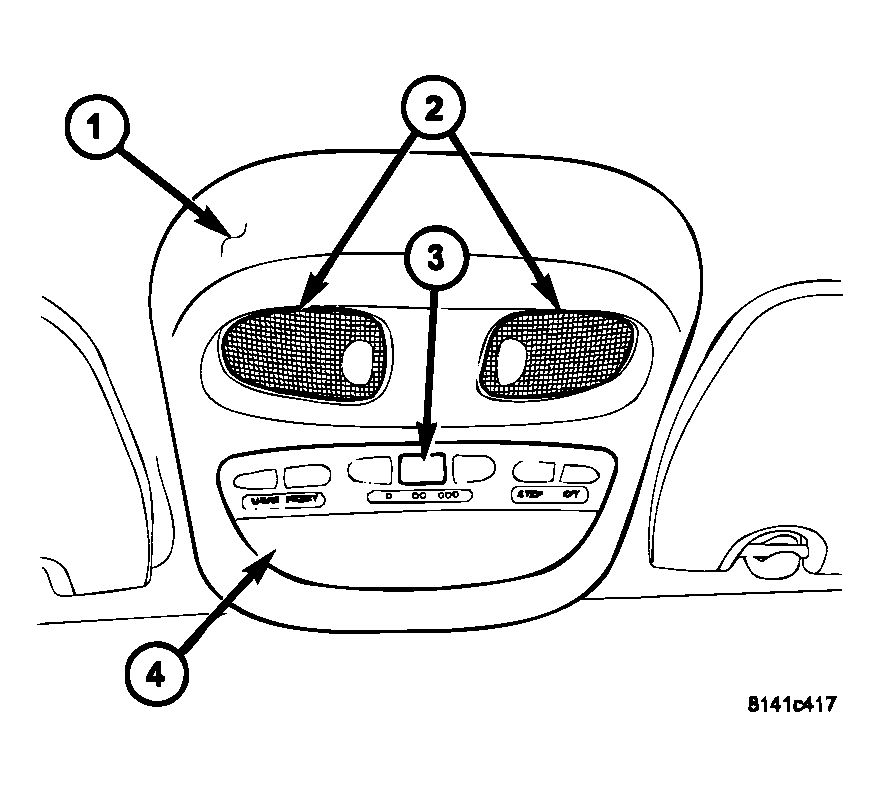

An overhead console (1) is available on this vehicle and includes the following components:
- Front map/reading lamps (2)
- A blue-green vacuum-fluorescent display screen (4) - if equipped with Compass Mini-Trip Computer
- Universal transmitter (3) - if equipped
- Electronic Overhead Module (EOM)
The overhead console assembly is mounted by two snap clips and screws securing it to a molded plastic retainer bracket located above the headliner. The EOM is accessed by removing the overhead console from the bracket and pulling it away from the headliner.
