Module - Electronic Overhead: Removal

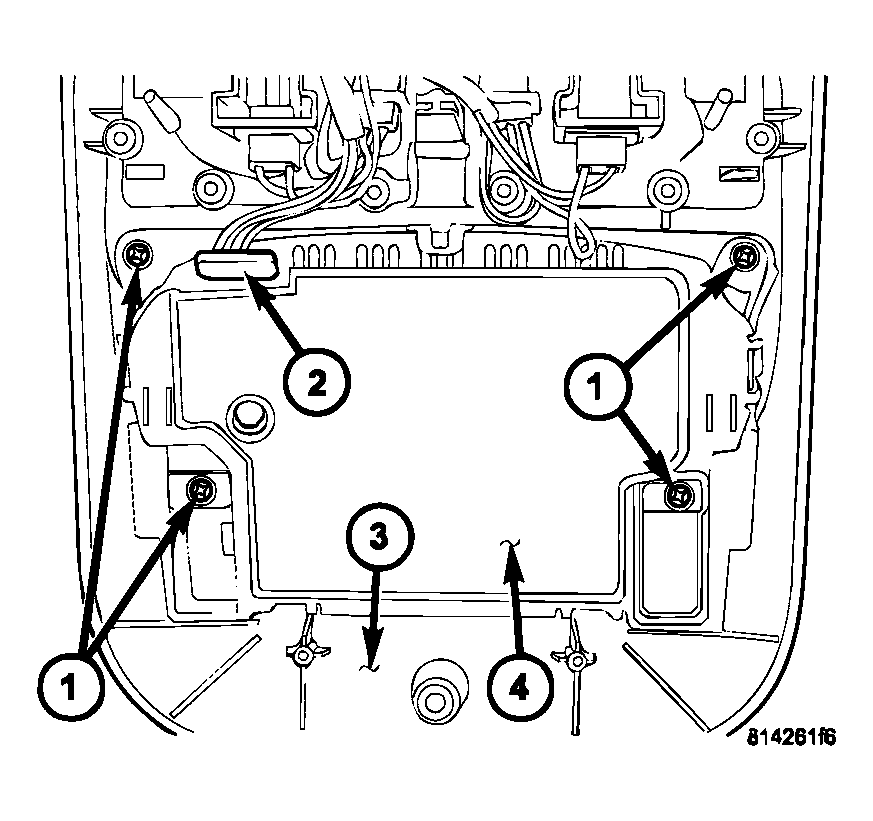

Fig 1: Removing Screws

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console (3) from the headliner (Refer to REMOVAL ).
3. Remove the screws (1) that secure the Electronic Overhead Module (EOM) (4) to the overhead console housing (3).
4. Disconnect the overhead console wire harness connector from the EOM connector receptacle (2).
5. Remove the compass EOM (4) from the overhead console housing (3).
