Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| S100 | At left side of engine compartment. See Figure . |
| S101 | At left side of engine compartment. See Figure . |
| S102 | At left side of engine compartment. See Figure . |
| S103 | At left side of engine compartment. See Figure . |
| S104 | At left side of engine compartment. See Figure . |
| S105 | At left side of engine compartment. See Figure . |
| S106 | At left rear of engine compartment. See Figure . |
| S107 | At left rear of engine compartment. See Figure . |
| S108 | At left rear of engine compartment. See Figure . |
| S109 | At left side of engine compartment. See Figure . |
| S110 | At left side of engine compartment. See Figure . |
| S111 | At left rear of engine compartment. See Figure . |
| S112 | In engine compartment. |
| S113 | In engine compartment. |
| S114 | At right side of engine compartment. See Figure . |
| S115 | At right side of engine compartment. See Figure . |
| S116 | At right side of engine compartment. See Figure . |

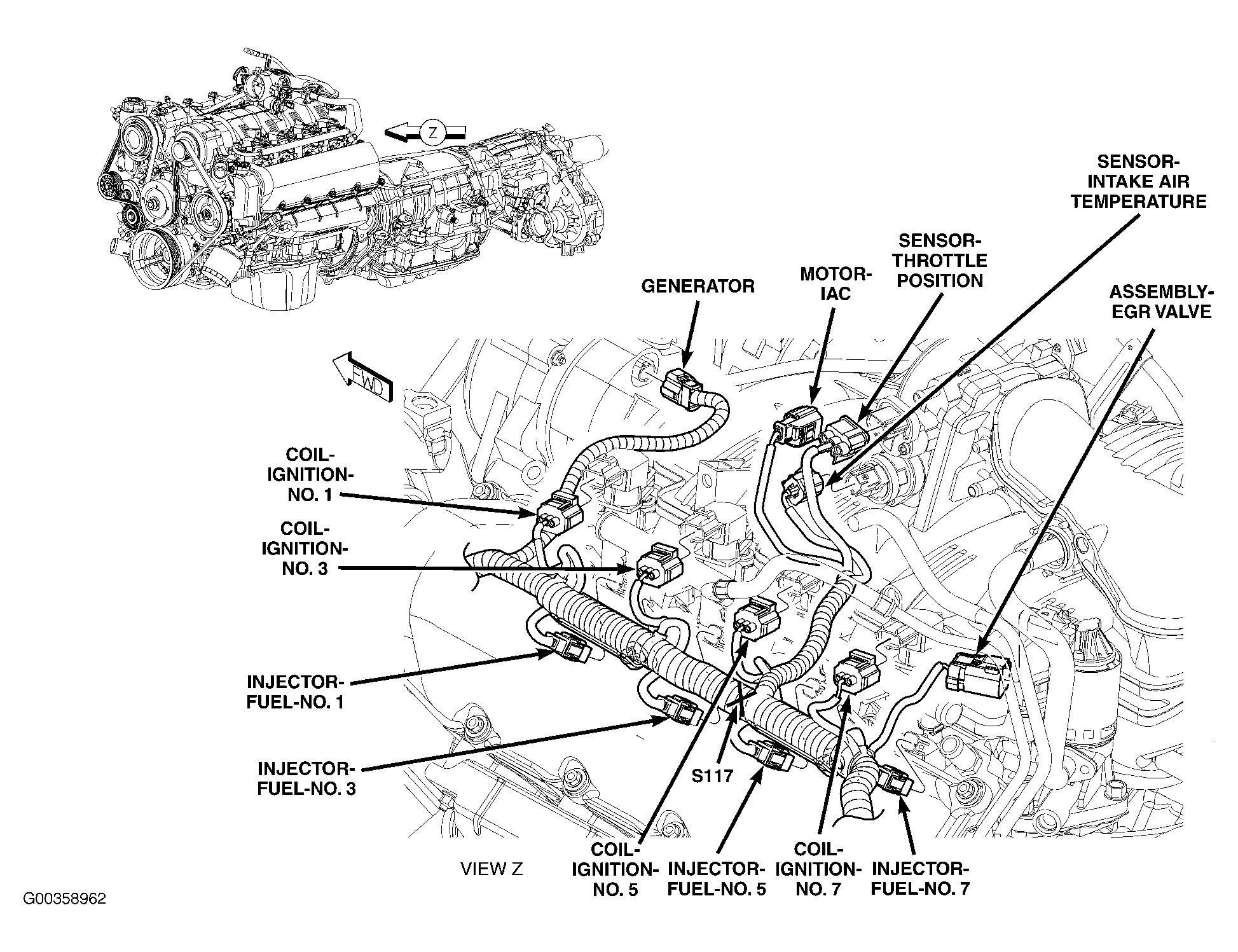

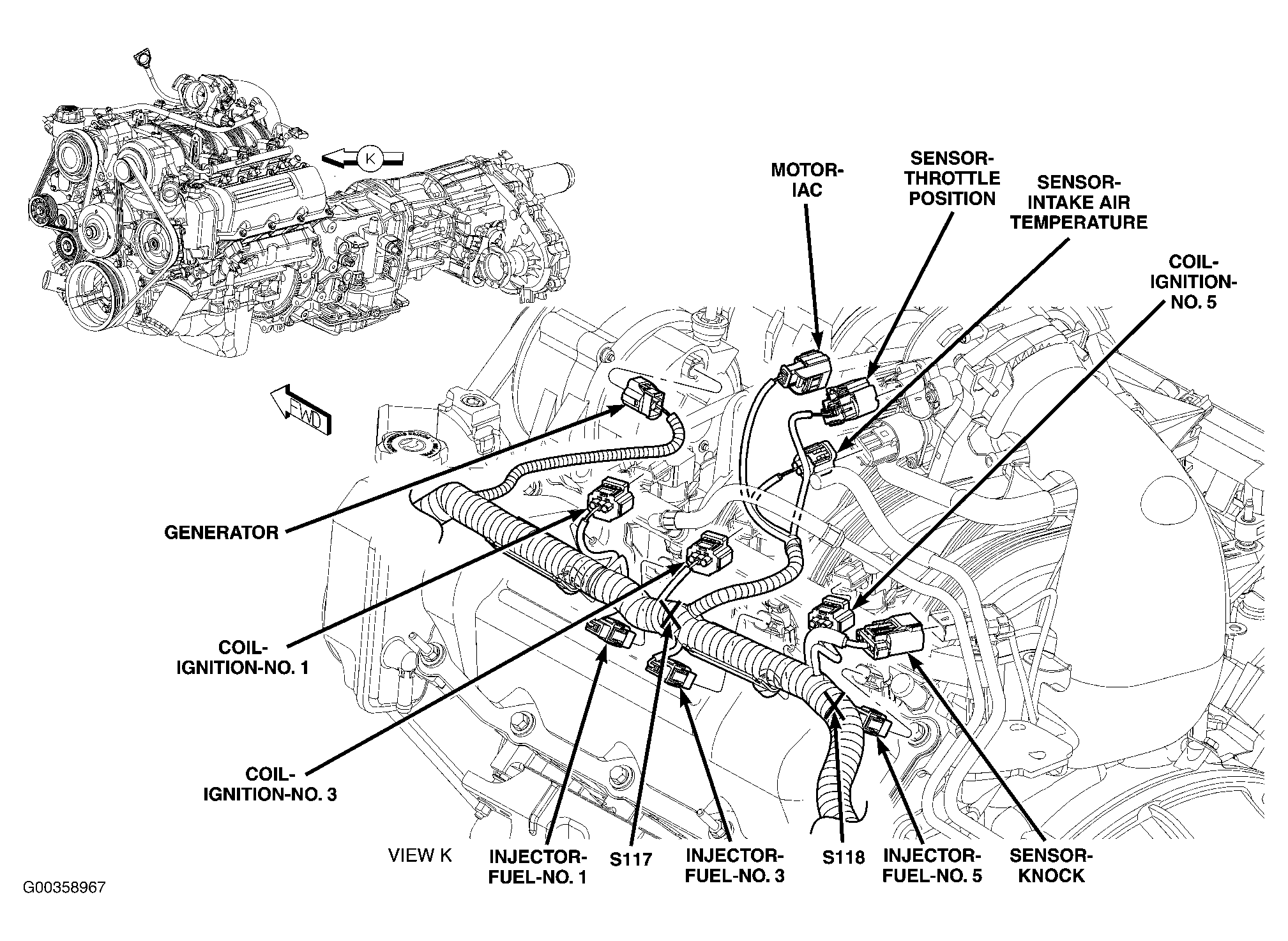

| S117 (3.7L) | At left side of engine. See Figure . |
| S117 (4.7L) | At left side of engine. See Figure . |

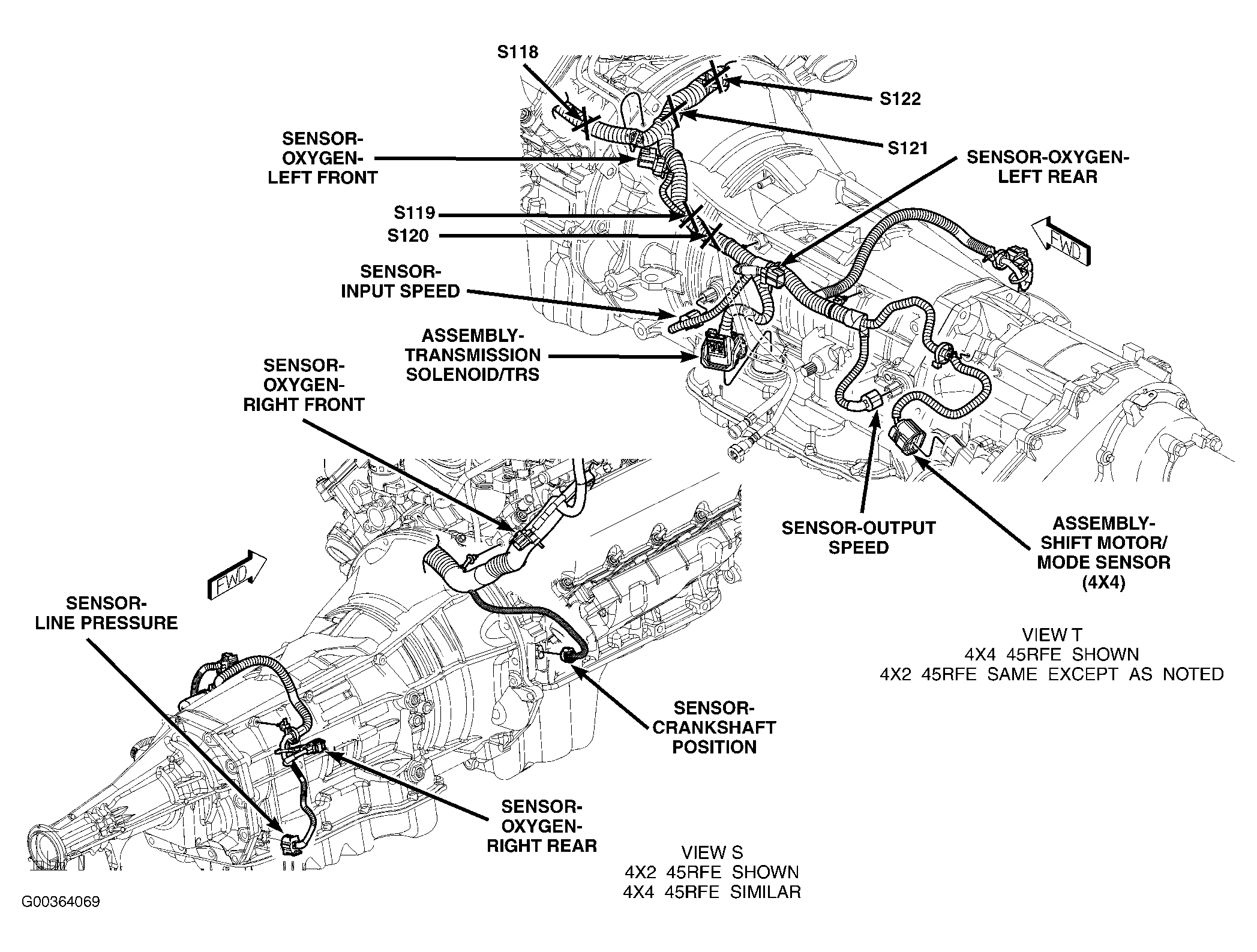

| S118 (3.7L) | Near rear of engine. See Figure . |
| S118 (4.7L) | Near rear of engine. See Figure . |
| S119 | Near top of transmission. See Figure . |
| S120 | Near top of transmission. See Figure . |

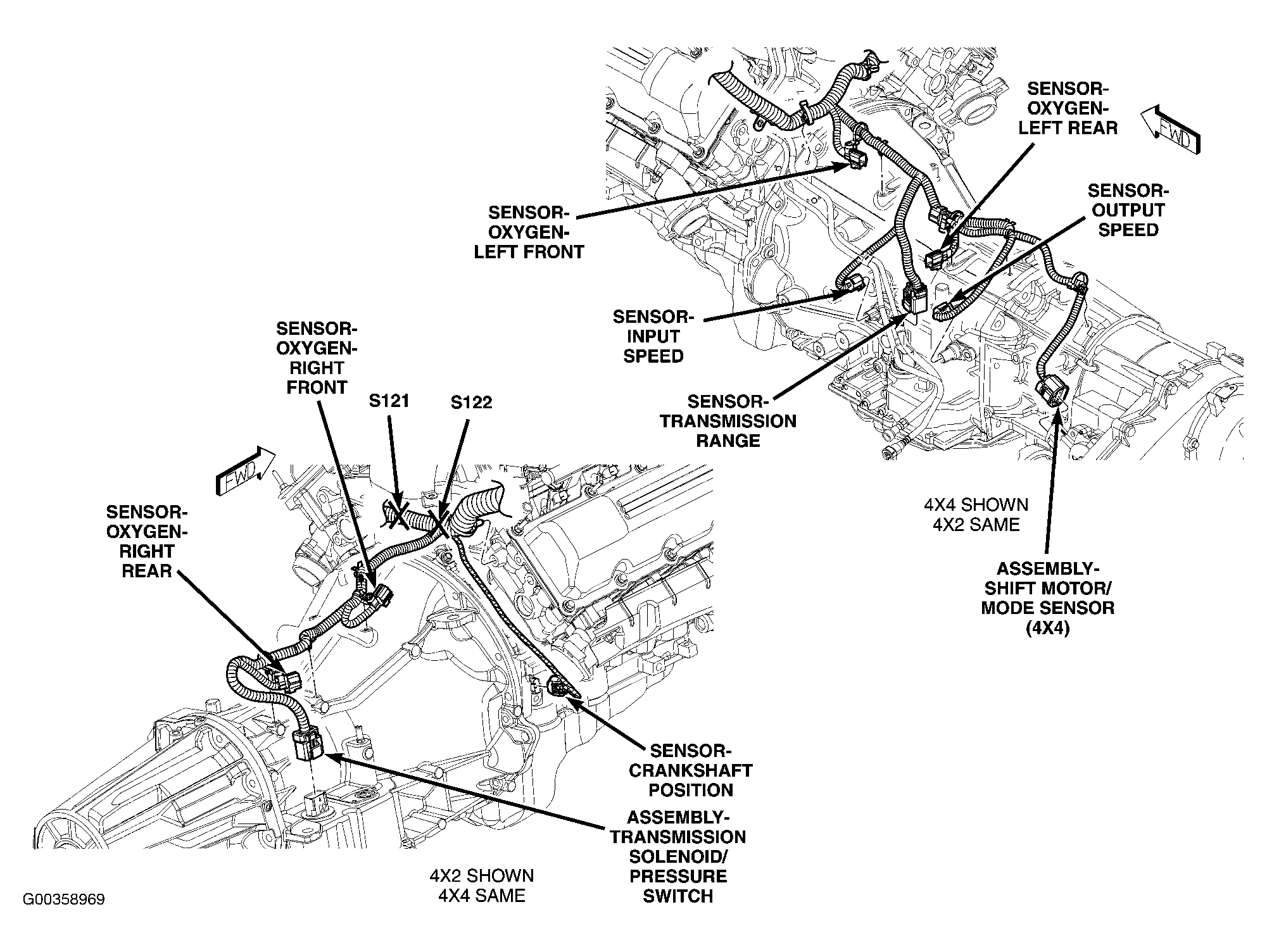

| S121 (3.7L) | Near top of transmission. See Figure . |
| S121 (4.7L) | Near top of transmission. See Figure . |
| S122 (3.7L) | Near top of transmission. See Figure . |
| S122 (4.7L) | Near top of transmission. See Figure . |

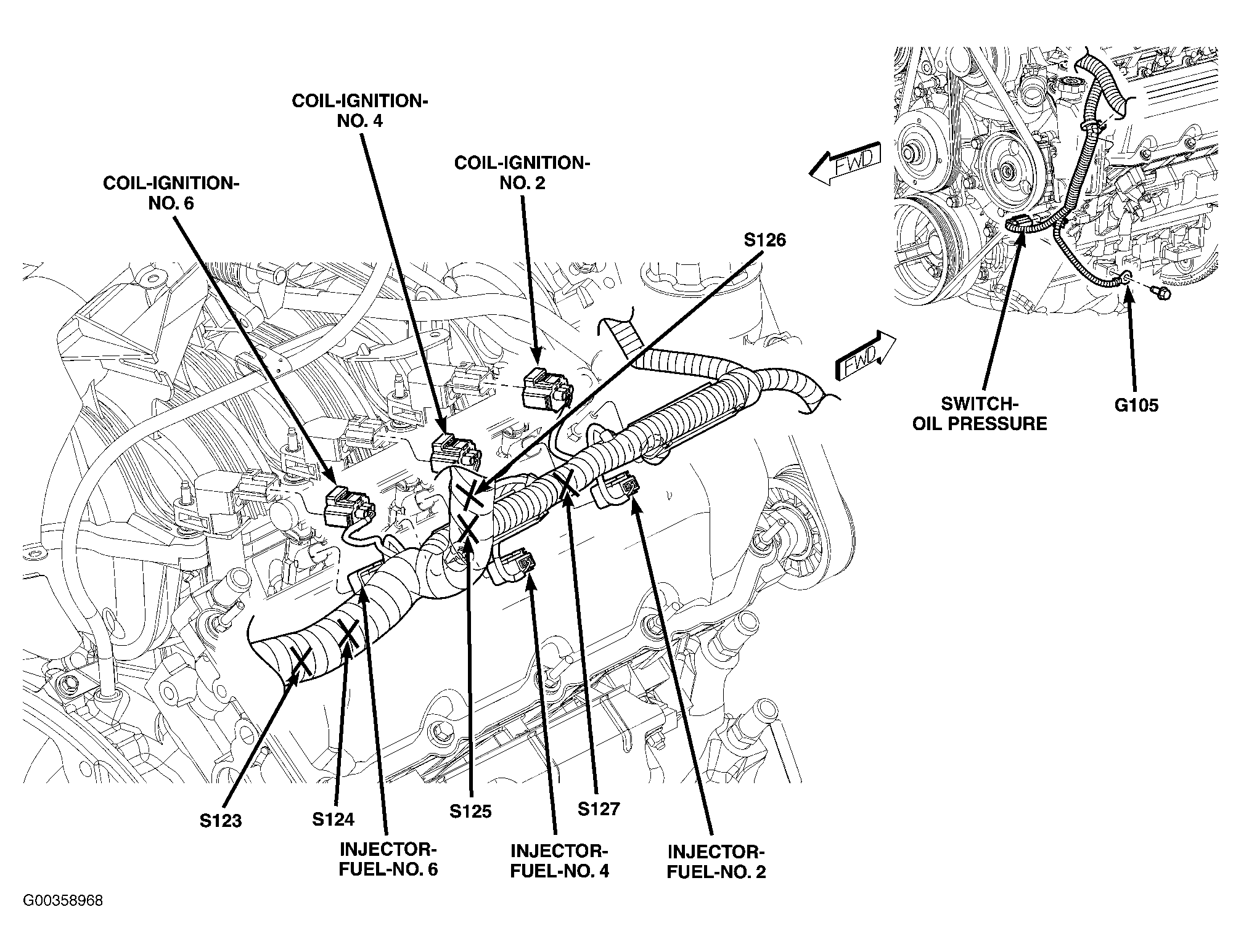

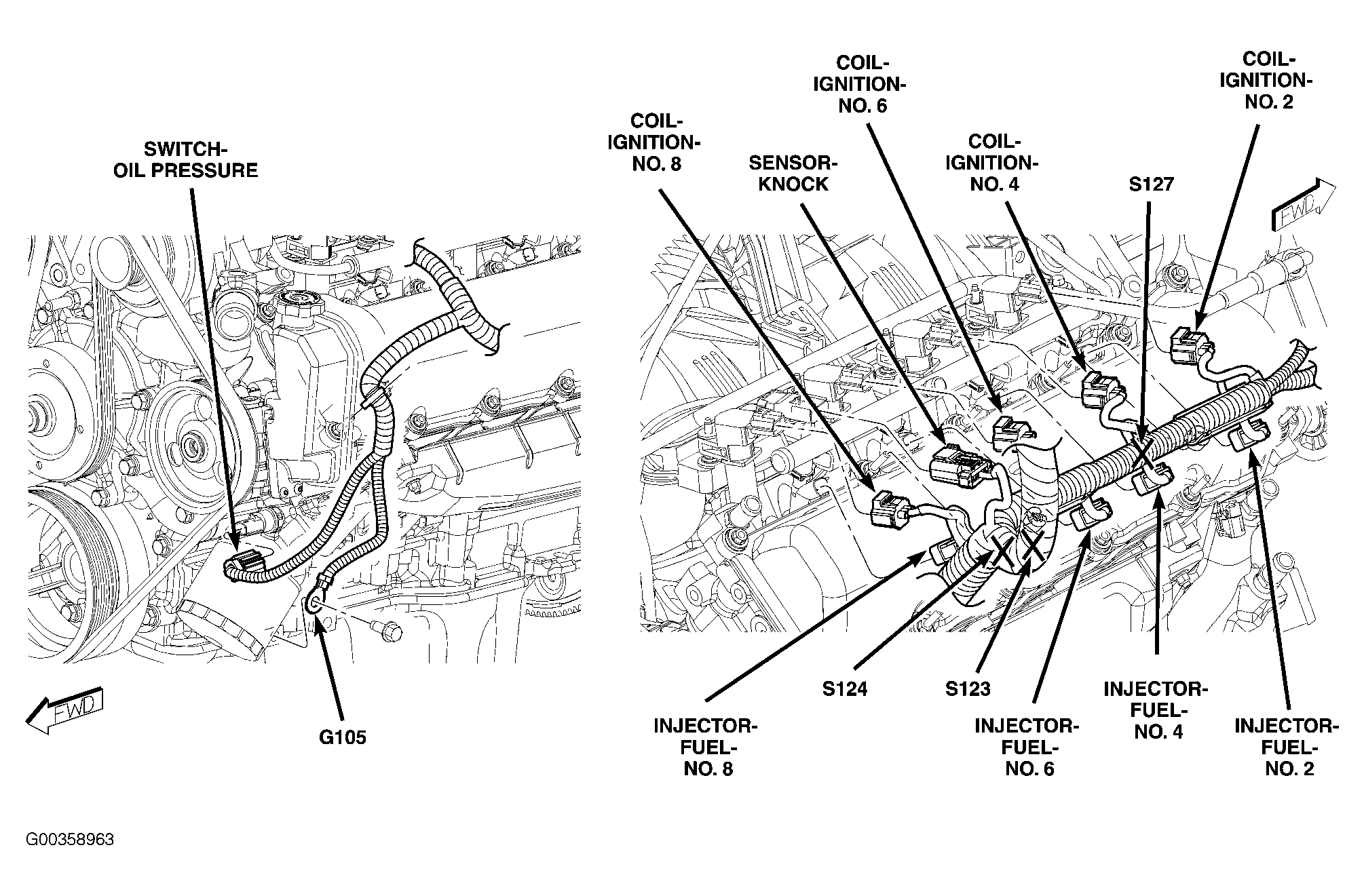

| S123 (3.7L) | At top right of engine. See Figure . |
| S123 (4.7L) | At top right of engine. See Figure . |
| S124 (3.7L) | At top right of engine. See Figure . |
| S124 (4.7L) | At top right of engine. See Figure . |
| S125 | At right rear of engine compartment. See Figure . |
| S126 | At right rear of engine compartment. See Figure . |
| S127 (3.7L) | At top right of engine. See Figure . |
| S127 (4.7L) | At top right of engine. See Figure . |

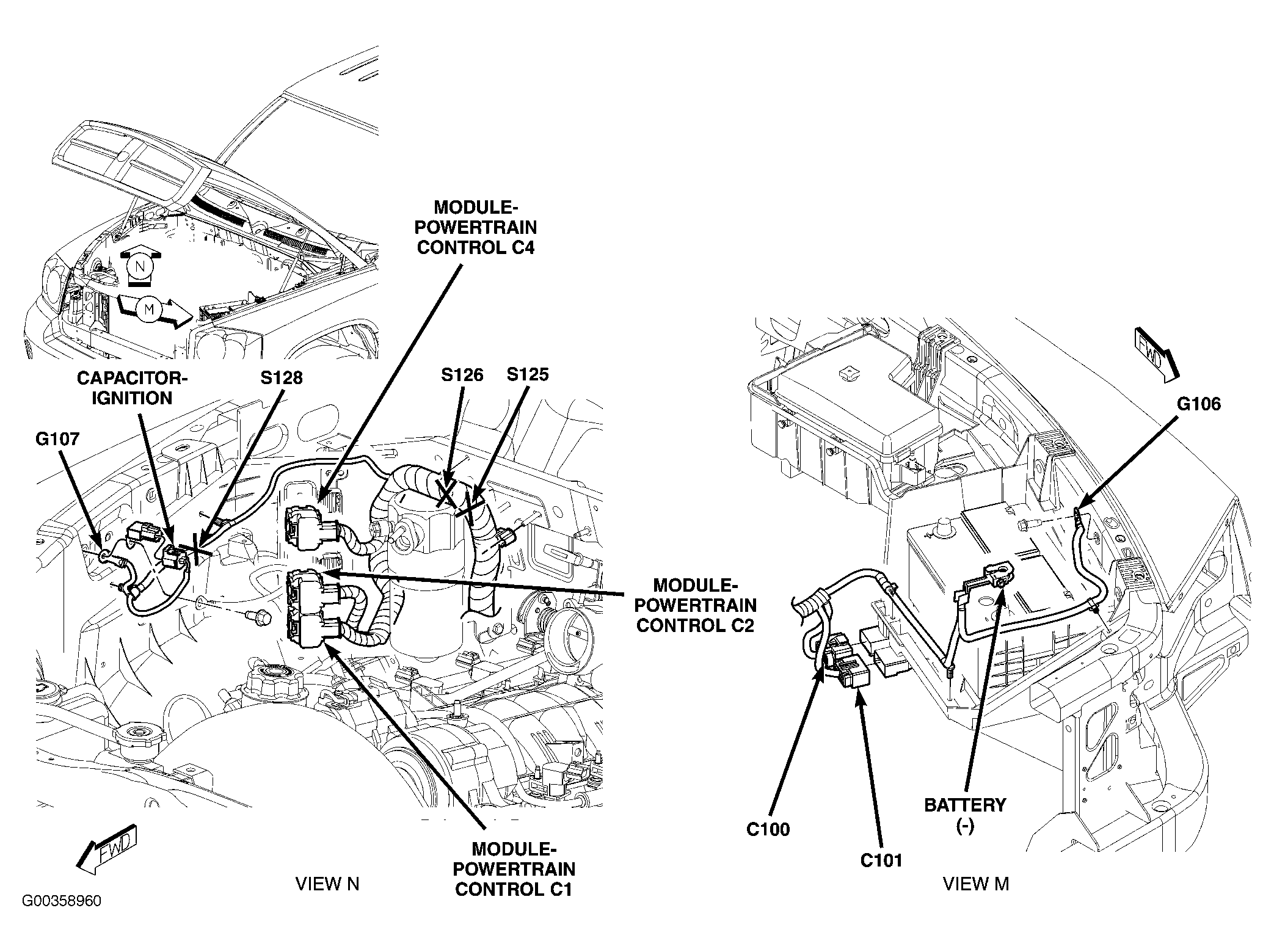

| S128 | At right side of engine compartment. See Figure . |

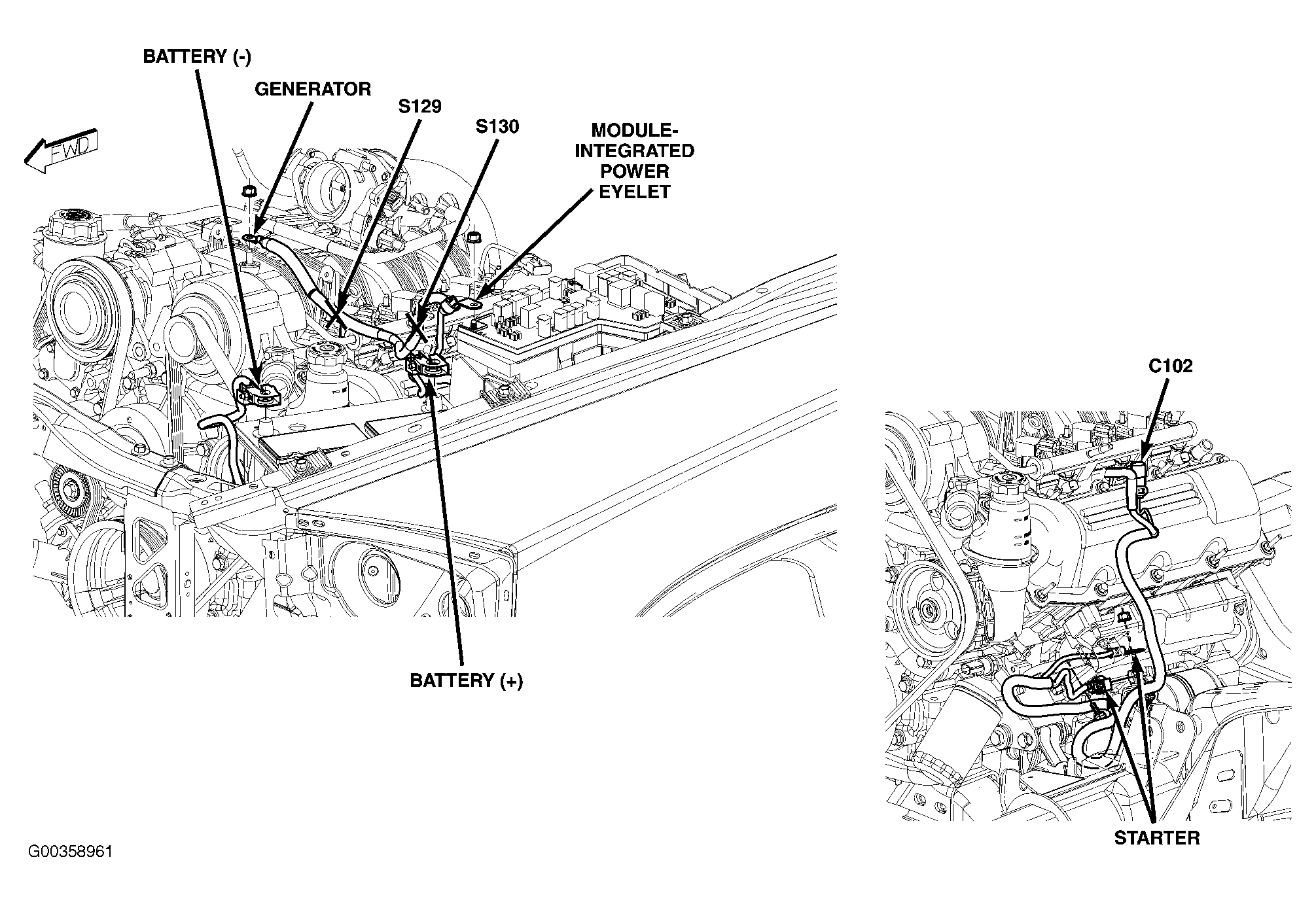

| S129 | At top left of engine. See Figure . |
| S130 | At top left of engine. See Figure . |

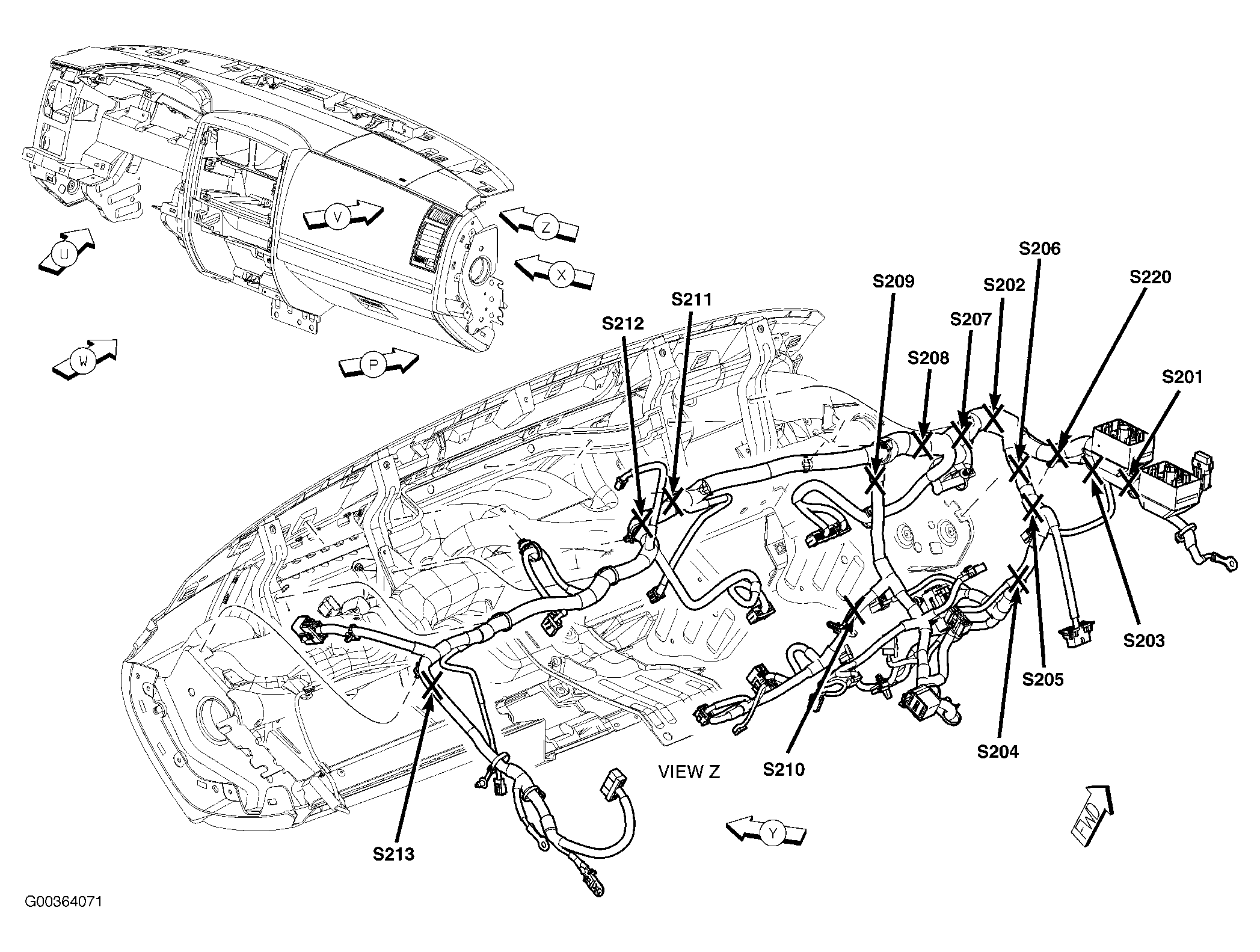

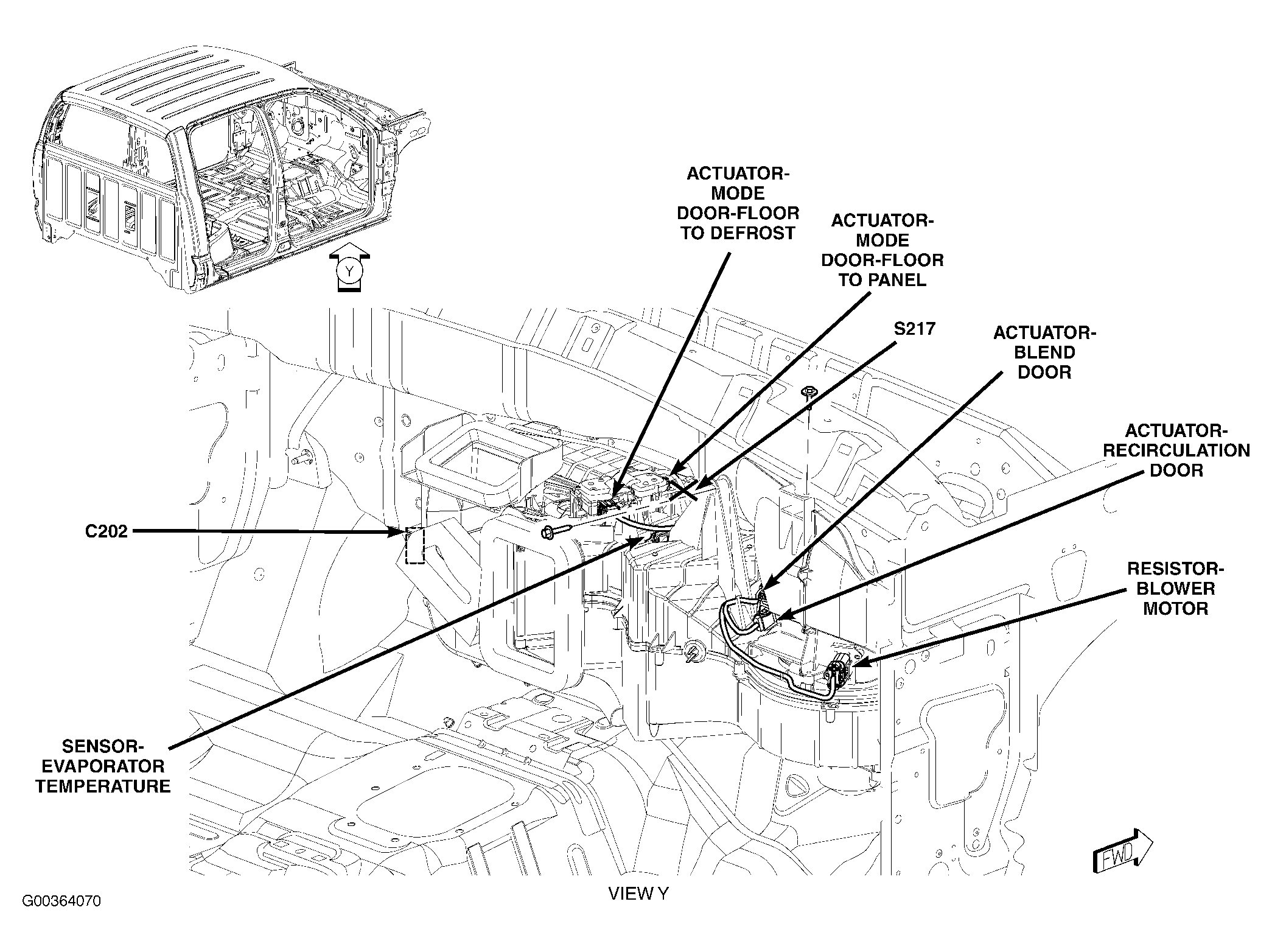

| S200 | Behind lower left side of dash. See Figure . |
| S201 | Behind left side of dash. See Figure . |
| S202 | Behind left side of dash. See Figure . |
| S203 | Behind left side of dash. See Figure . |
| S204 | Behind left side of dash. See Figure . |
| S205 | Behind left side of dash. See Figure . |
| S206 | Behind left side of dash. See Figure . |
| S207 | Behind left side of dash. See Figure . |
| S208 | Behind left side of dash. See Figure . |
| S209 | Behind left side of dash. See Figure . |
| S210 | Behind left side of dash. See Figure . |
| S211 | Behind center of dash. See Figure . |
| S212 | Behind center of dash. See Figure . |
| S213 | Behind right side of dash. See Figure . |
| S214 | At headliner. |
| S215 | At headliner. |
| S216 | At headliner. |
| S300 | Behind left kick panel. See Figure . |
| S301 | Behind left kick panel. See Figure . |
| S302 | Behind left kick panel. See Figure . |
| S303 | Behind left kick panel. See Figure . |
| S304 | Behind left kick panel. See Figure . |
| S305 | Behind left kick panel. See Figure . |
| S306 (Double Cab) | At center of body. See Figure . |
| S306 (Extended Cab) | At center of body. See Figure . |
| S307 (Double Cab) | At center of body. See Figure . |
| S307 (Extended Cab) | At center of body. See Figure . |
| S308 (Double Cab) | Under driver seat. |
| S308 (Extended Cab) | Under driver seat. See Figure . |
| S309 (Double Cab) | Under driver seat. |
| S309 (Extended Cab) | Under driver seat. See Figure . |
| S310 (Double Cab) | Under driver seat. See Figure . |
| S310 (Extended Cab) | Under driver seat. See Figure . |
| S311 | At left front of body. See Figure . |

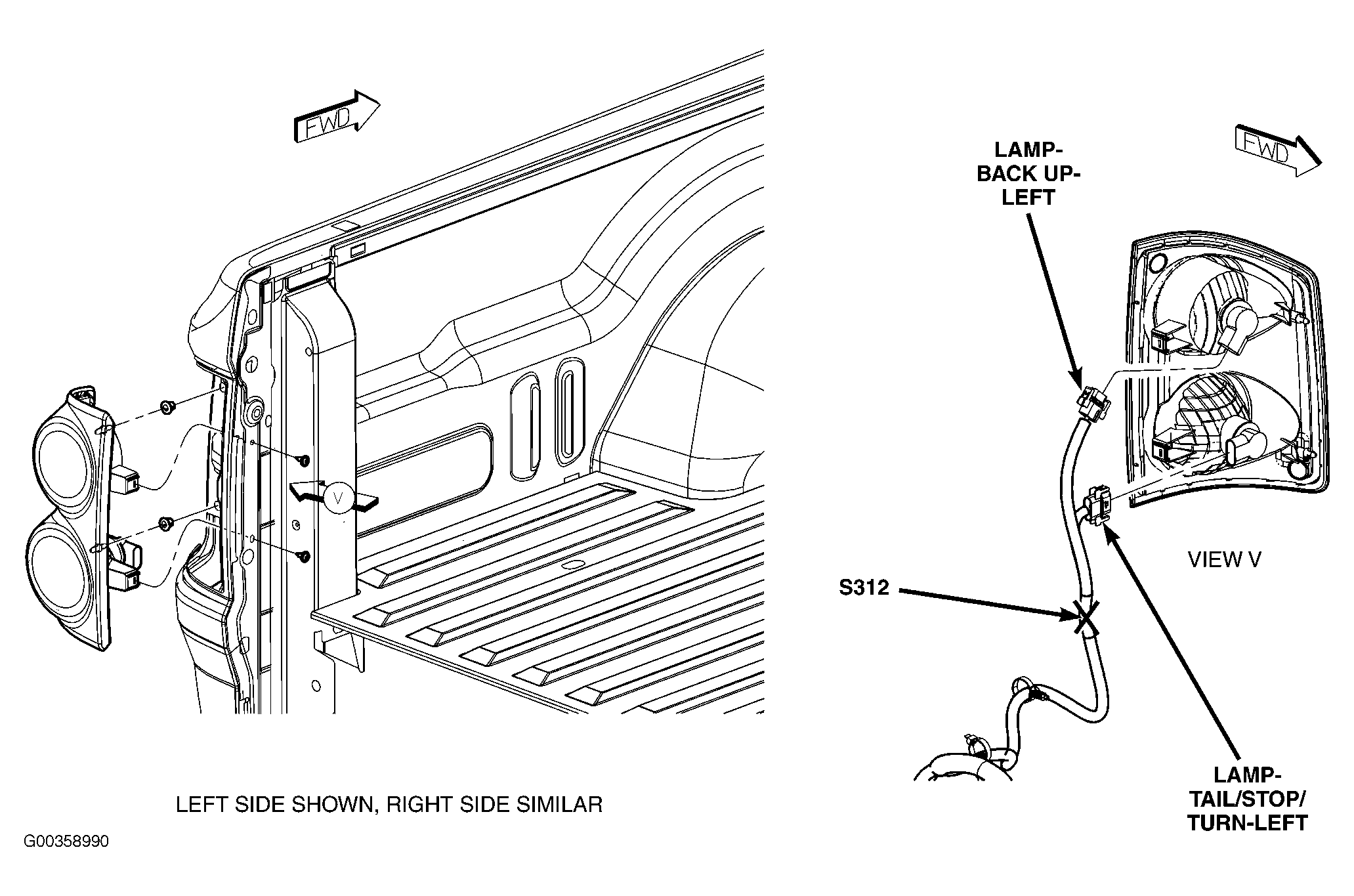

| S312 | In breakout for left rear lamps. See Figure . |

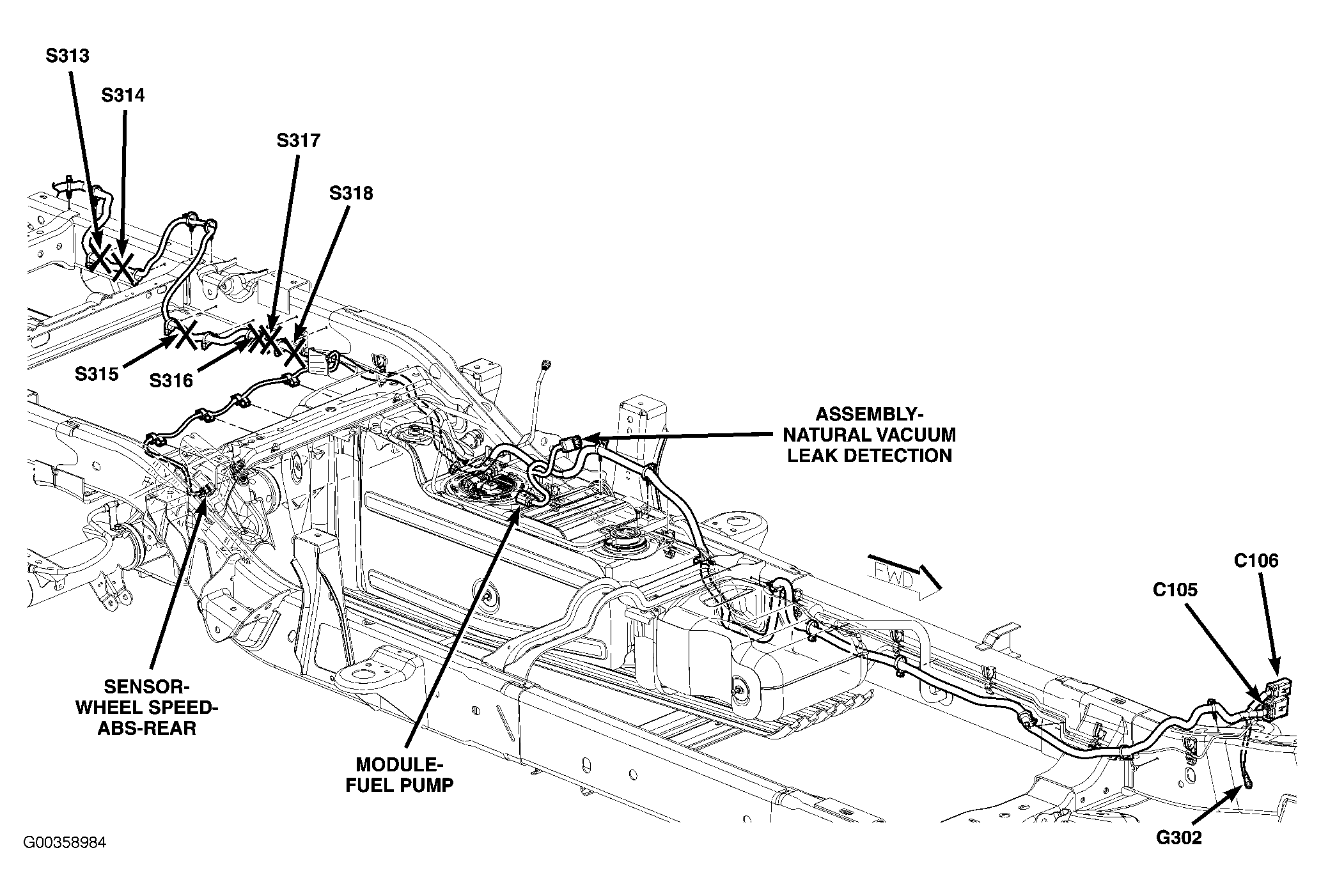

| S313 | At left rear of chassis. See Figure . |
| S314 | At left rear of chassis. See Figure . |
| S315 | At left rear of chassis. See Figure . |
| S316 | At left rear of chassis. See Figure . |
| S317 | At left rear of chassis. See Figure . |
| S318 | At left rear of chassis. See Figure . |
| S319 | Left floor pan. See Figure . |
| S320 | On chassis. |

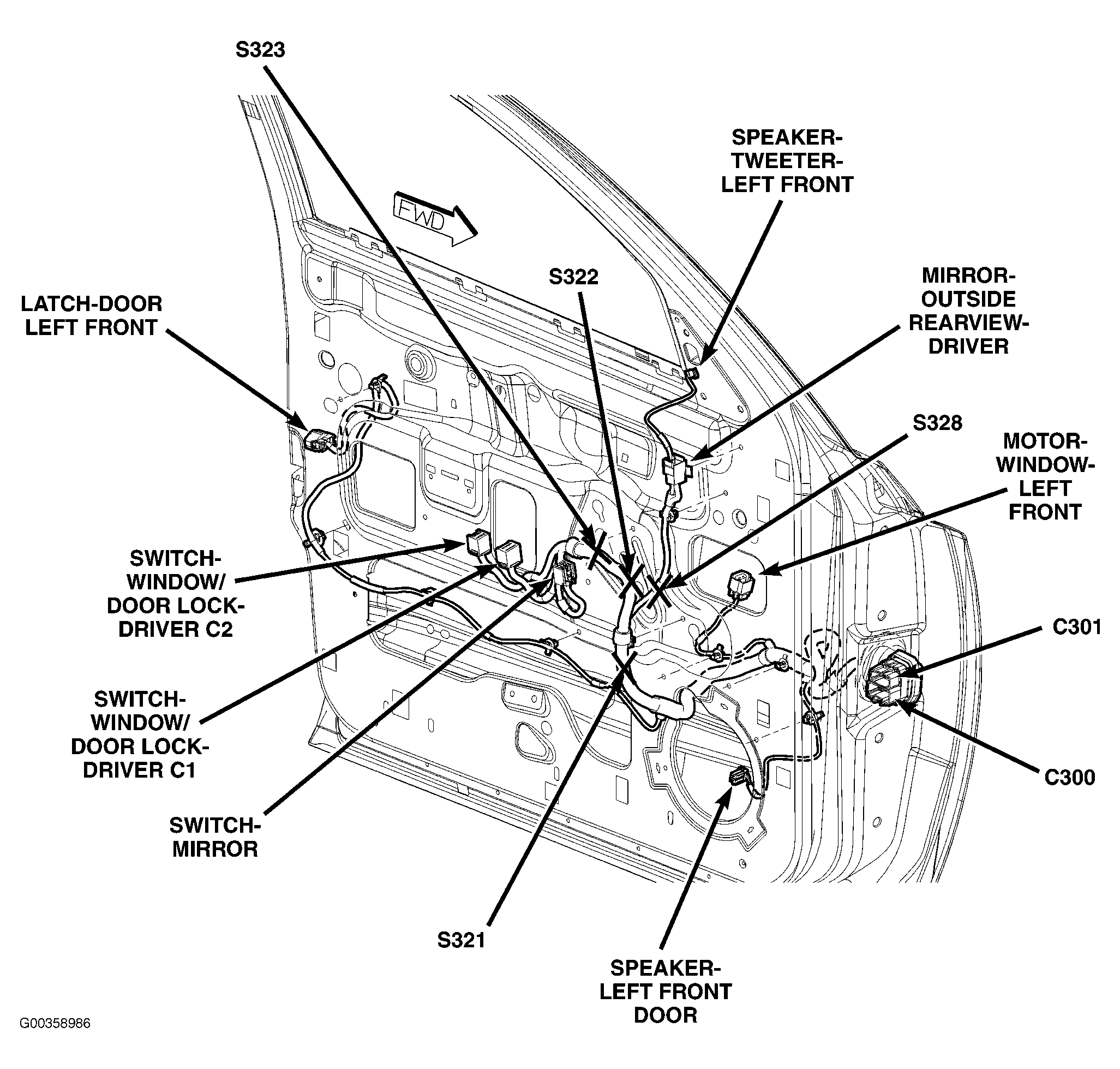

| S321 | In left front door. See Figure . |
| S322 | In left front door. See Figure . |
| S323 | In left front door. See Figure . |

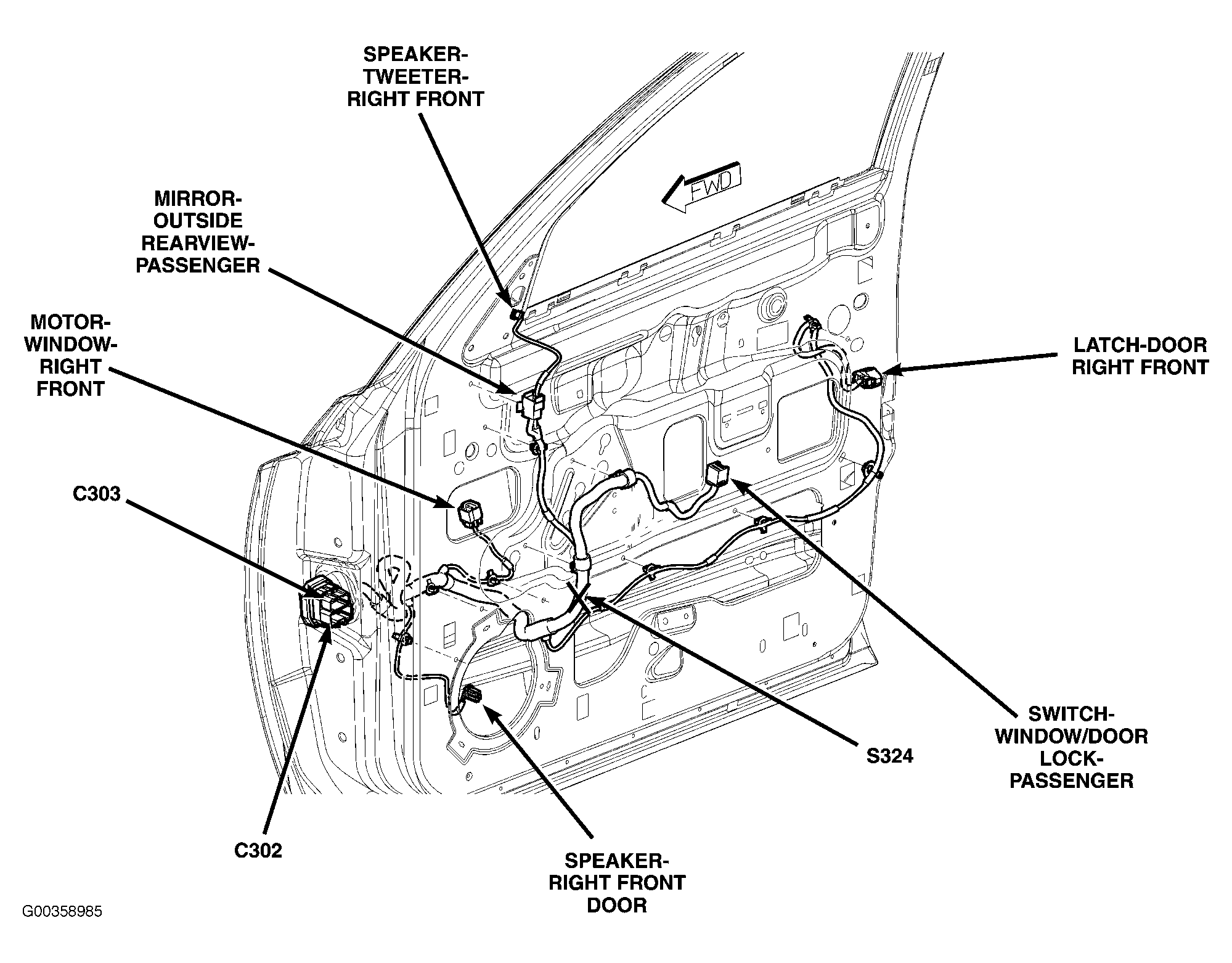

| S324 | In right front door. See Figure . |
| S327 | Left floor pan. See Figure . |
| S328 | In left front door. See Figure . |
