Circuit Protection Devices
Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
Component
Location

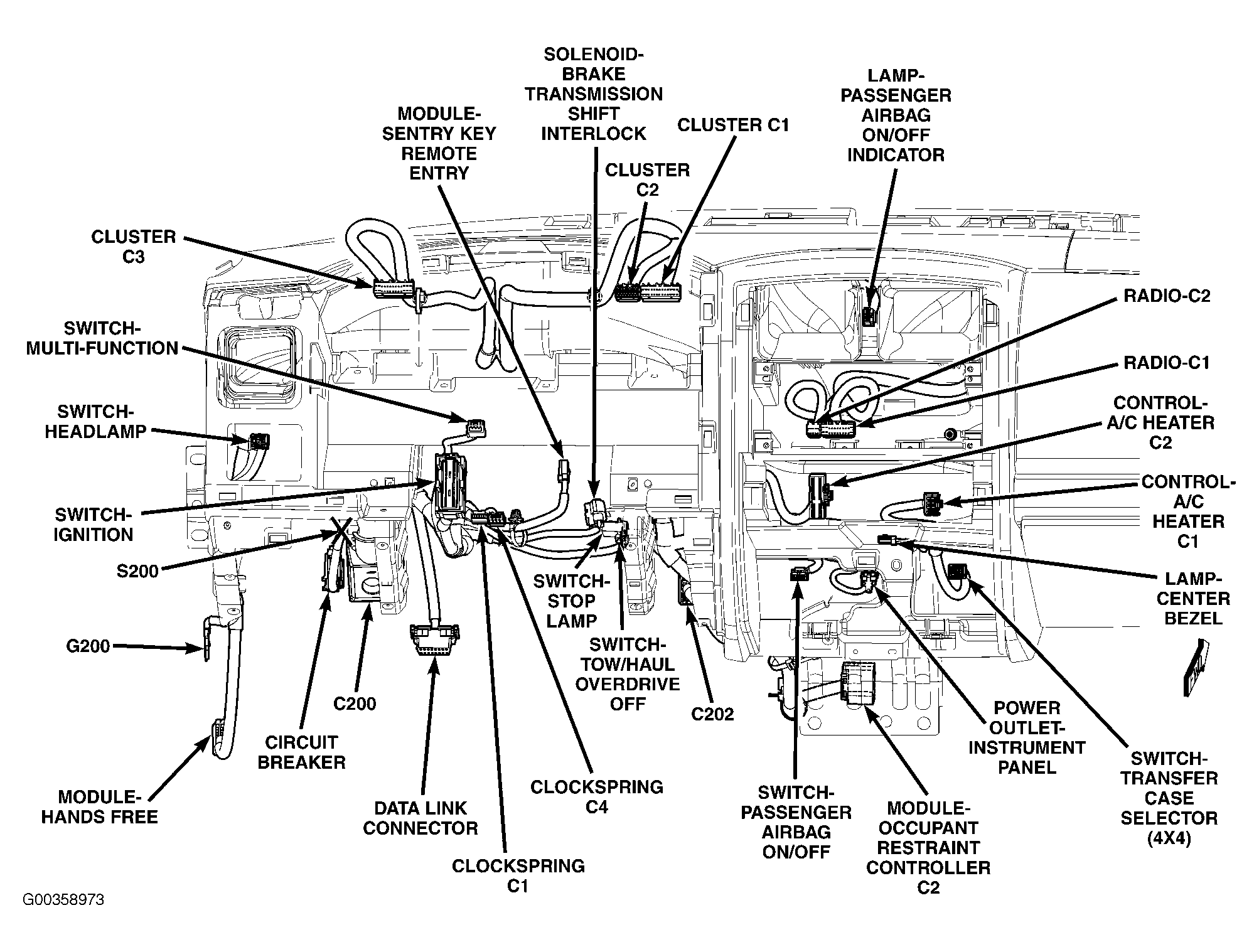

Circuit Breaker
At junction block. See
Figure
.

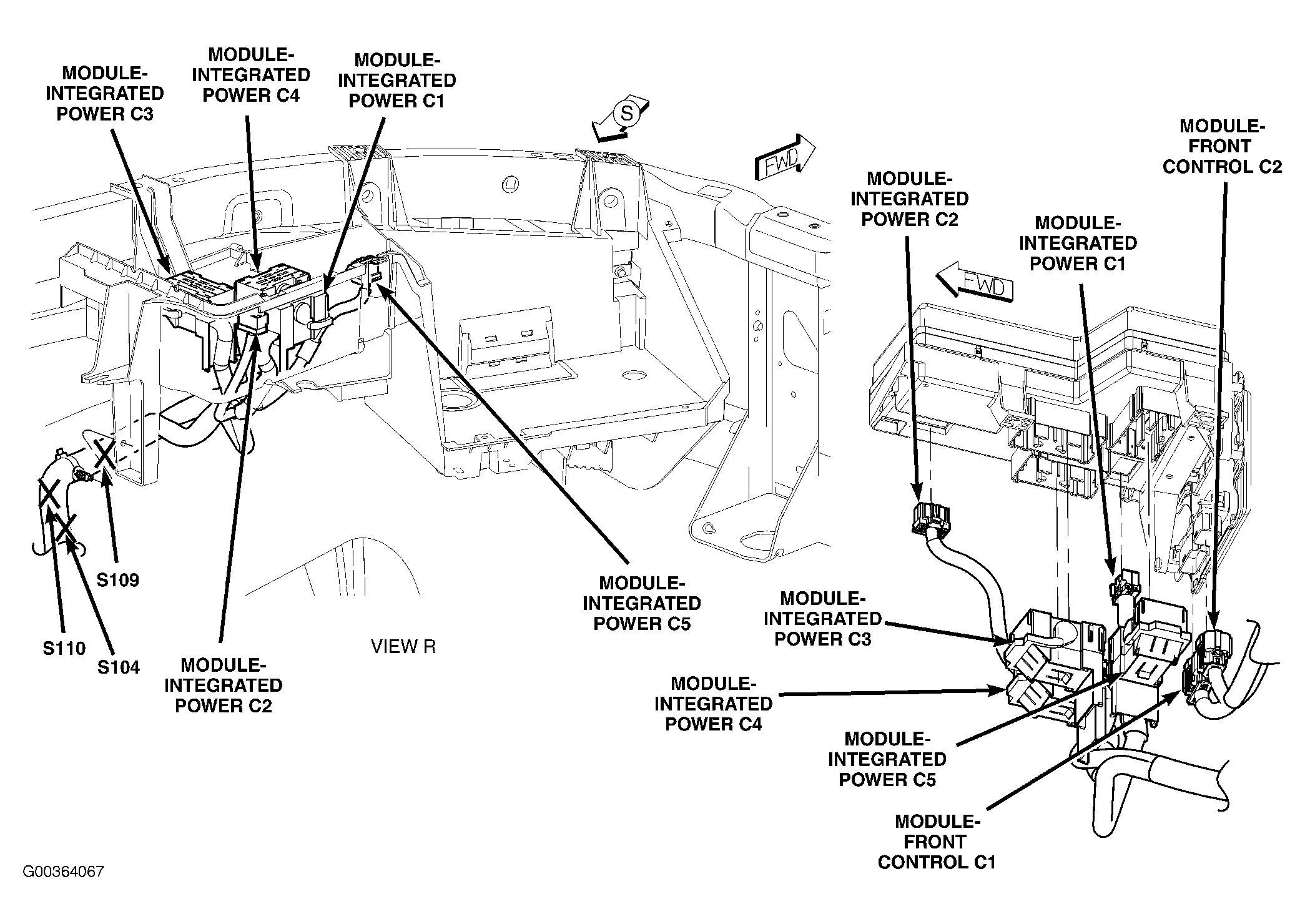

Integrated Power Module
At left side of engine compartment. See
Figure
.
