Switch - Window/Door Lock: Installation

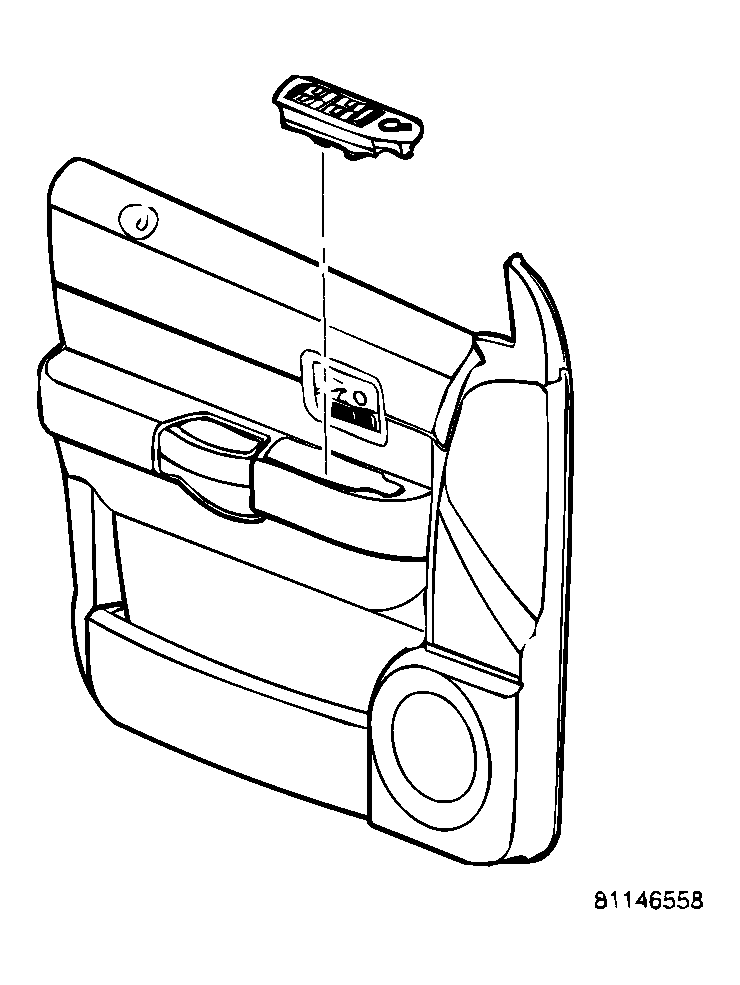

Fig 1: Installing Window/Door Lock Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Connect electrical harness connectors to switch.
2. Insert front end of switch into door trim panel opening. Press into place.
3. Connect battery negative cable.
