Switch - Window/Door Lock: Description

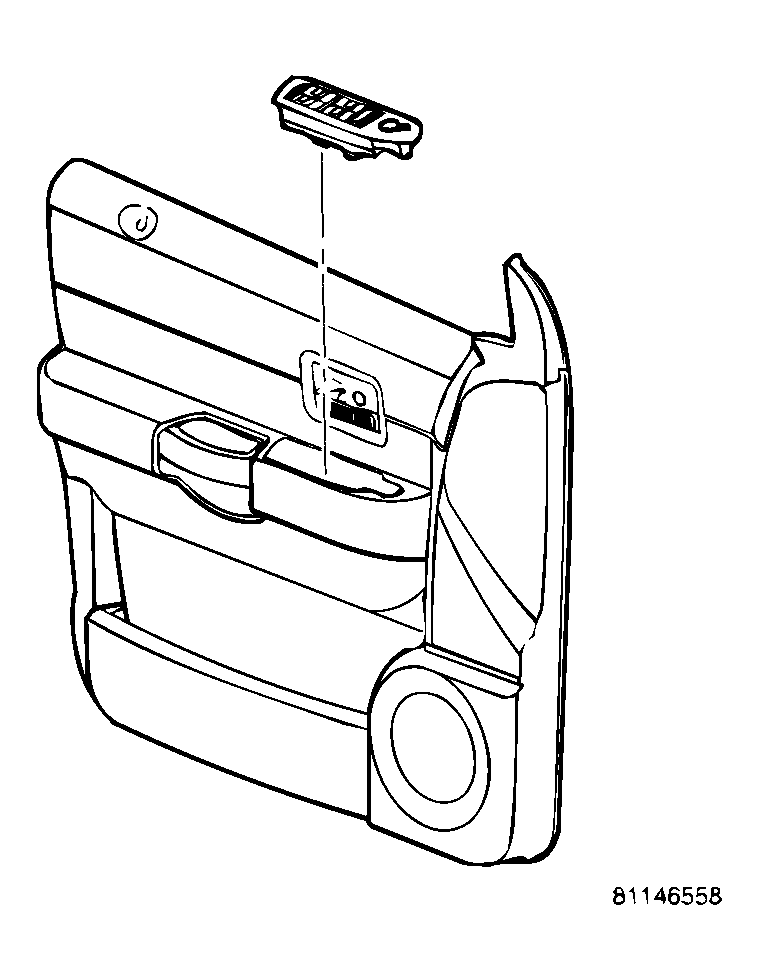

A window/lock switch located in each front door trim panel. The driver's side window/lock switch includes the following:
- Lock Switch - A two-way, momentary, resistor multiplexed switch to control the power lock system.
- Window Lockout Switch - A two-way, latching, push-button switch allows the vehicle operator to lock out the window switches on each passenger door so that the passenger door power windows may be operated only from the drivers door switch.
- Window Switches - A two-way, momentary window switch for the driver side front door also has a second detent in the Down direction and internal circuitry to provide an Auto-Down feature for the driver side front door window. In addition to the window switch for its own door, the window/lock switch houses individual switches for each passenger door window.
The passenger side window/lock switch includes the following:
- Lock Switch - A two-way, momentary, resistor multiplexed switch to control the lock system.
- Window Switch - A two-way, momentary window switch for the passenger side front door.
