Motor-Sunroof - W/Control Unit - Removal

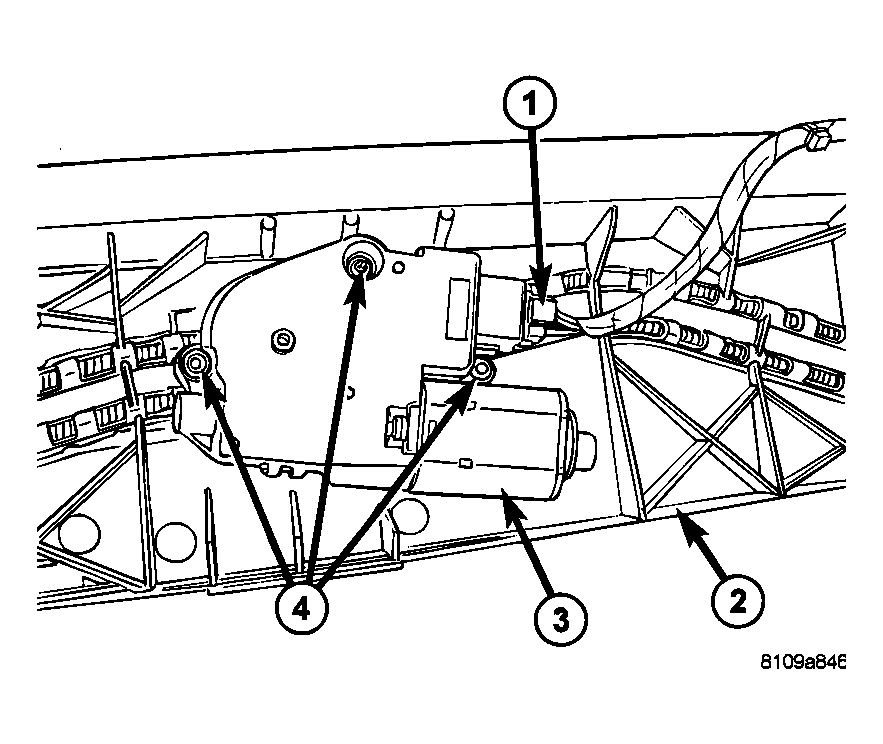

Fig 1: Removing Motor Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Remove headliner. (Refer to REMOVAL )
2. Disconnect the electrical connector (1).
3. Remove three motor assembly attaching screws (4) from bottom side of motor assembly (3) and remove motor assembly from the motor bracket (2).
