Home >> Mitsubishi >> 2006 >> Outlander SE, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Low-Reverse Brake >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

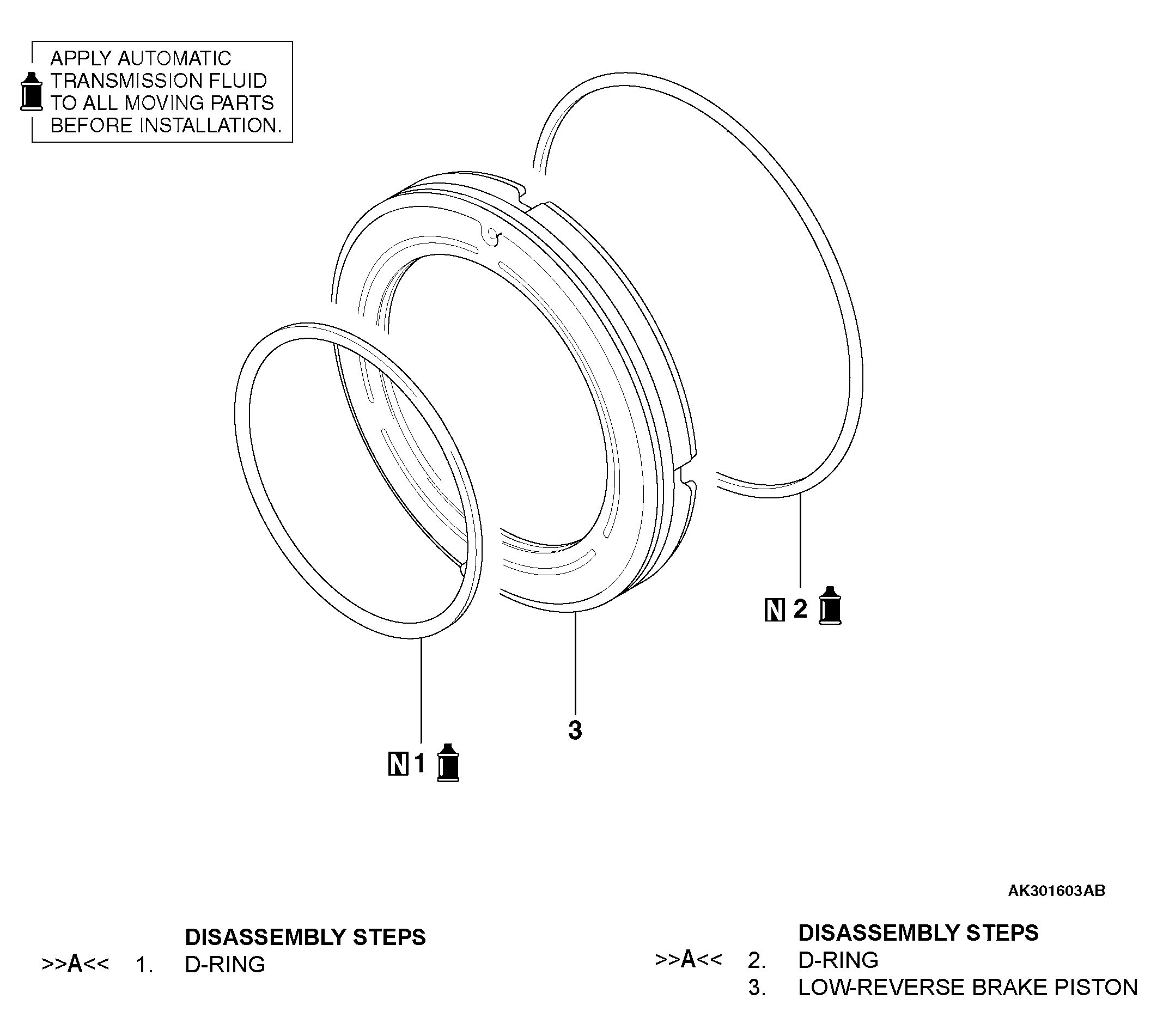

Fig 1: Disassembling/Assembling Of Low-Reverse Brake

G04303361

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
