Removal And Installation: Notes

WARNING: Before removing the steering wheel and air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

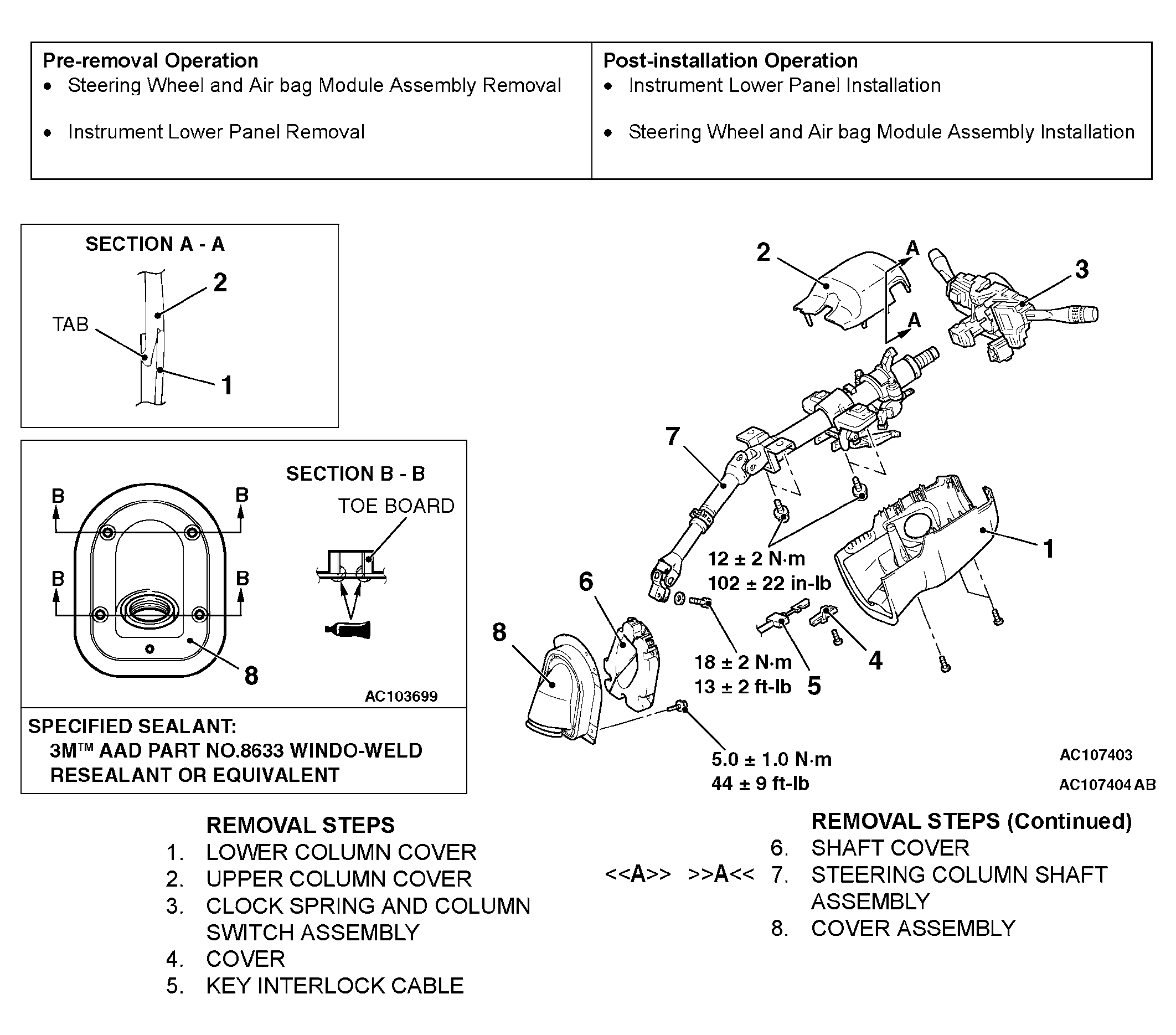

Fig 1: Removal And Installation Of Steering Column Shaft Assembly
G04303980Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
