Post-Collision Diagnosis: SRS-Ecu: Notes

  1. Check the SRS-ECU case for dents, cracks or deformation.
  2. Check the connector for damage, and the terminals for deformation.
  3. Check the installation of the SRS-ECU.

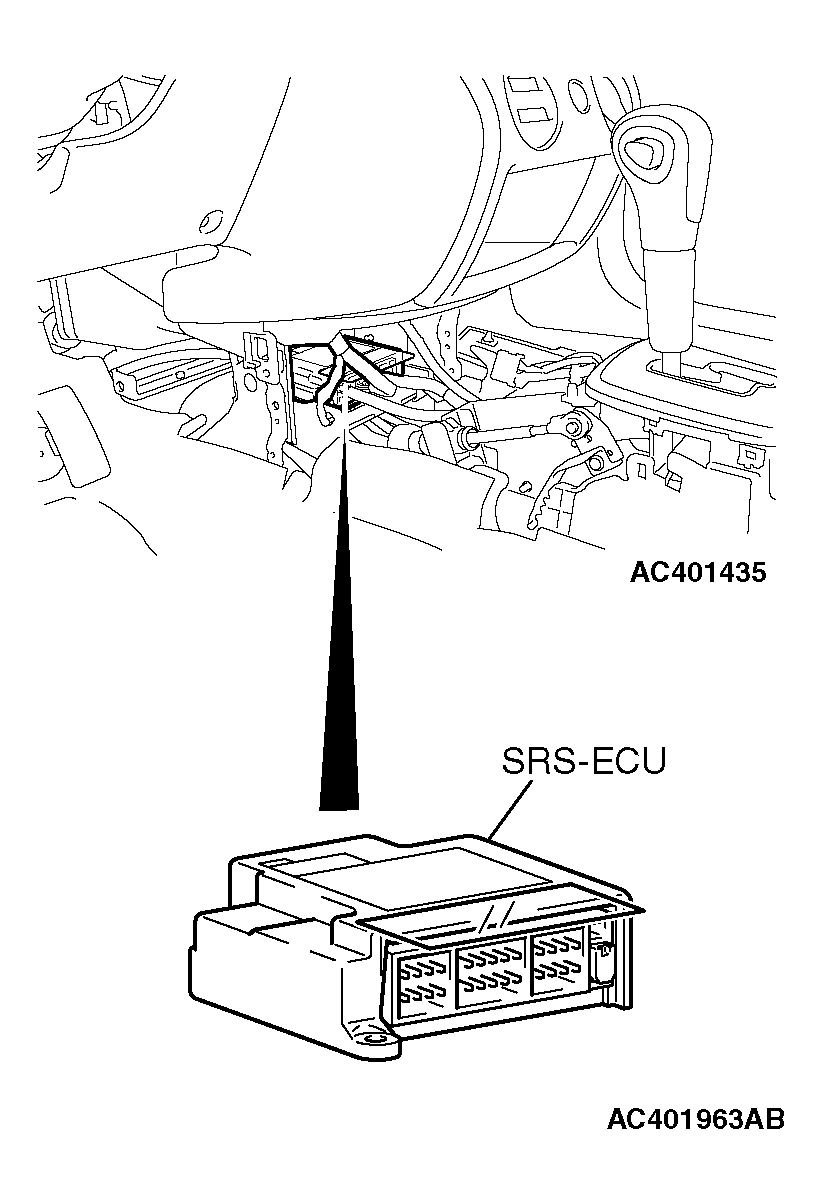

Fig 1: Identifying SRS-ECU
G04304944Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
