Circuit Diagram

WARNING:
  • Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on SERVICE PRECAUTIONS  ): replace the wiring if necessary, after reading and following all precautions and procedures in this manual.
  • Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS ) and a digital multi-meter (refer to TEST EQUIPMENT  ).
CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent the serious injury.

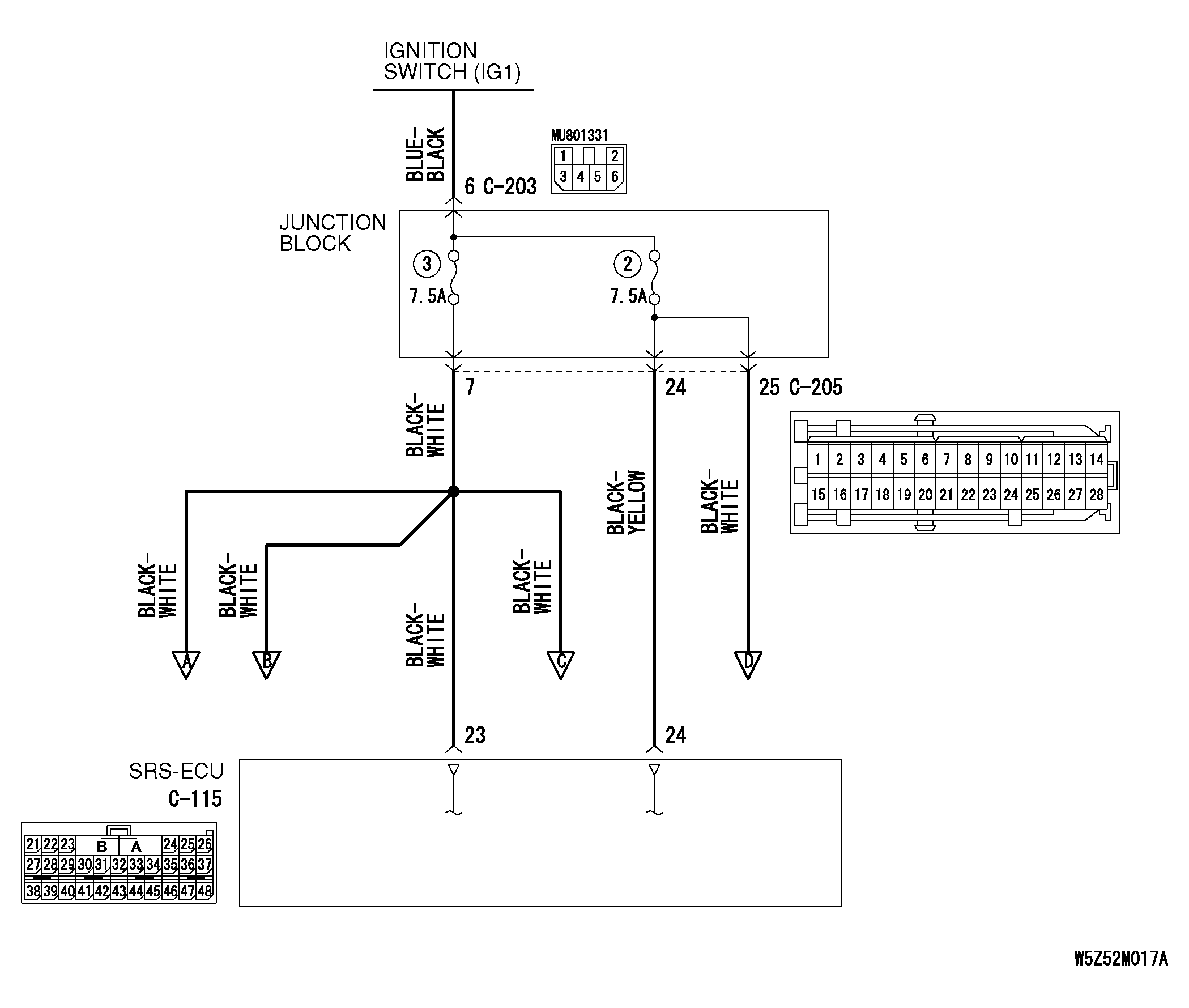

Fig 1: Circuit Diagram (1 Of 9)
G04304339Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

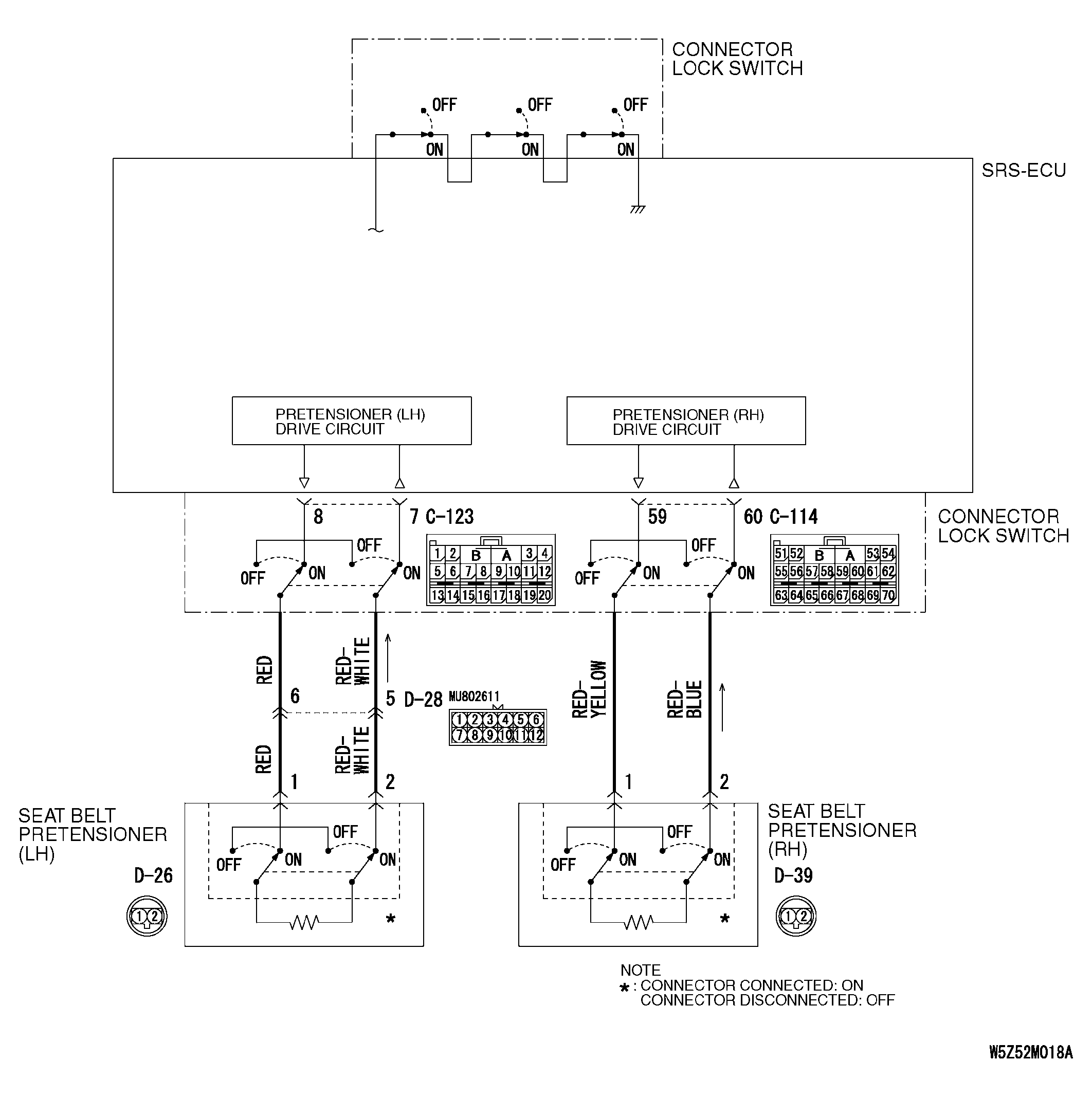

Fig 2: Circuit Diagram (2 Of 9)
G04304340Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

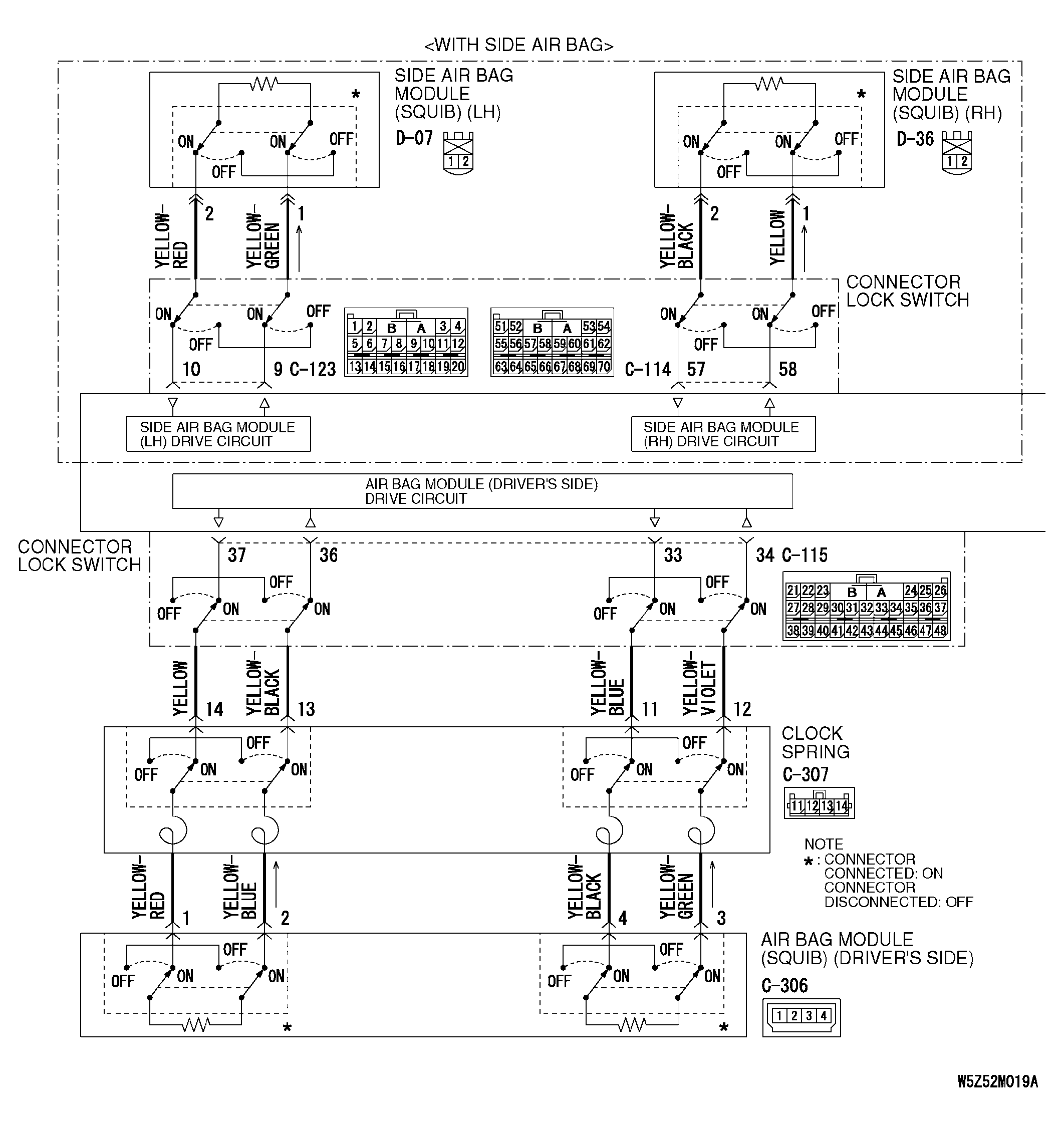

Fig 3: Circuit Diagram (3 Of 9)
G04304341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

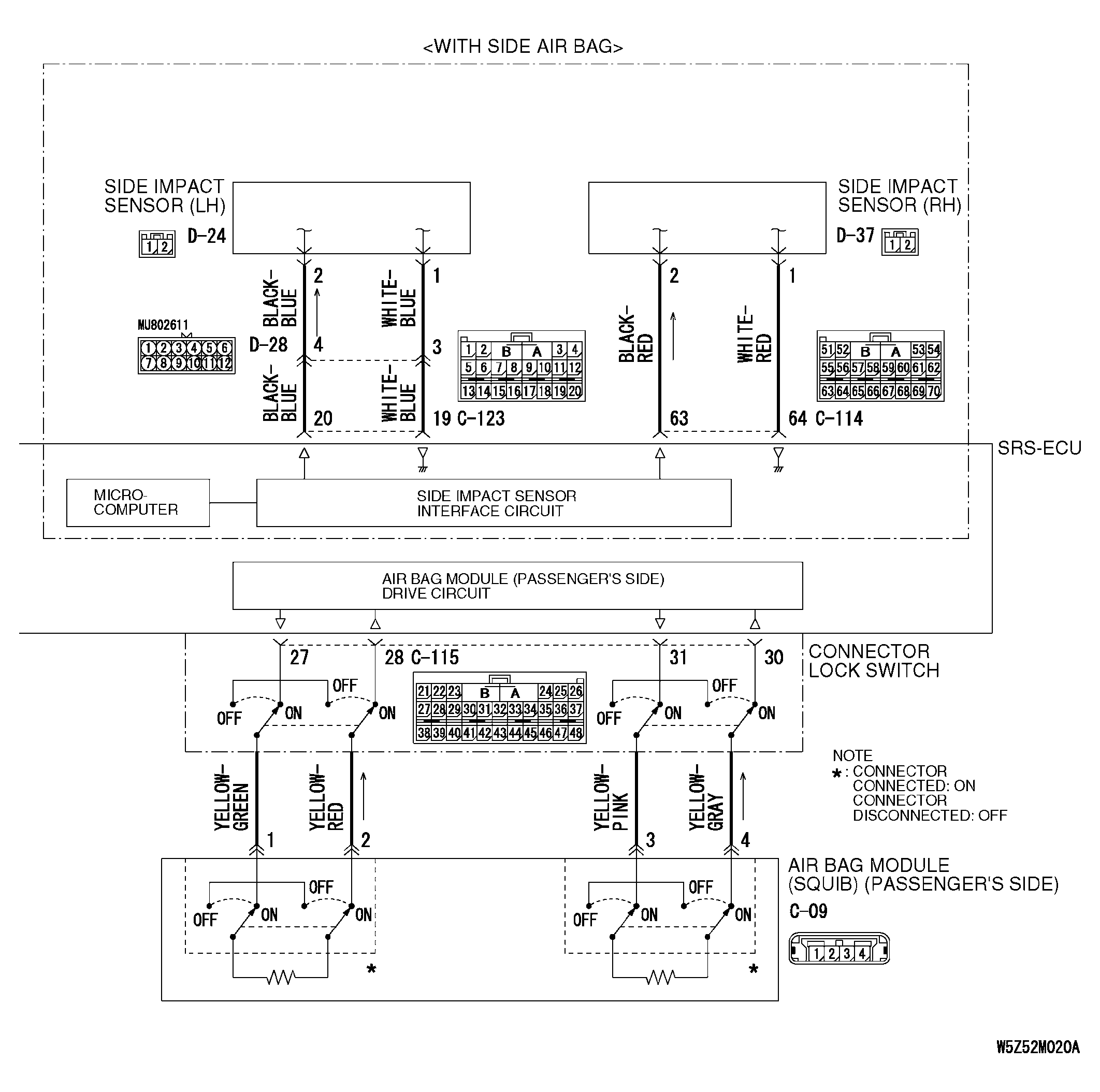

Fig 4: Circuit Diagram (4 Of 9)
G04304342Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

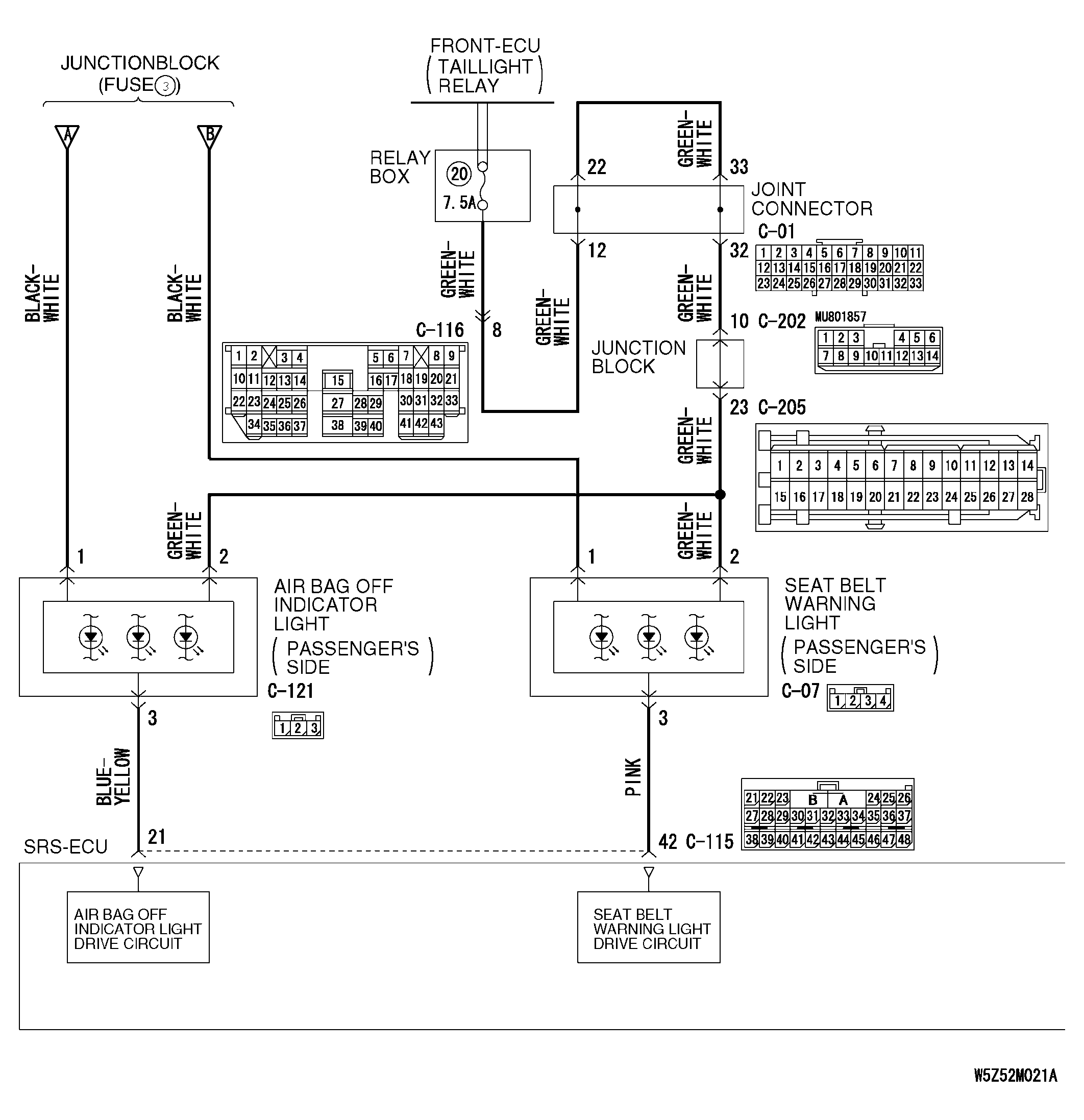

Fig 5: Circuit Diagram (5 Of 9)
G04304343Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

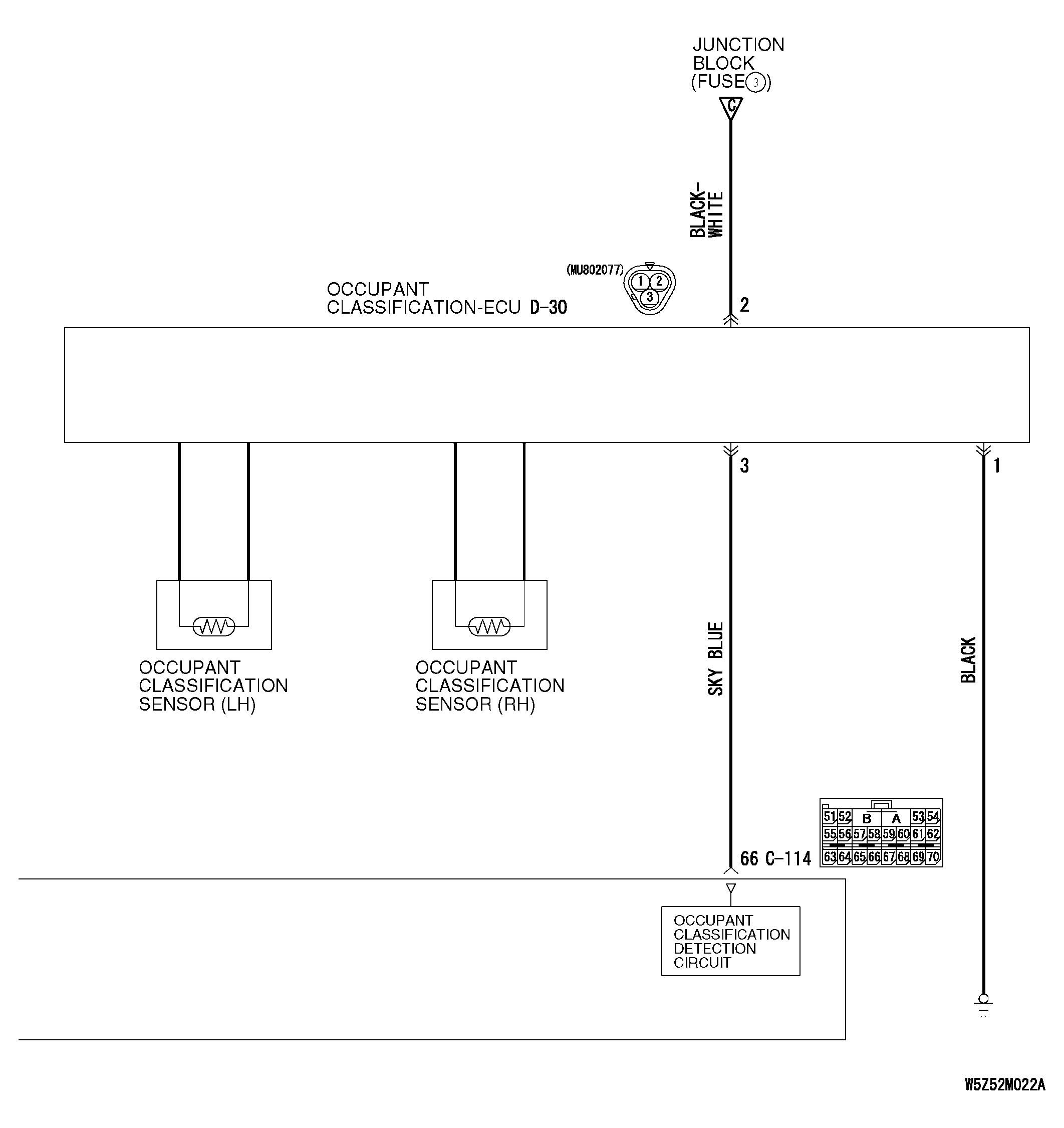

Fig 6: Circuit Diagram (6 Of 9)
G04304344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

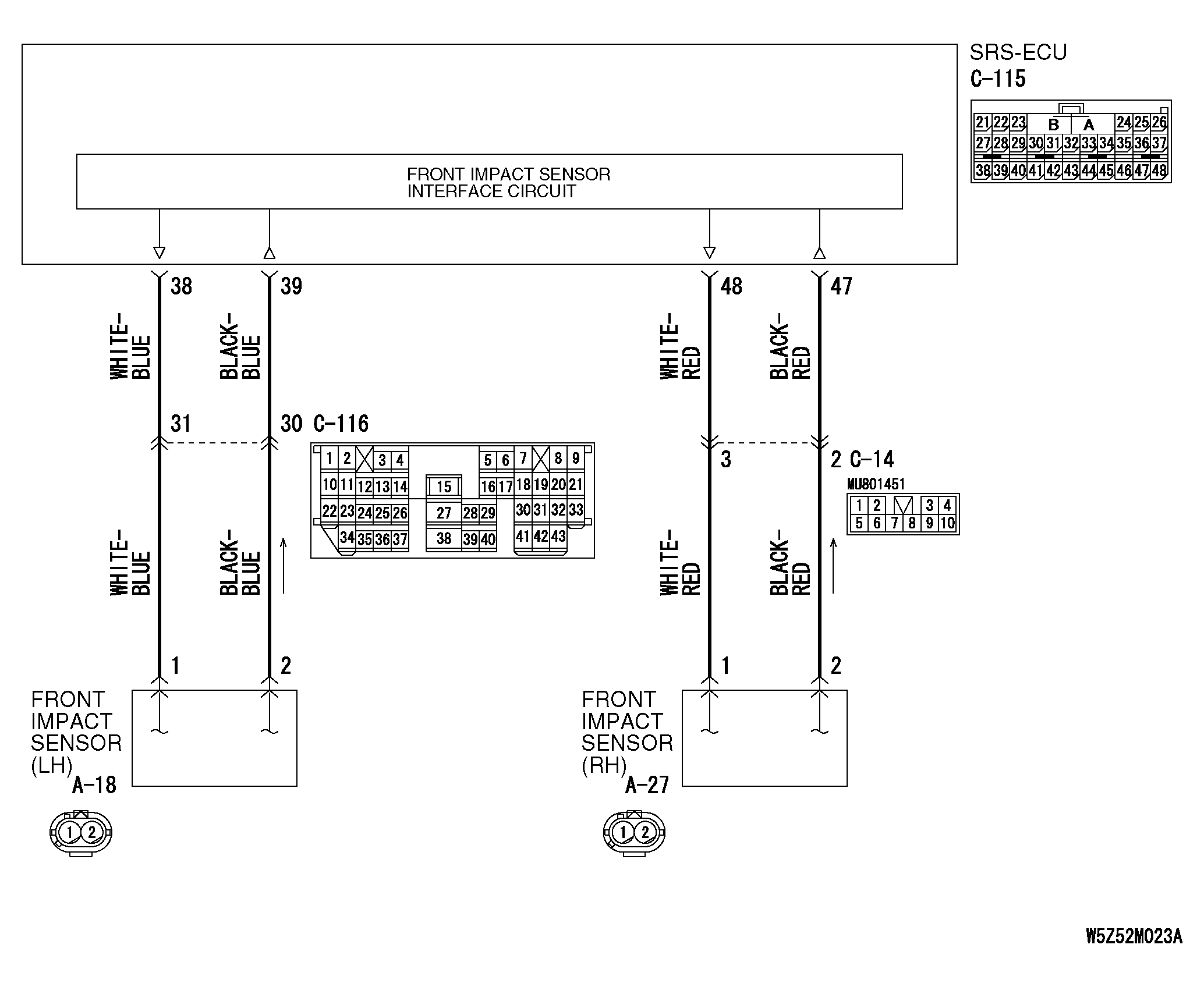

Fig 7: Circuit Diagram (7 Of 9)
G04304345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

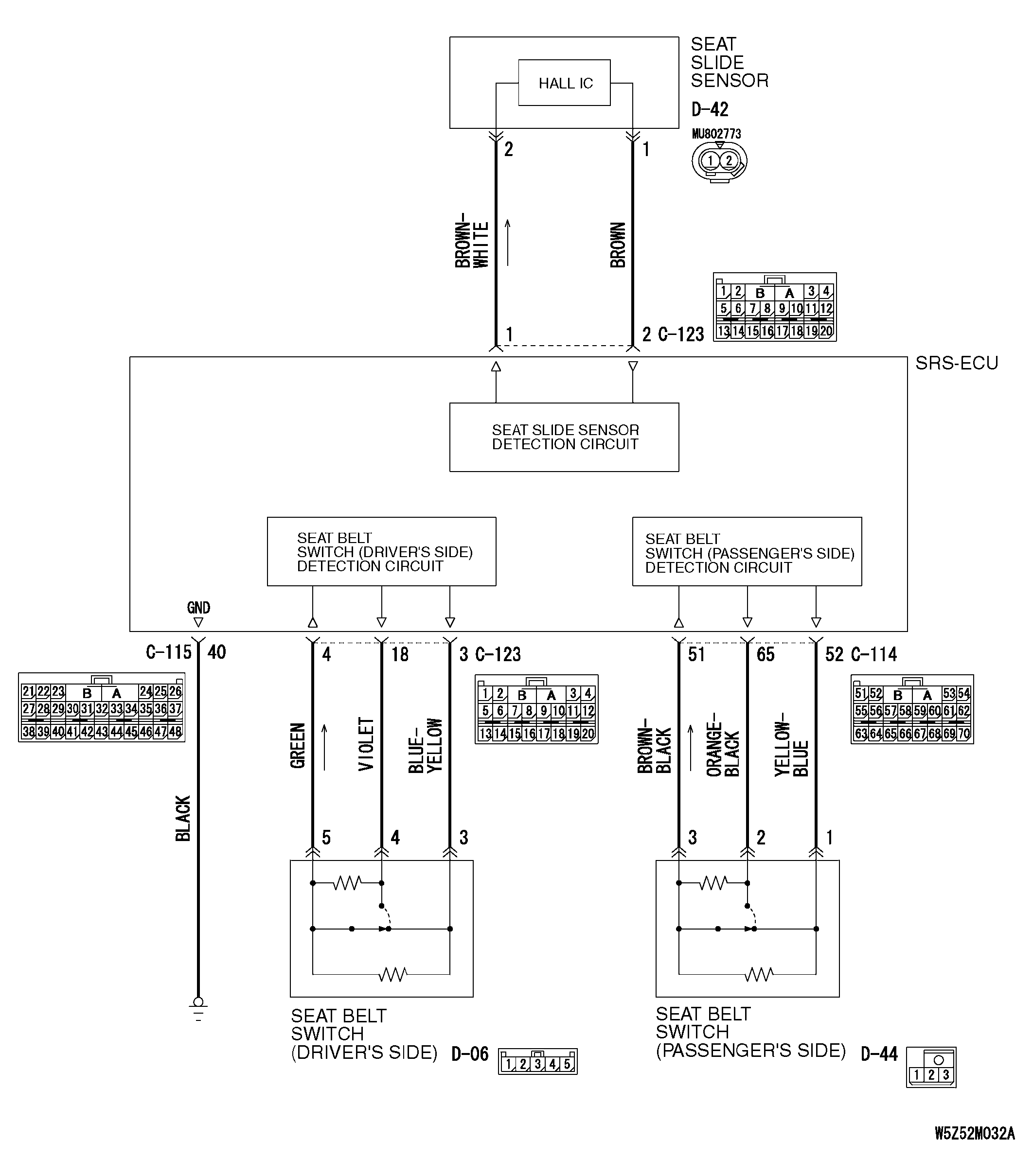

Fig 8: Circuit Diagram (8 Of 9)
G04304346Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

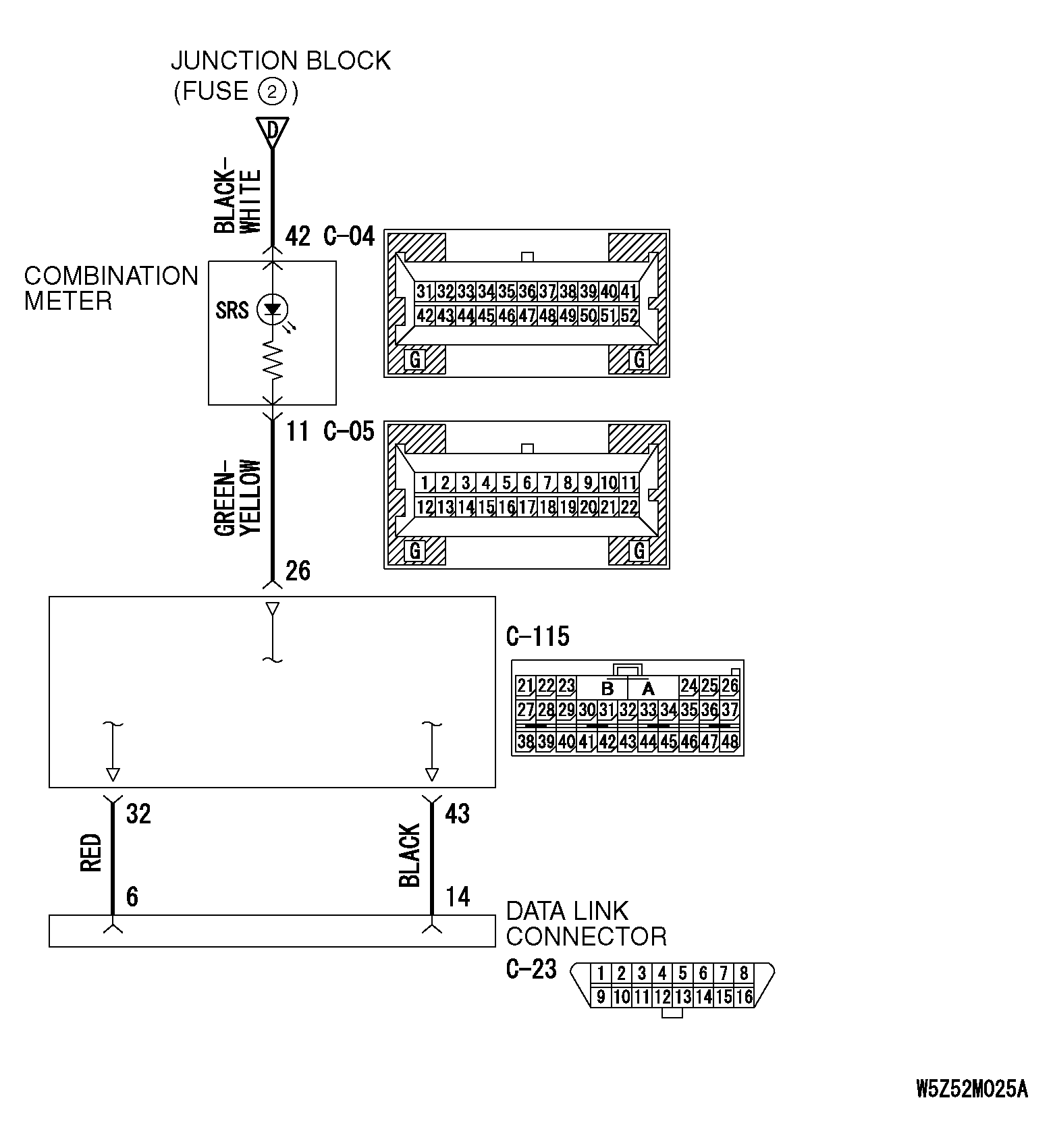

Fig 9: Circuit Diagram (9 Of 9)
G04304347Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
