Disassembly And Assembly: Notes

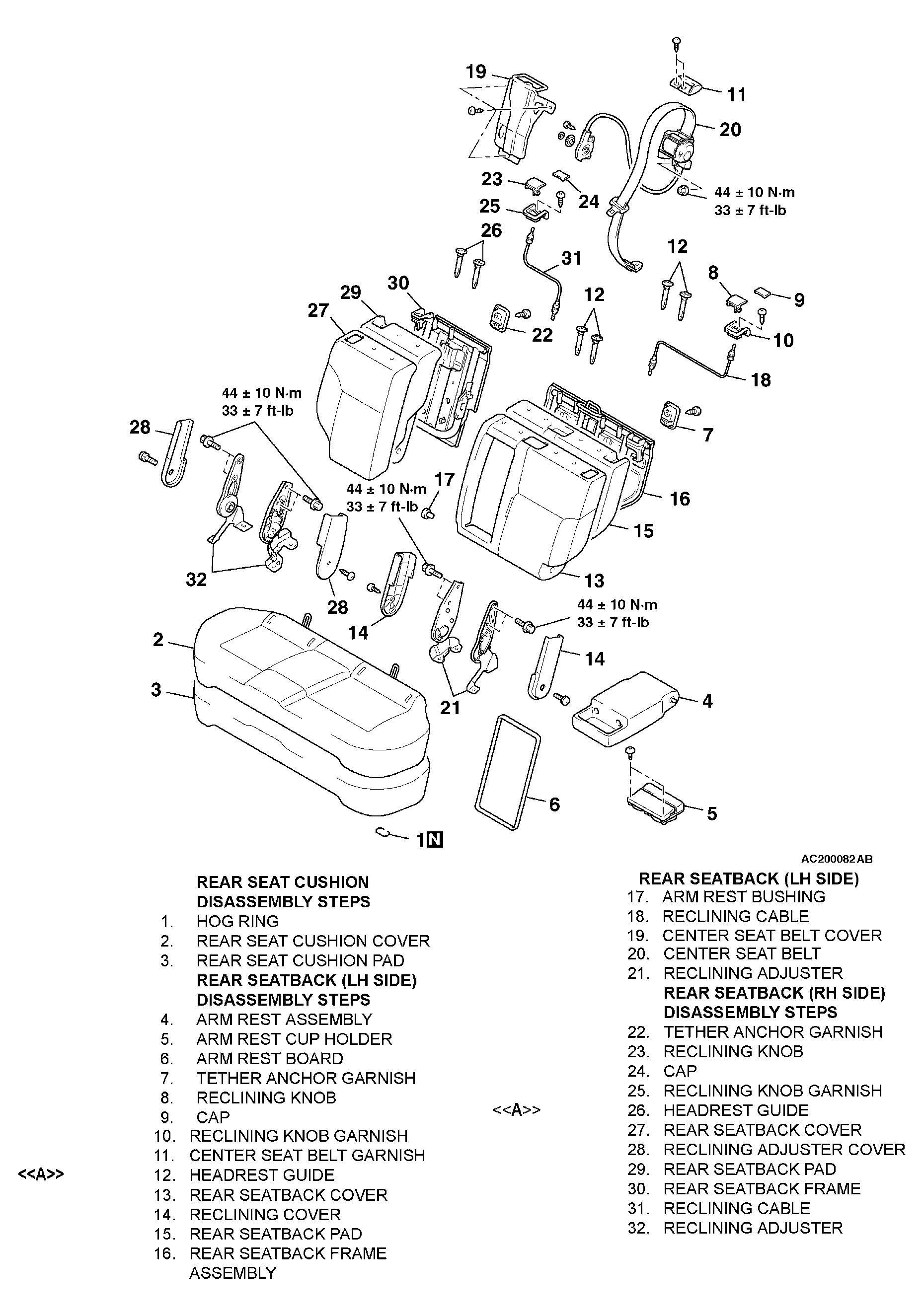

Fig 1: Exploded View Of Rear Seat Cushion Assembly

G04304315

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
