Home >> Mitsubishi >> 2006 >> Outlander SE, FWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Instrument Panel Assembly >> Disassembly And Assembly

Disassembly And Assembly

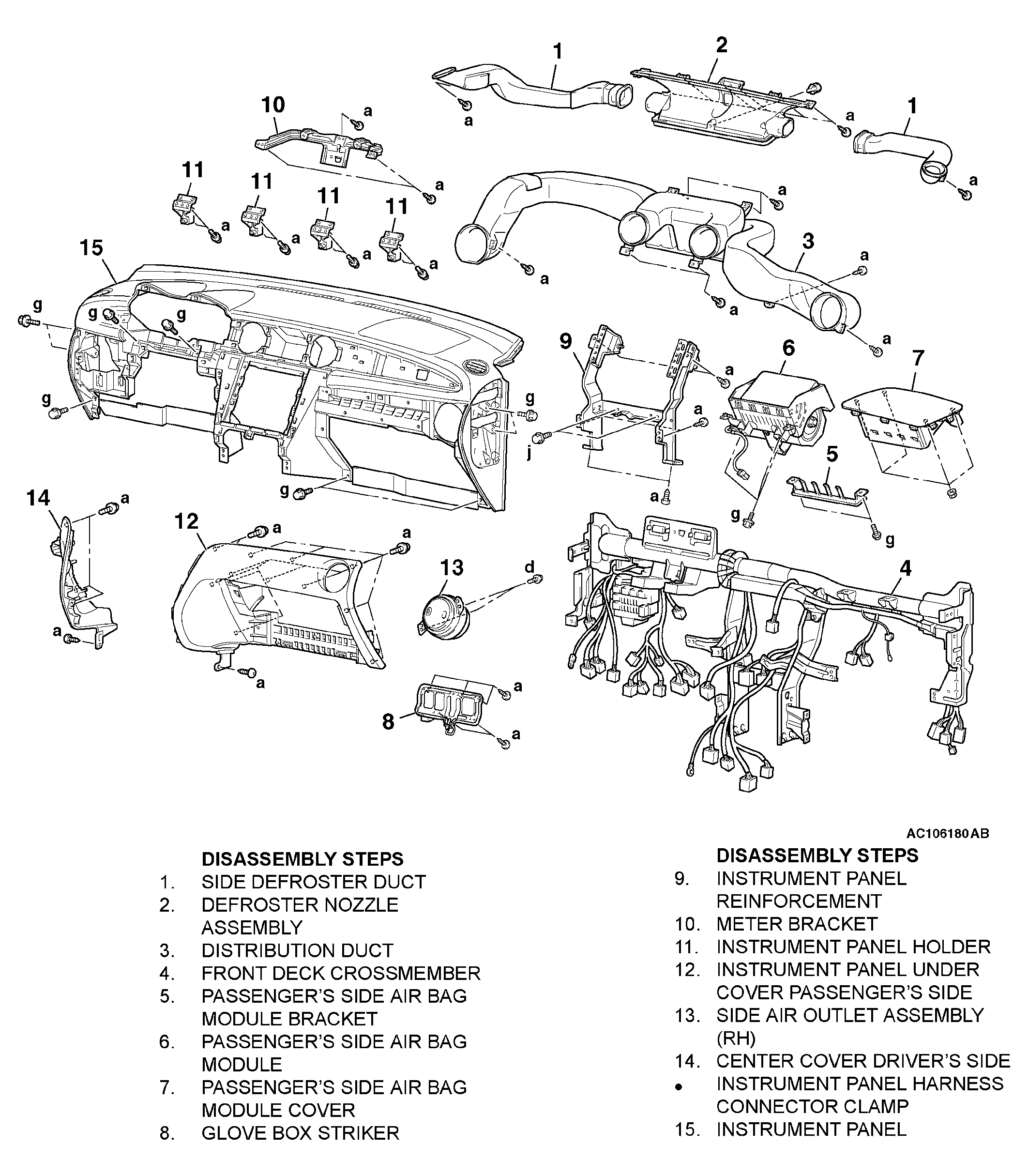

Fig 1: Exploded View Of Instrument Panel Assembly

G04304287

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
