Mitsubishi
>>
2006
>>
Outlander SE, FWD
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Floor Console Assembly
>>
Disassembly And Assembly
Disassembly And Assembly

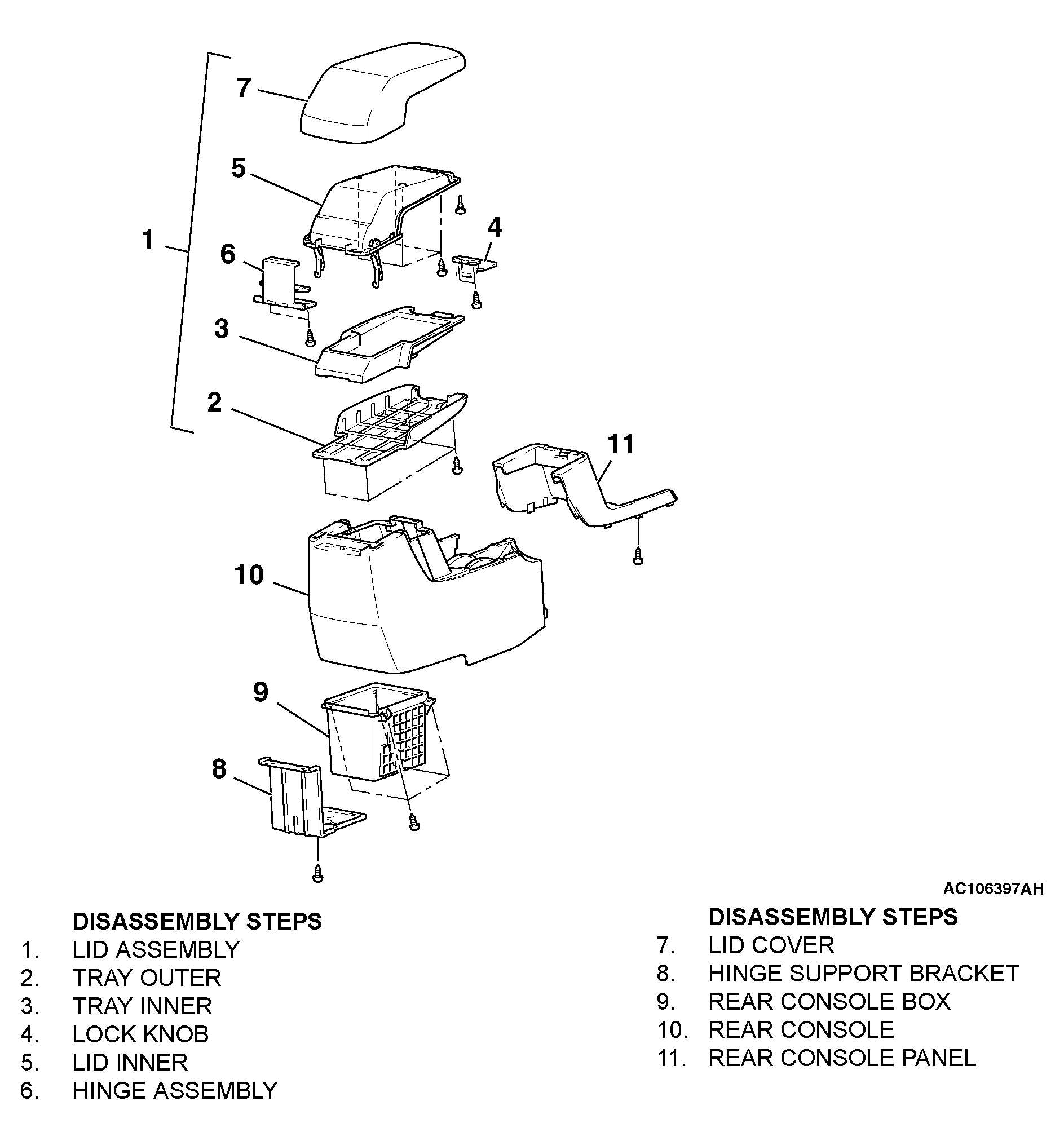

Fig 1: Exploded View Of Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
