Removal And Installation: Notes

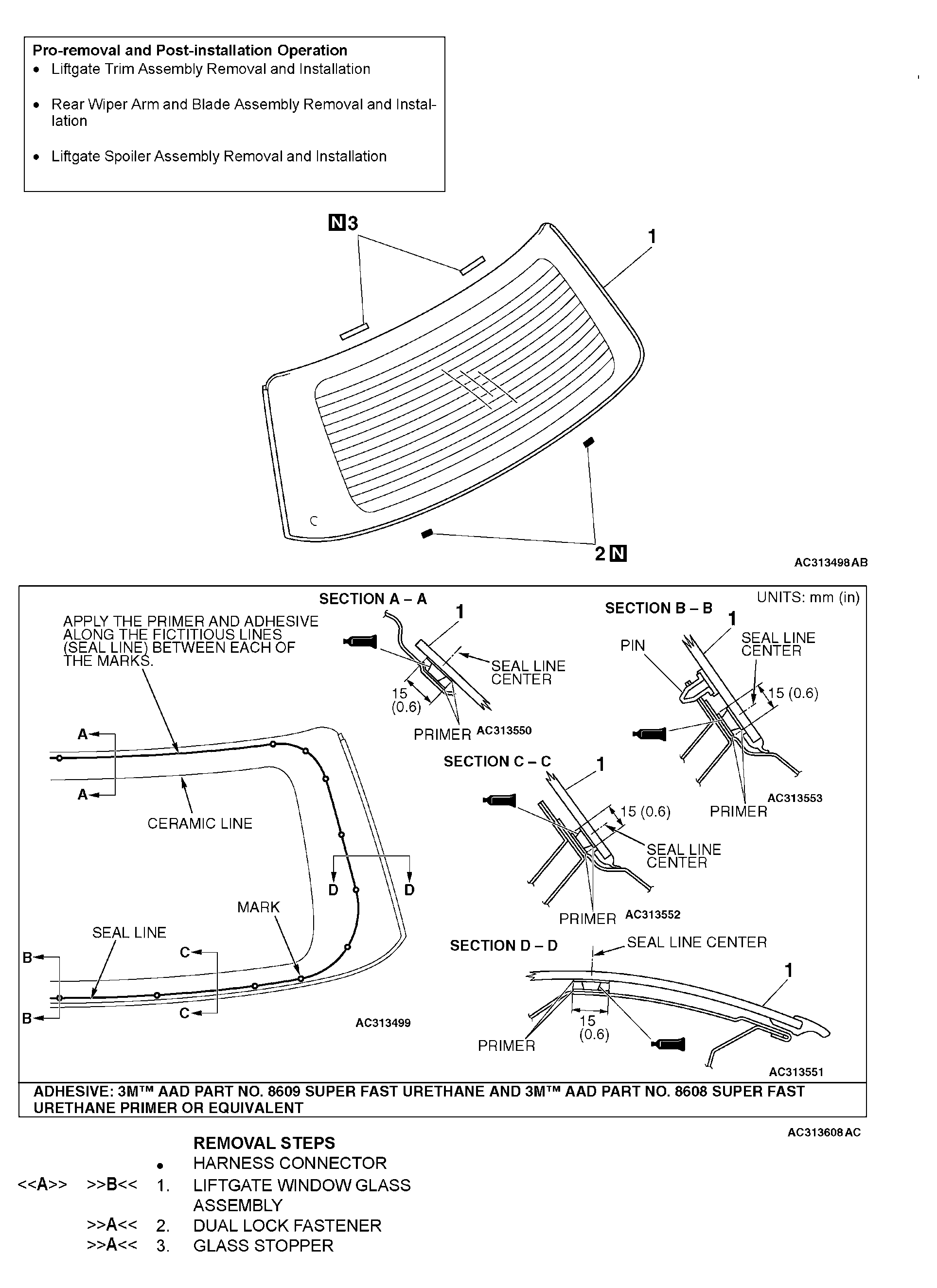

Fig 1: Identifying Liftgate Window Glass Removal Steps
G04304063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
