Transmission Oil Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the filler plug.
  2. Remove the drain plug and drain the oil.
  3. Tighten the drain plug to the specified torque.

    Tightening torque: 32 +/- 2 N. m (24 +/- 1 ft-lb)

  4. Fill with DiaQueen NEW MULTI GEAR OIL API classification GL-3, SAE 75W -80 or gear oil API classification GL-4 SAE 75W -85W/75W -90 until the level comes to the lower portion of filler plug hole.

    Quantity: 2.2 dm 3  (2.3 quarts) < FWD >

    Quantity: 2.3 dm 3  (2.4 quarts) < AWD >

  5. Tighten the filler plug to the specified torque.

    Tightening torque: 32 +/- 2 N. m (24 +/- 1 ft-lb)

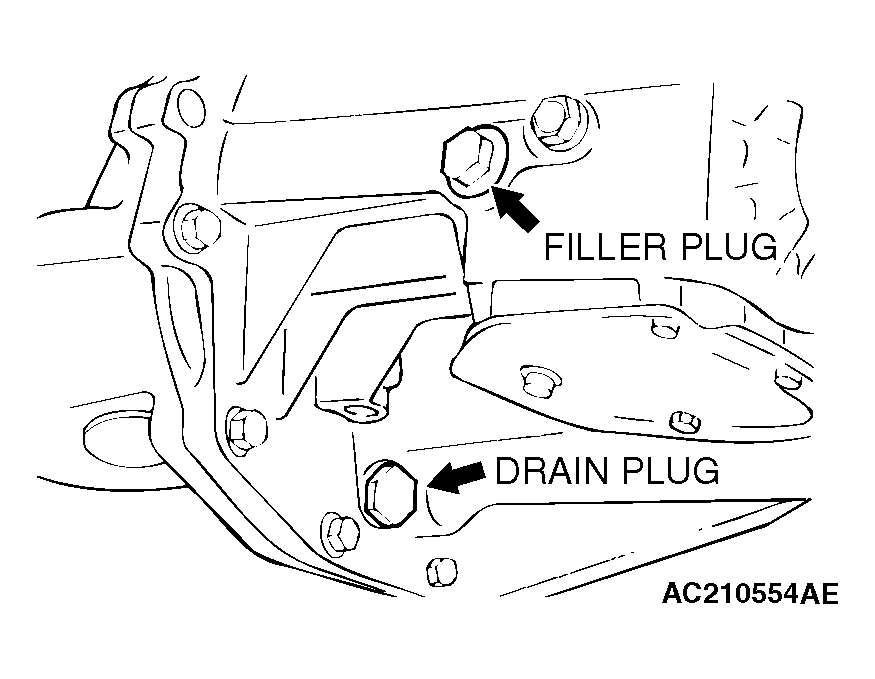

    Fig 1: Removing Filler Plug
    G04302286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
