Transfer Oil Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the filler plug.
  2. Remove the drain plug and drain the oil.
  3. Tighten the drain plug to the specified torque.

    Tightening torque: 32 +/- 2 N. m (24 +/- 1 ft-lb)

    CAUTION: Cover the heat protector of the front exhaust pipe with cardboard or something similar when refilling transfer oil so that transfer oil is not introduced in the front exhaust pipe heat protector.
  4. Fill with hypoid gear oil API classification GL-5 SAE90 until the level comes to the lower portion of filler plug hole.

    Quantity: 0.55 dm 3  (0.58 quarts)

  5. Tighten the filler plug to the specified torque.

    Tightening torque: 32 +/- 2 N. m (24 +/- 1 ft-lb)

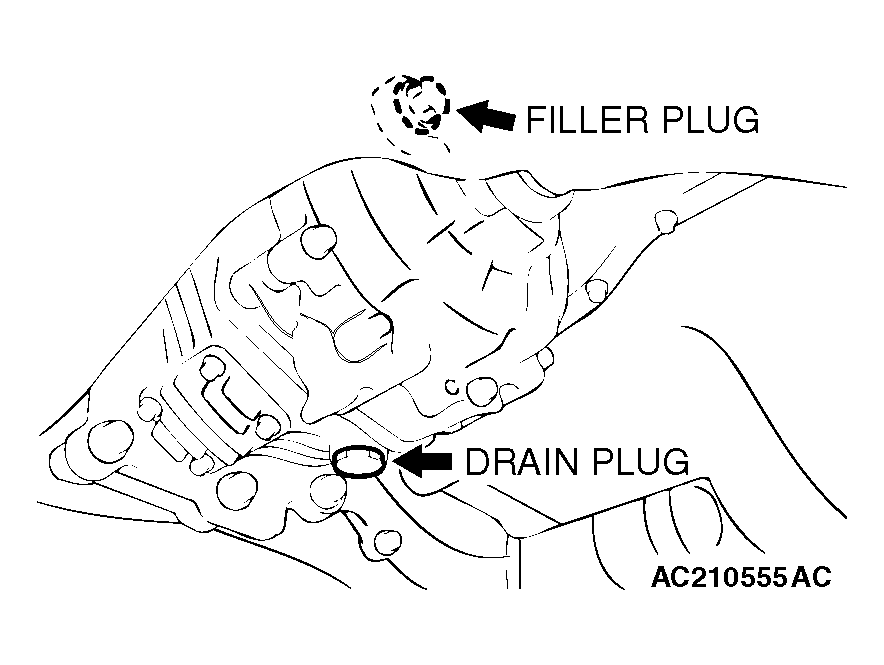

    Fig 1: Tightening Drain Plug
    G04302288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
