Transfer Oil Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove the filler plug.
  2. Check that the oil level is up to the lower edge of the filler plug hole.
  3. Check that the oil is not noticeably dirty.
  4. Tighten the filler plug to the specified torque.

    Tightening torque: 32 +/- 2 N. m (24 +/- 1 ft-lb)

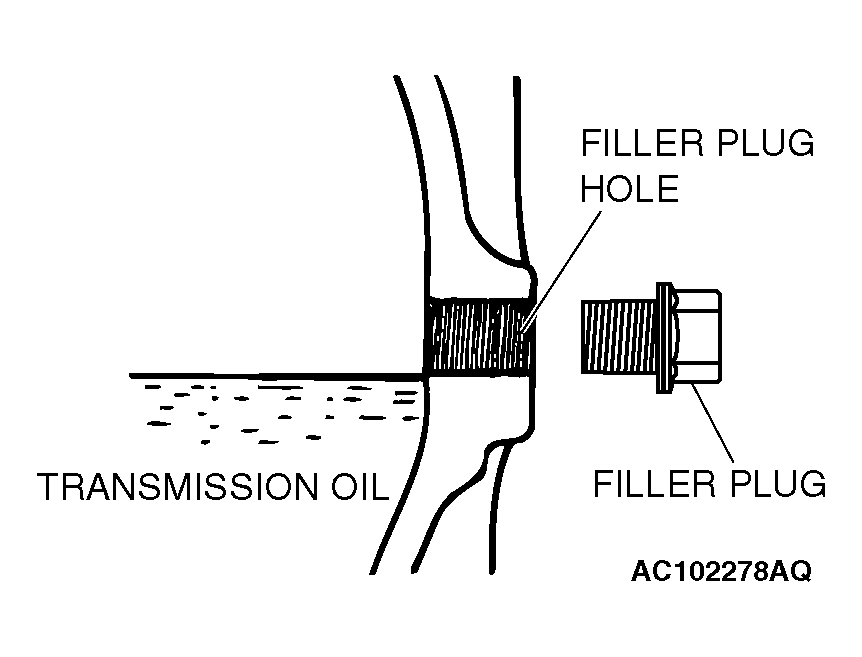

    Fig 1: >Tightening Filler Plug
    G04302287Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
