Special Tools

SPECIAL TOOLS DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
A
G04301910G04301911G04301912G04301913G04301914G04301915G04301916

B
G04301910G04301911G04301912G04301913G04301914G04301915G04301916

C
G04301910G04301911G04301912G04301913G04301914G04301915G04301916

D
G04301910G04301911G04301912G04301913G04301914G04301915G04301916

E
G04301910G04301911G04301912G04301913G04301914G04301915G04301916

F
G04301910G04301911G04301912G04301913G04301914G04301915G04301916

G
G04301910G04301911G04301912G04301913G04301914G04301915G04301916
 MB991958

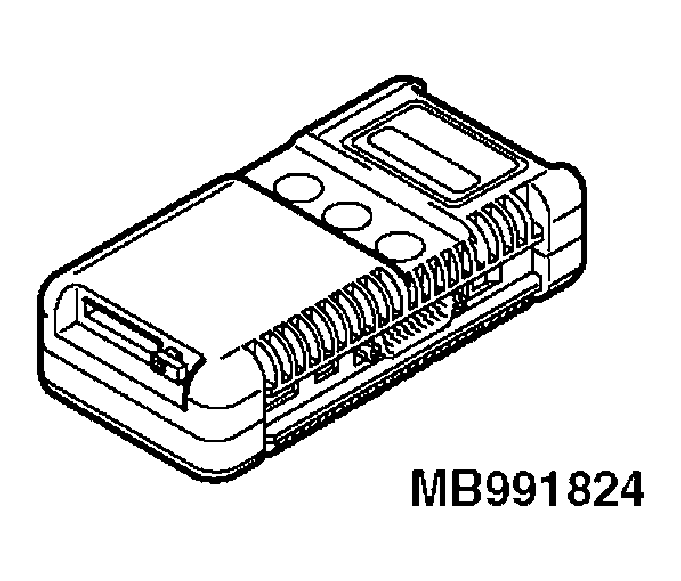

  1. MB991824

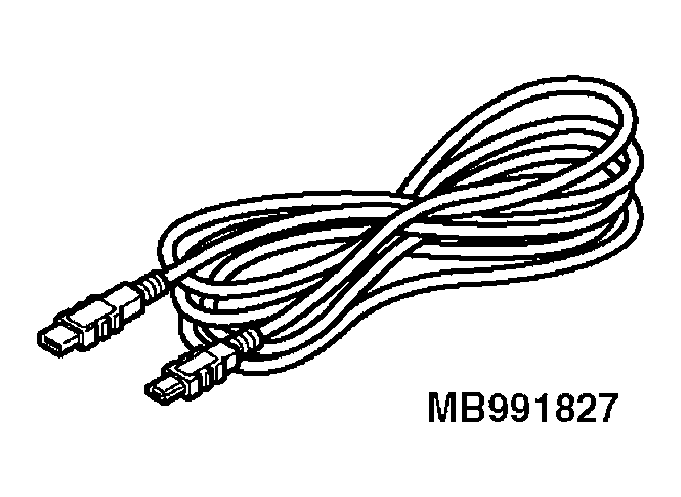

  2. MB991827

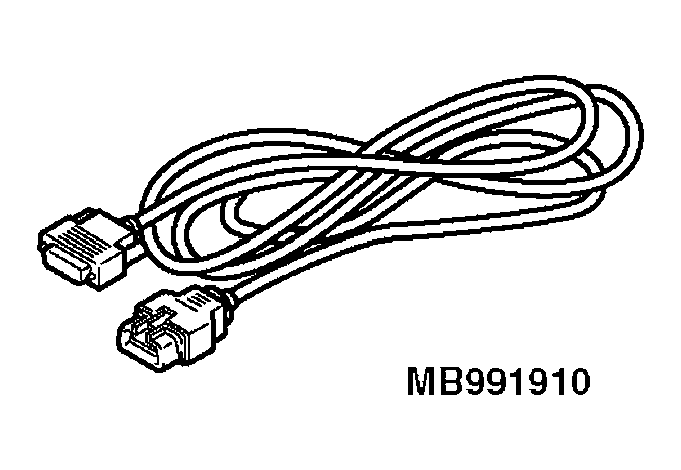

  3. MB991910

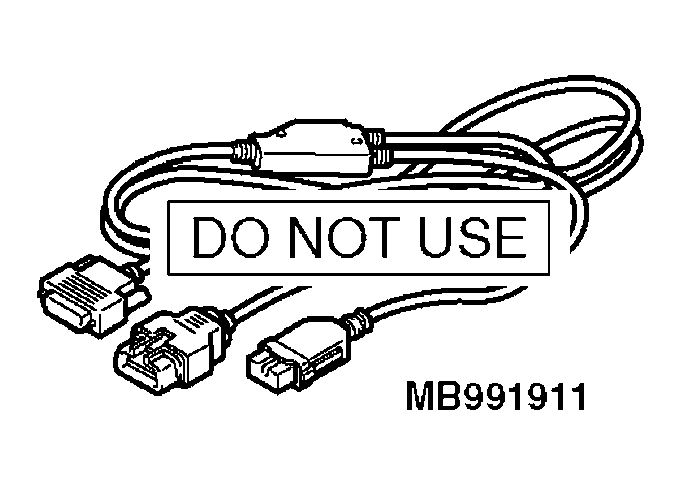

  4. MB991911

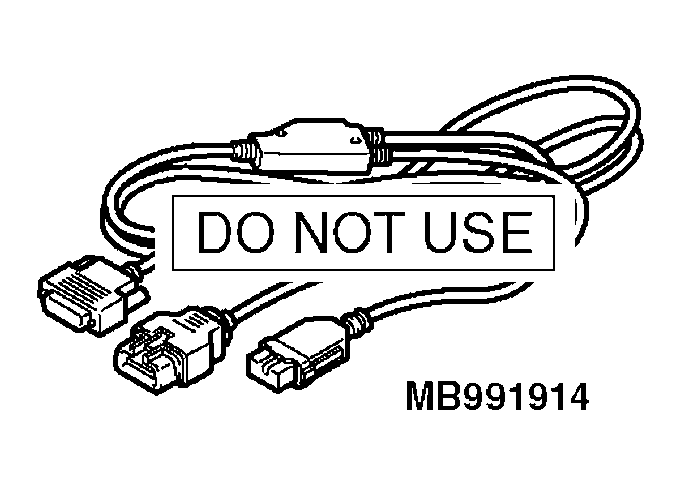

  5. MB991914

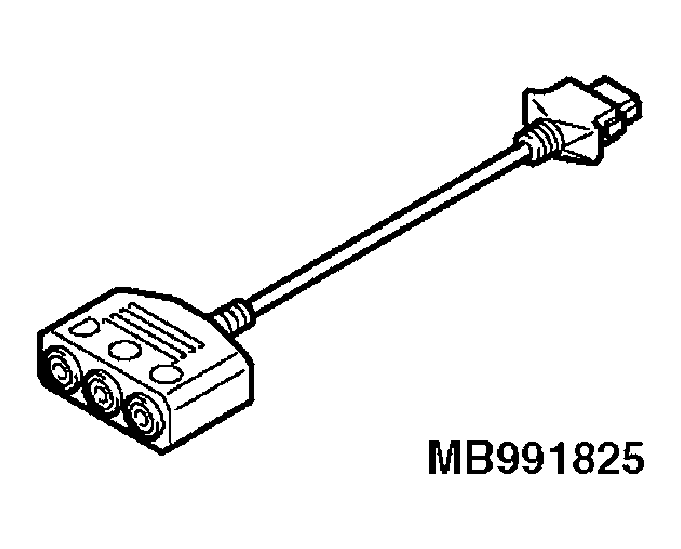

  6. MB991825

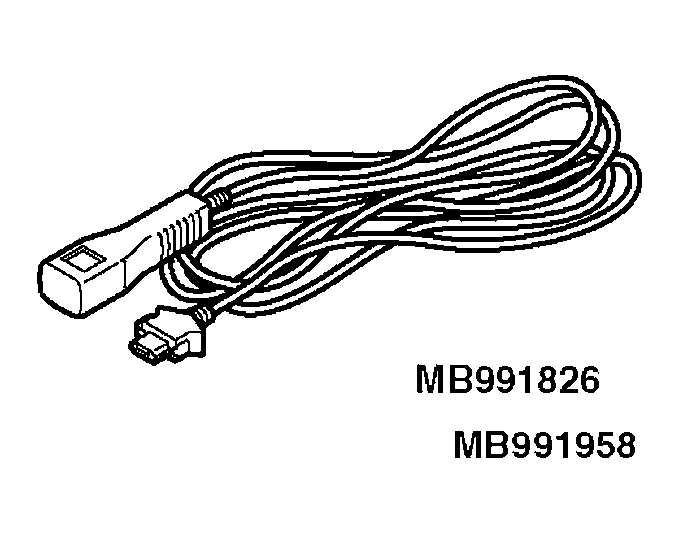

  7. MB991826
M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler Chrysler models only)
  6. M.U.T.-III adapter harness
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M. U. T. -III Trigger Harness is not necessary when pushing V.C.I. ENTER key
  • Reading diagnostic trouble code
  • MFI system inspection
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
NOTE: This vehicle supports only the CAN communication between the SRS-ECU and the M.U.T.-III
G04301917

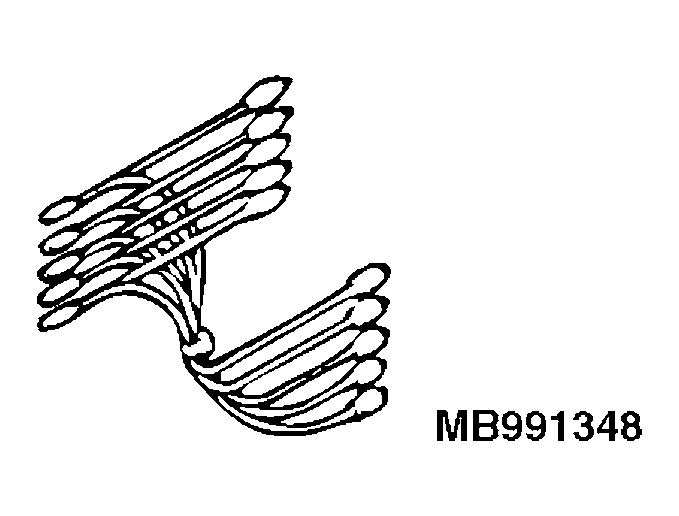

 MB991348
Test harness set		 MB991348-01 Fuel tank differential pressure sensor check
