Home >> Mitsubishi >> 2006 >> Outlander SE, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Sunroof Assembly >> Sunroof Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

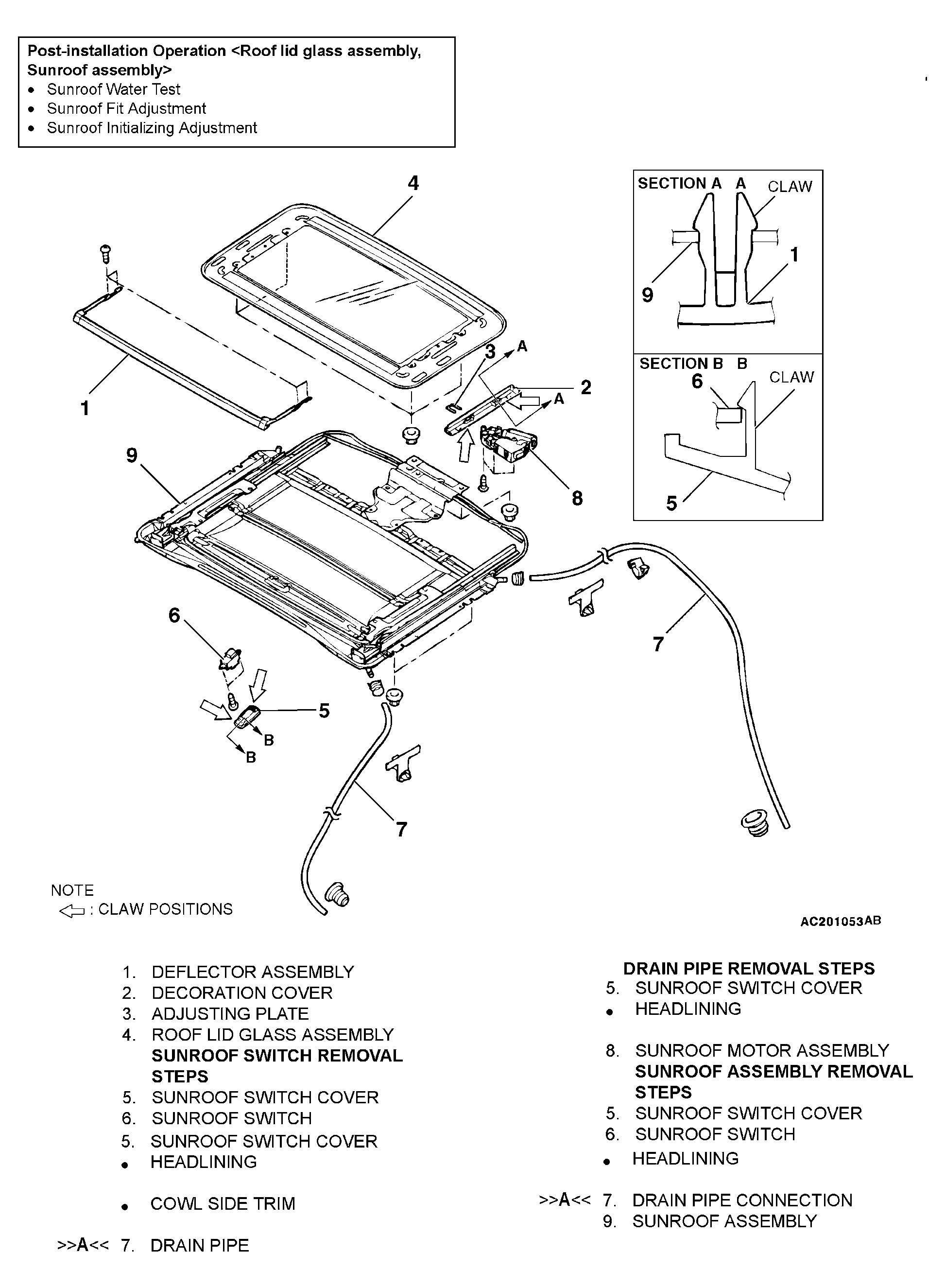

Fig 1: Identifying Sunroof Assembly Removal Steps
G04304149Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
