Disassembly And Assembly: Notes

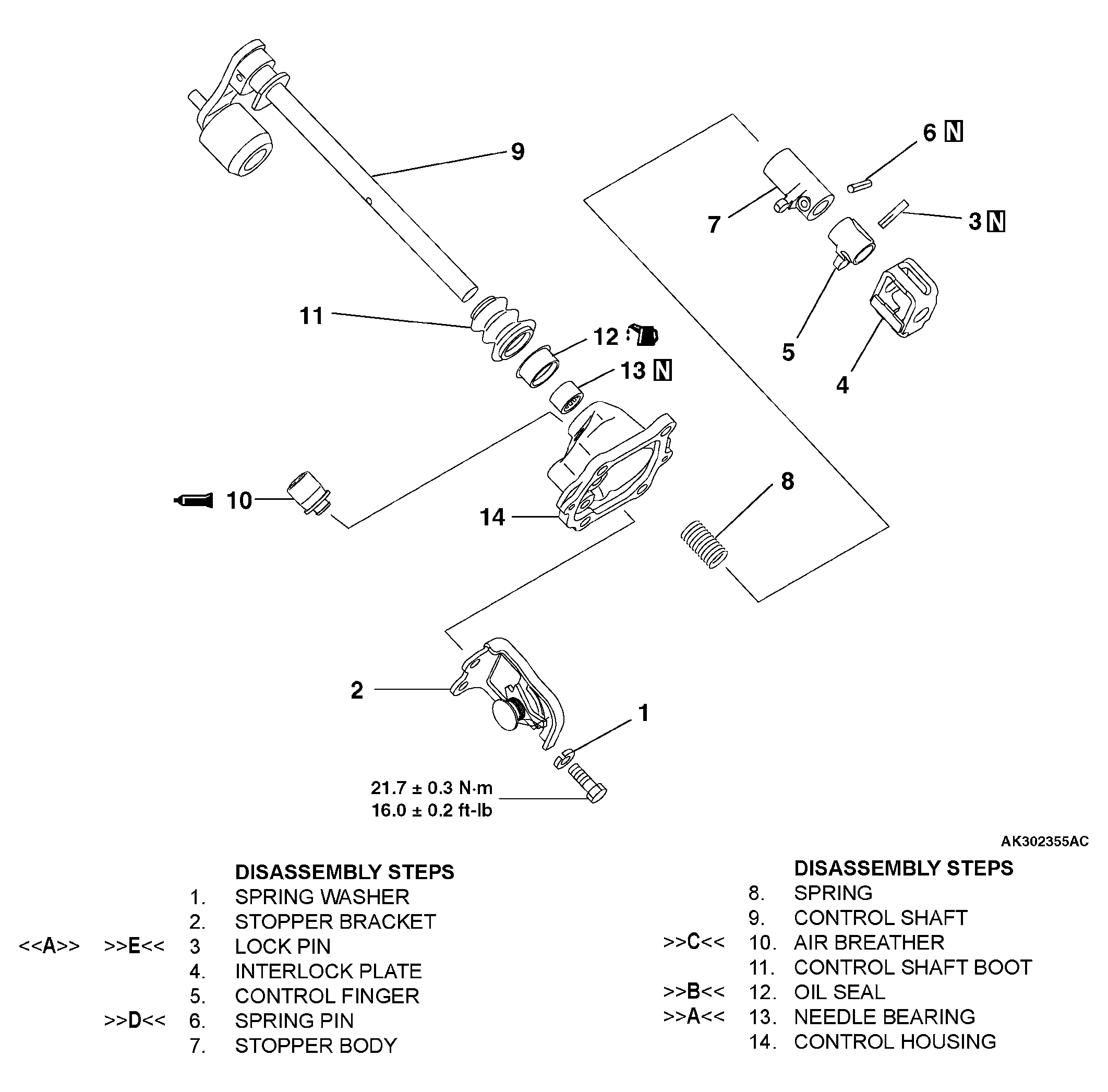

Fig 1: Disassembling/Assembling Control Housing

G04302436

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
