Home >> Mitsubishi >> 2006 >> Outlander LS, FWD, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension & Wheel Alignment >> Strut Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

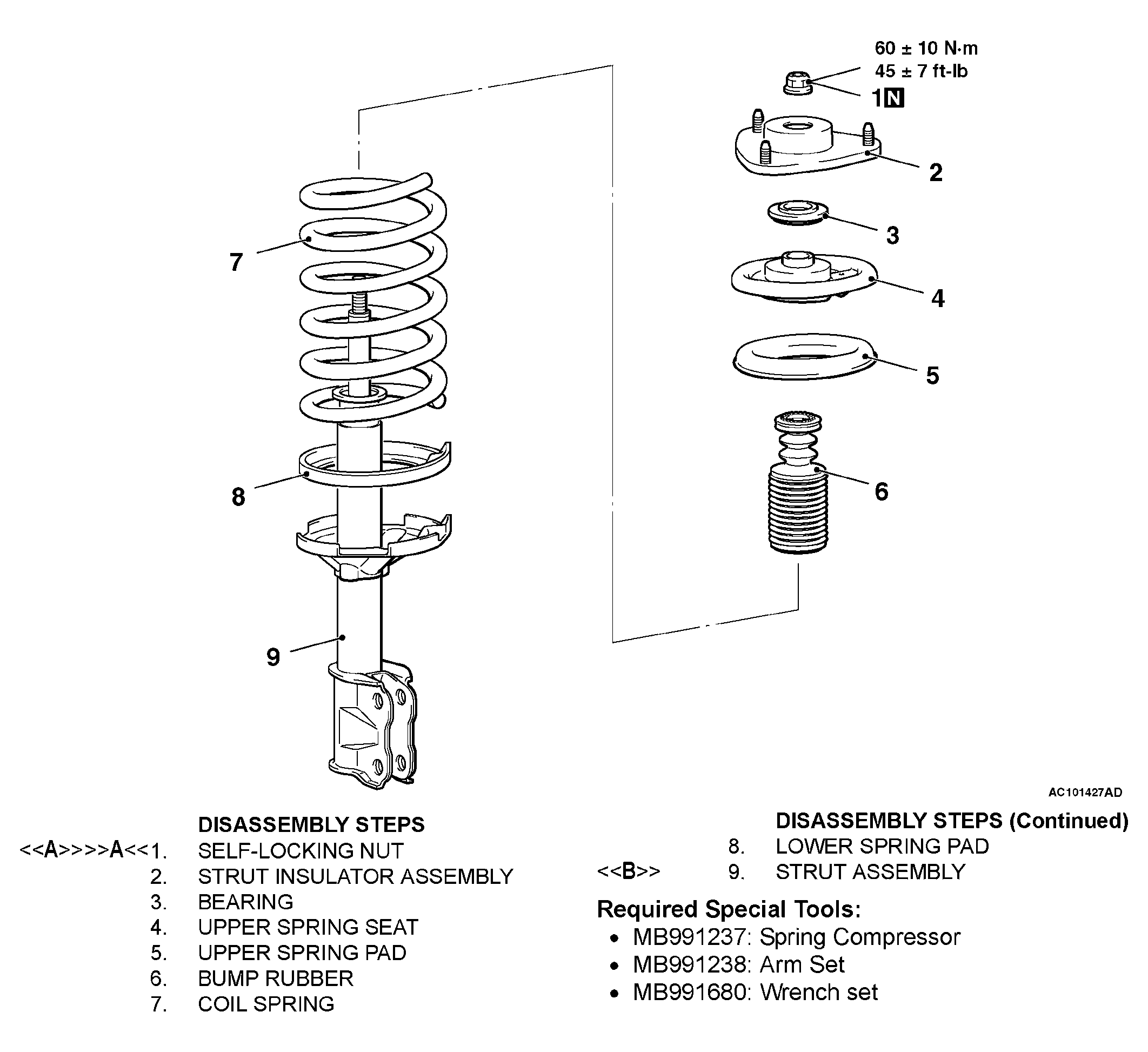

Fig 1: Exploded View Of Strut Assembly
G04303655Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
