Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

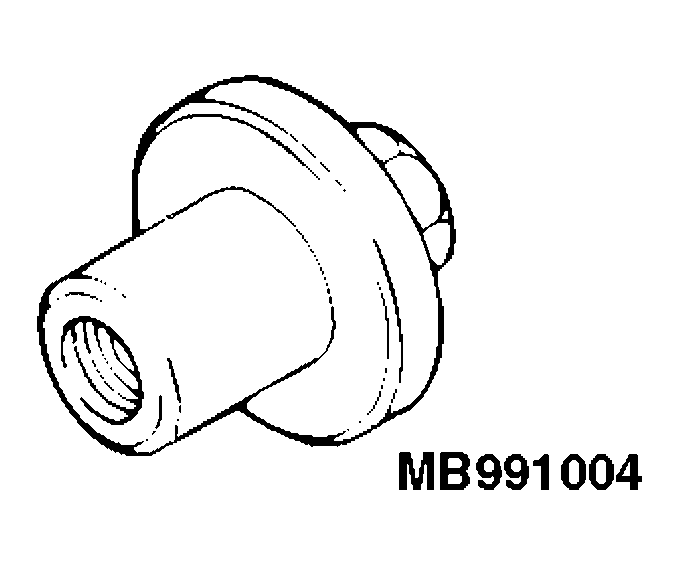

G04303642
 MB991004
Wheel alignment gauge attachment		 MB991004-01 or General service tool Wheel alignment measurement

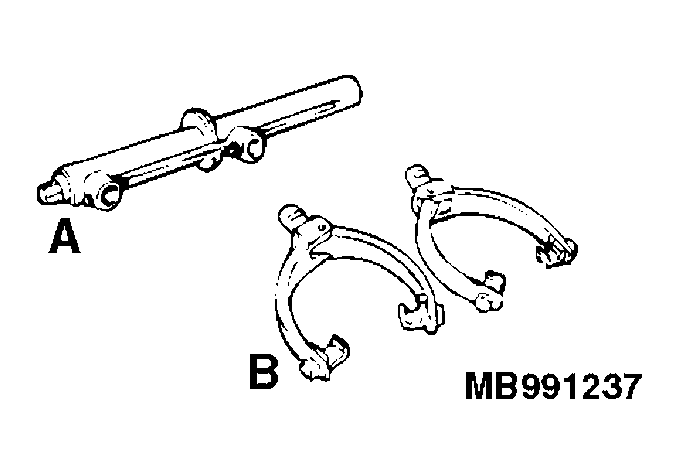

G04303643
  • A: MB991237 Spring compressor body
  • B: MB991238 Arm set
 MIT221369 or general service tool Front coil spring compression

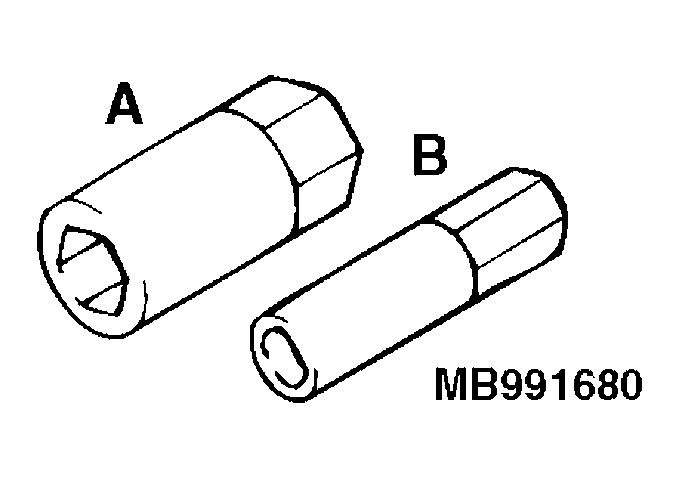

G04303644
 MB991680 Wrench set
  1. A: MB991681 Wrench
  2. B: MB991682 Socket
 - Strut assembly disassembly and reassembly

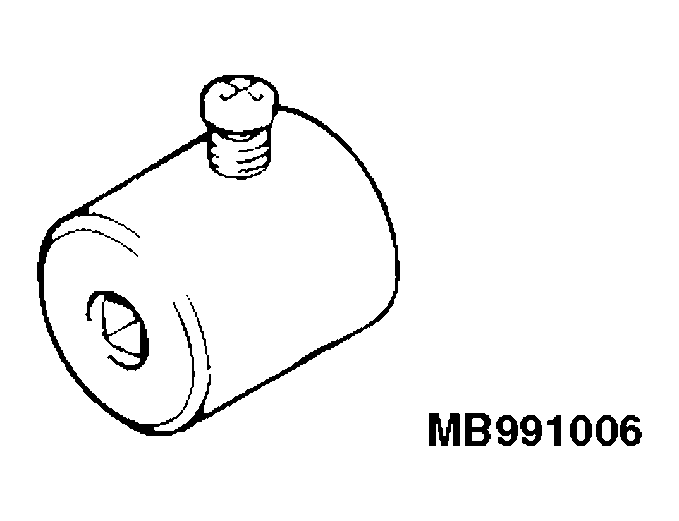

G04303645
 MB991006 Preload socket MB990228-01 Lower arm ball joint breakaway torque check

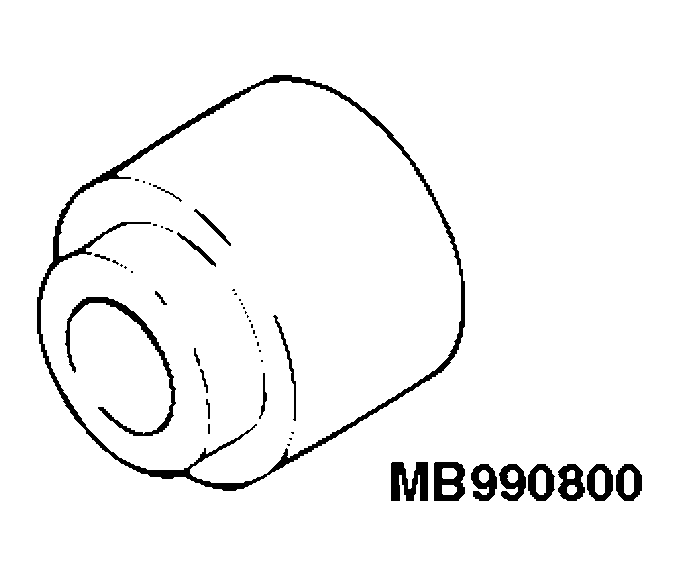

G04303646
 MB990800
Ball joint dust cover installer		 MB990800-01or General service tool Lower arm ball joint dust cover installation

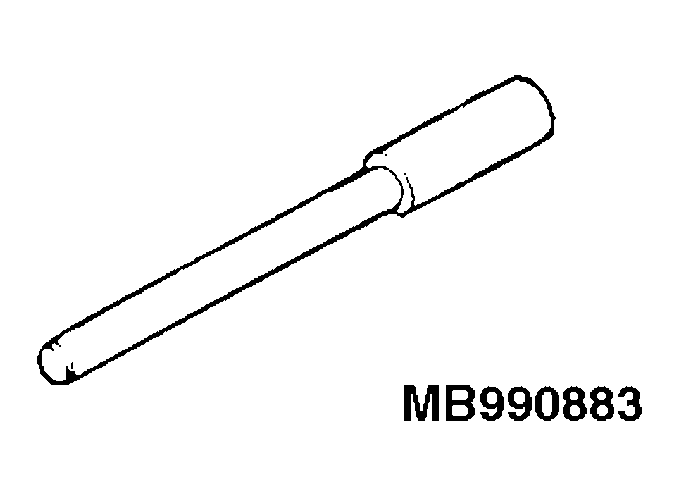

G04303647
 MB990883
Rear suspension bushing arbor		 MB990883-01 or general service tool Lower arm bushing removal and press-fitting
G04303648
 MB990958
Rear wheel bearing & installer joint		 -

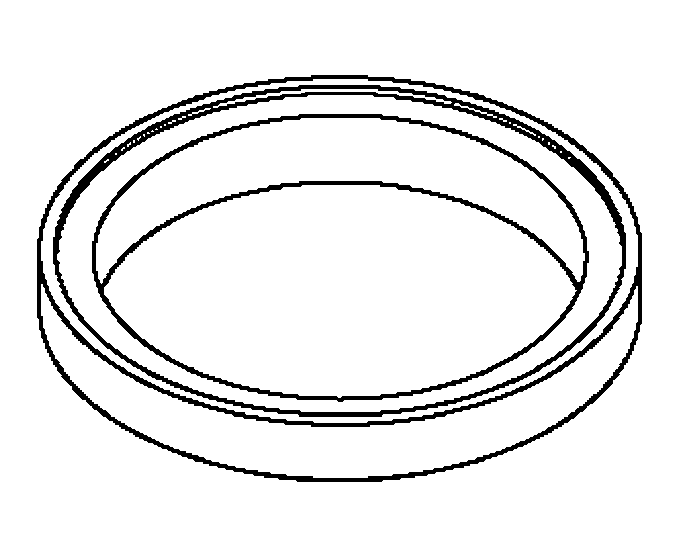

G04303649
 MB990887
Ring		 -

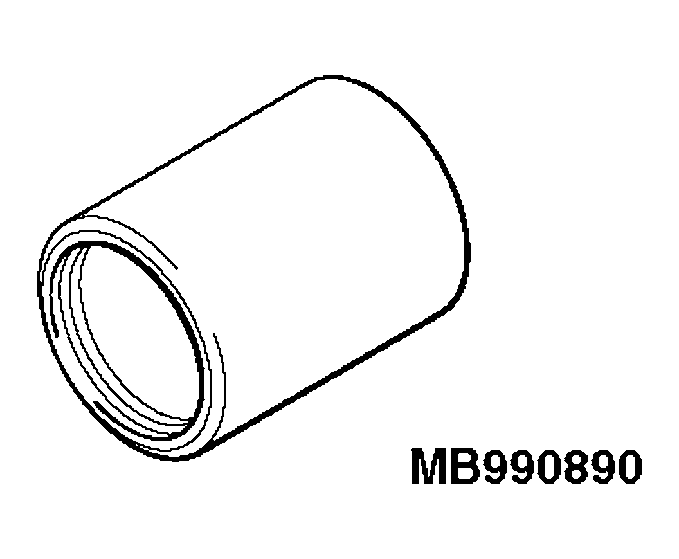

G04303650
 MB990890
Rear suspension bushing base		 MB990890-01 or general service tool

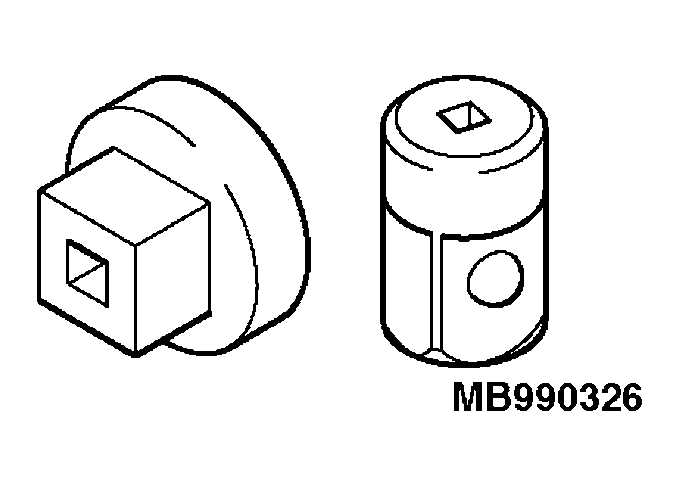

G04303651
 MB990326
Preload socket		 General service tool Ball joint turning torque check
