Special Tools
SPECIAL TOOLS DESCRIPTIONS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

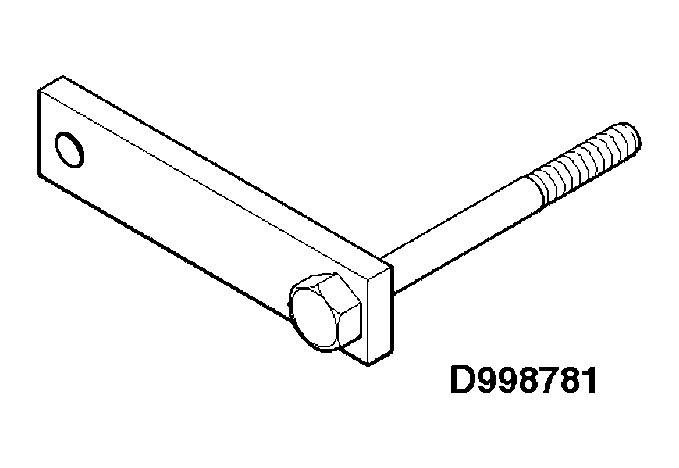

| MD998781 Flywheel stopper |
General service tool | Supporting flywheel and drive plate | |

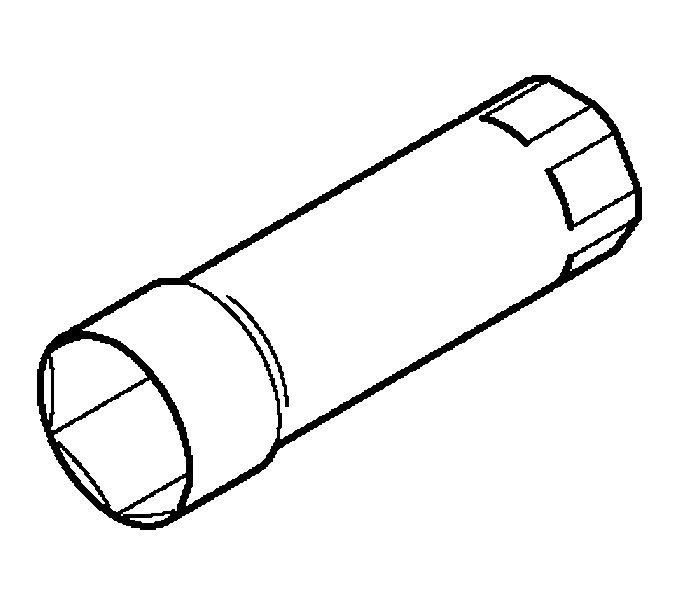

| MB991398 Spark plug wrench |
- | Removal and installation of spark plug | |
| MD998778 Crankshaft sprocket puller |
General service tool | Removal of crankshaft sprocket | |
| MD998785 Sprocket stopper |
MD998785 | Supporting counterbalance shaft sprocket | |

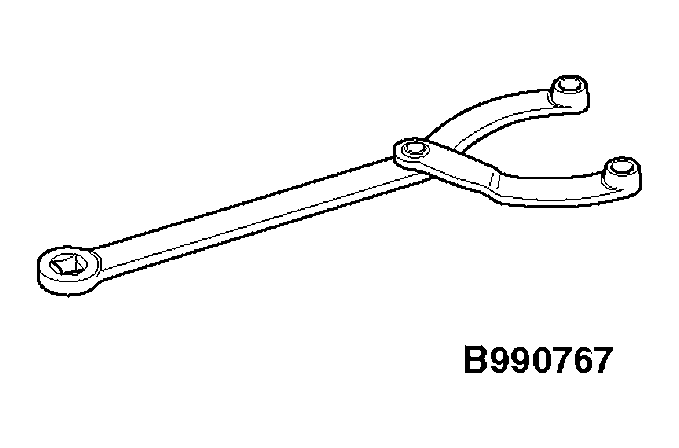

| MB990767 End yoke holder |
MB990767-01 | Holding camshaft sprocket when loosening or torquing bolt | |

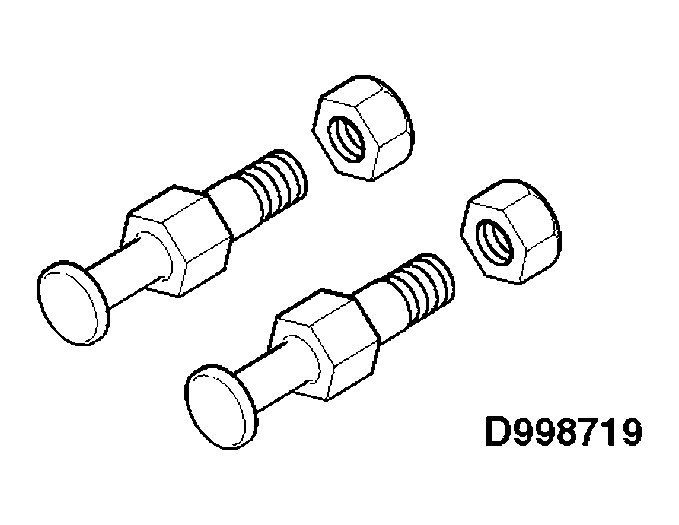

| MD998719 Pins |
MIT308239 | ||

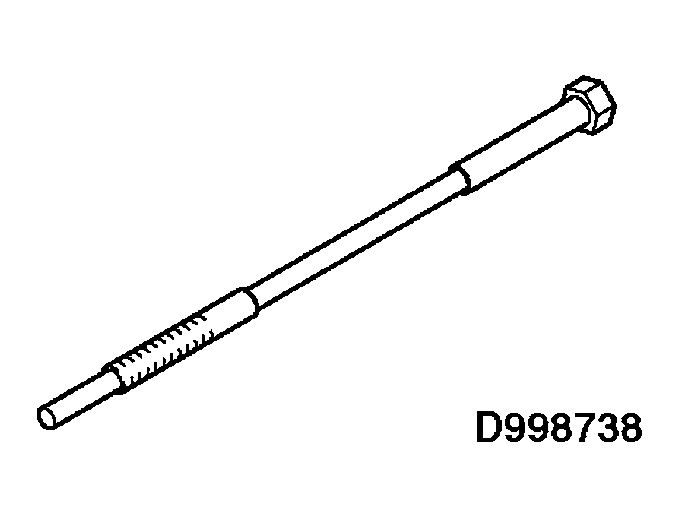

| MD998738 Adjusting screw |
General service tool |
|
|

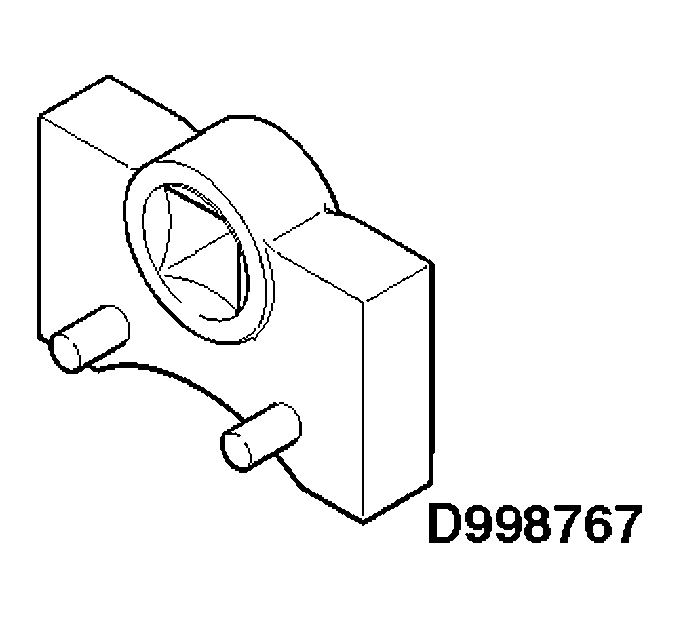

| MD998767 Tension pulley wrench |
MD998752-01 | Adjustment of timing belt tension | |

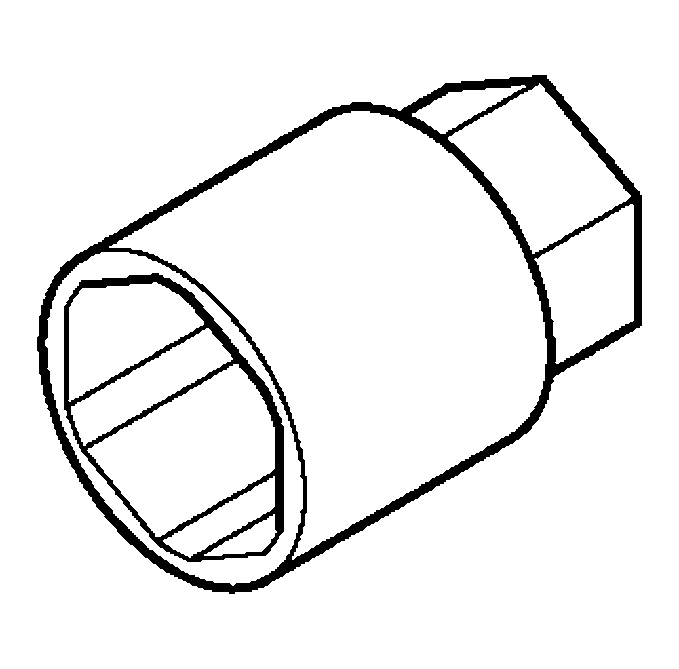

| MD998012 Oil pressure switch wrench |
- | Removal and installation of engine oil pressure switch < to cylinder block > | |

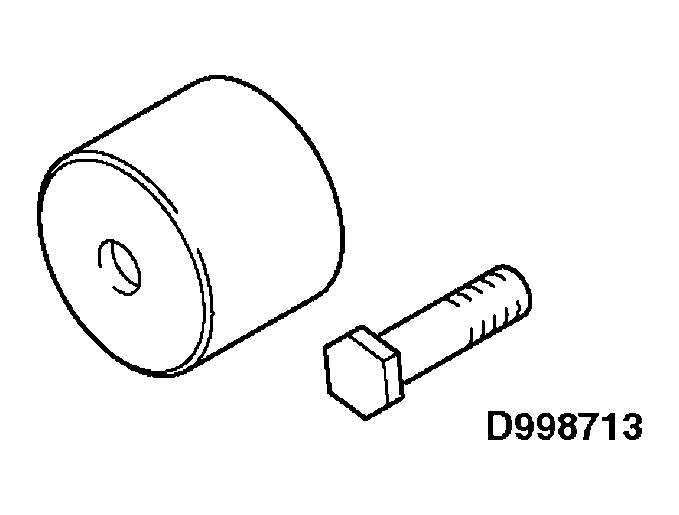

| MD998713 Camshaft oil seal installer |
MD998713-01 | Installation of camshaft oil seal | |

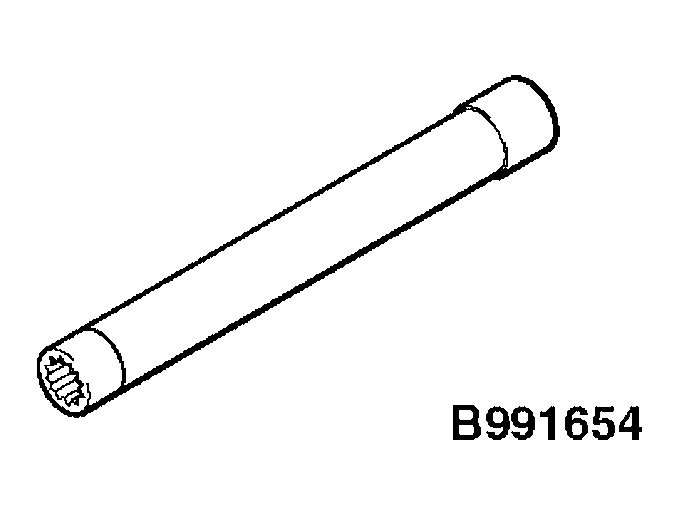

| MB991654 Cylinder head bolt wrench (12) |
General service tool | Removal and installation of cylinder head bolt | |

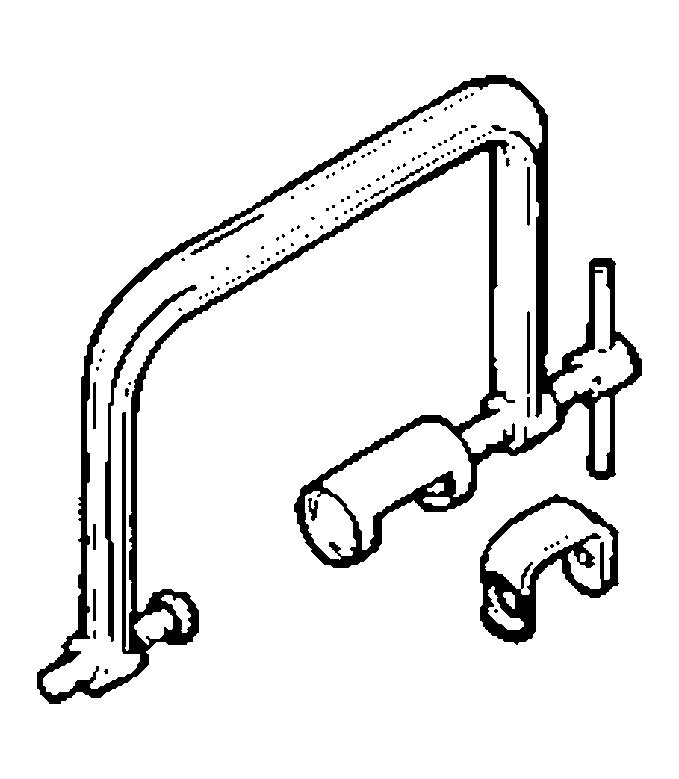

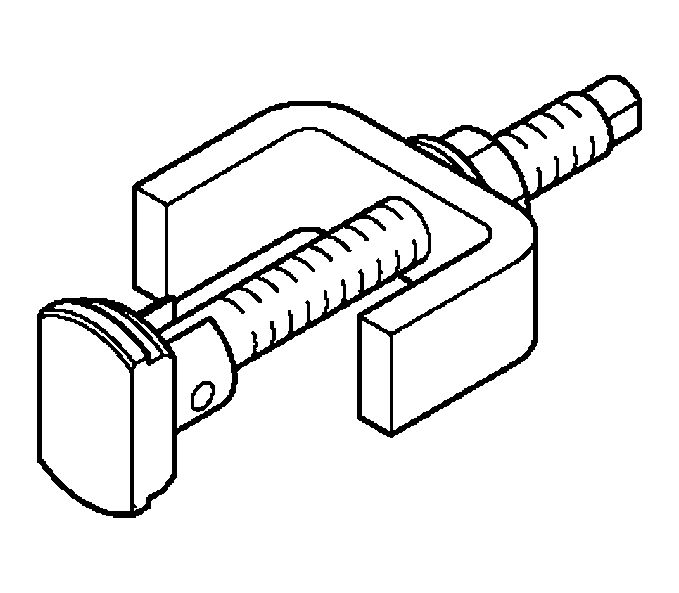

| MD998735 Valve spring compressor |
MD998735-01 | Compression of valve spring | |
| MB991999 Valve steam seal installer |
- | Installation of valve steam seal | |

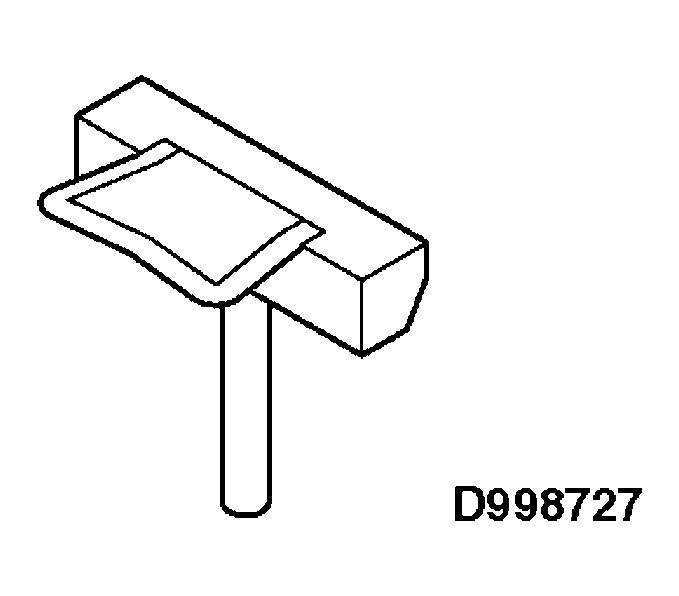

| MD998727 Oil pan remover |
MD998727-01 | Removal of oil pan | |
| MD998162 Plug wrench |
MD998162-01 | Removal and installation of front case cap plug | |
| MD998783 Plug wrench retainer |
General service tool | ||
| MD998371 Silent shaft bearing puller |
MD998371-01 | Removal of counterbalance shaft front bearing | |
| MD998372 Silent shaft bearing puller |
MD998372-01 | Removal of counterbalance shaft rear bearing | |

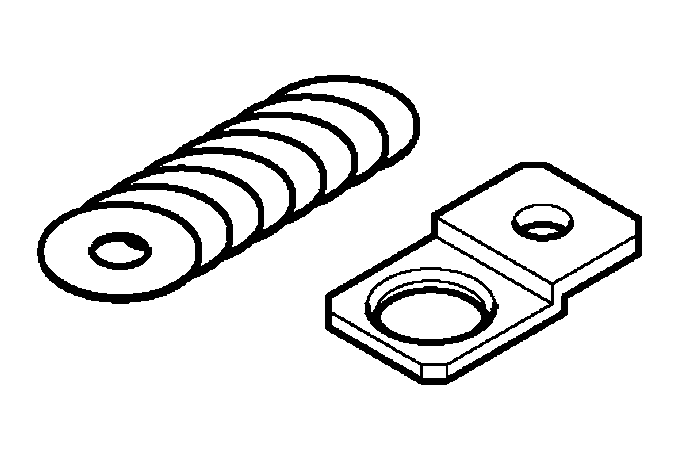

| MB991603 Bearing installer stopper |
- | Removal and installation of rear bearing | |
| MD998705 Silent shaft bearing installer |
MD998373-01 Use with MB990938-01 | Installation of counterbalance shaft bearing | |

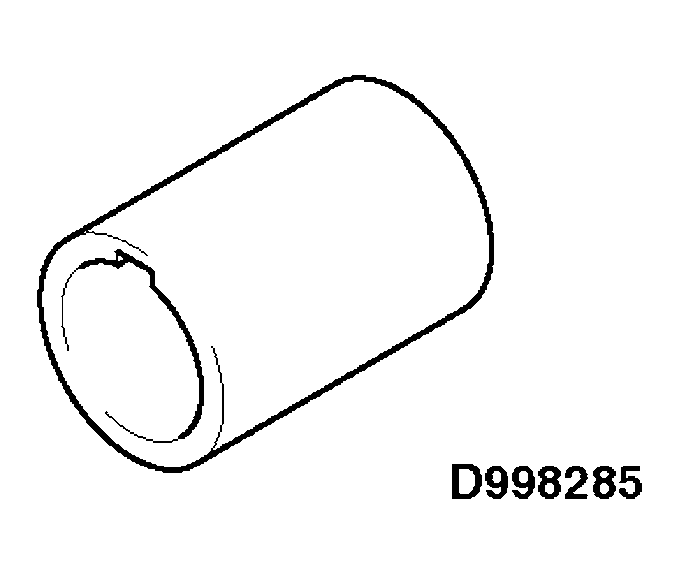

| MD998285 Crankshaft front oil seal guide |
MD998285-01 | Installation of crankshaft front oil seal | |
| MD998375 Crankshaft front oil seal installer |
MD998375-01 | ||

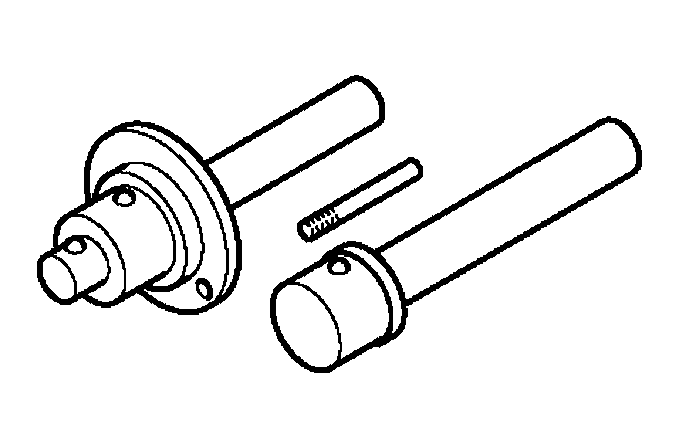

| MD998780 Piston pin setting tool |
MIT216941 | Removal and installation of piston pin | |
| MB992010 Bolt guide |
- | Removal and installation of piston and connecting rod assembly | |
| MB990938 Handle |
MB990938-01 | Installation of crankshaft rear oil seal | |

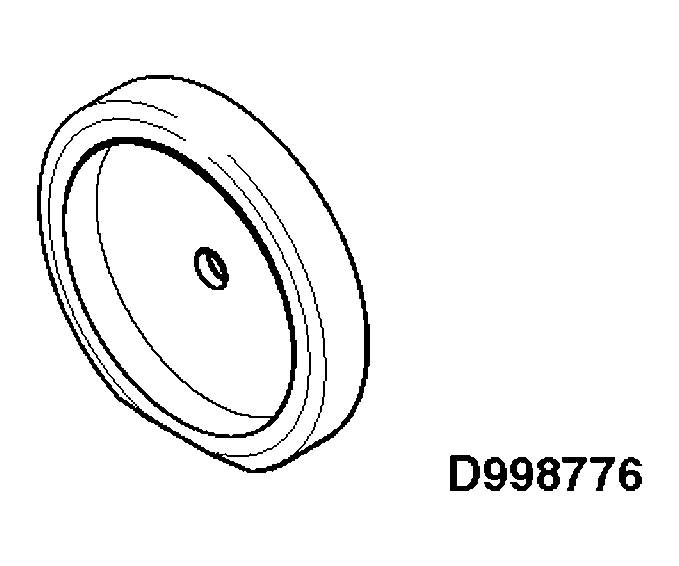

| MD998776 Crankshaft rear oil seal installer |
MD998376-01 |
