Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
A
G04302212G04302213G04302214G04302215G04302216G04302217G04302218

B
G04302212G04302213G04302214G04302215G04302216G04302217G04302218

C
G04302212G04302213G04302214G04302215G04302216G04302217G04302218

D
G04302212G04302213G04302214G04302215G04302216G04302217G04302218

E
G04302212G04302213G04302214G04302215G04302216G04302217G04302218

F
G04302212G04302213G04302214G04302215G04302216G04302217G04302218

G
G04302212G04302213G04302214G04302215G04302216G04302217G04302218
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826
MUT-III sub assembly

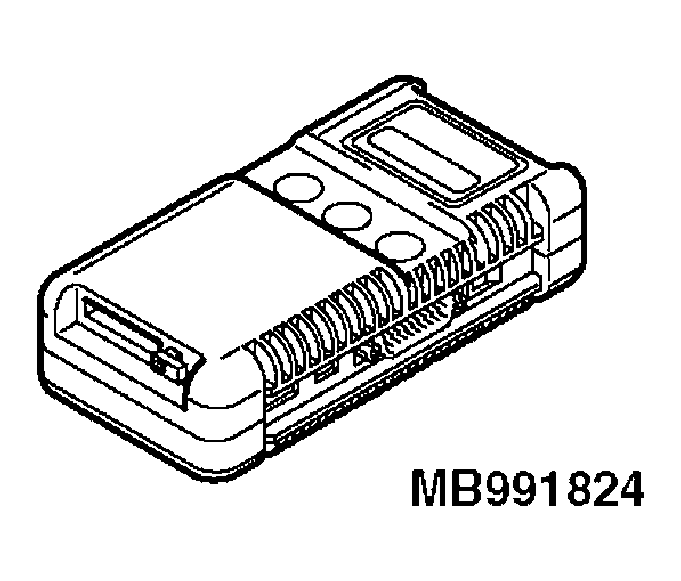

  1. Vehicle communication interface (V.C.I).

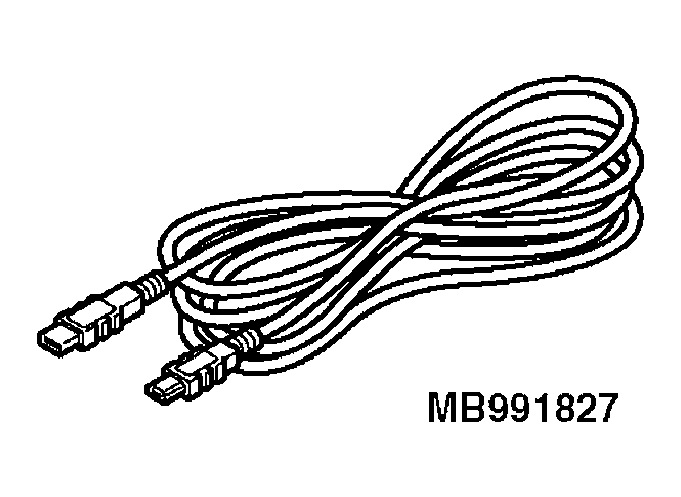

  2. MUT-III USB cable

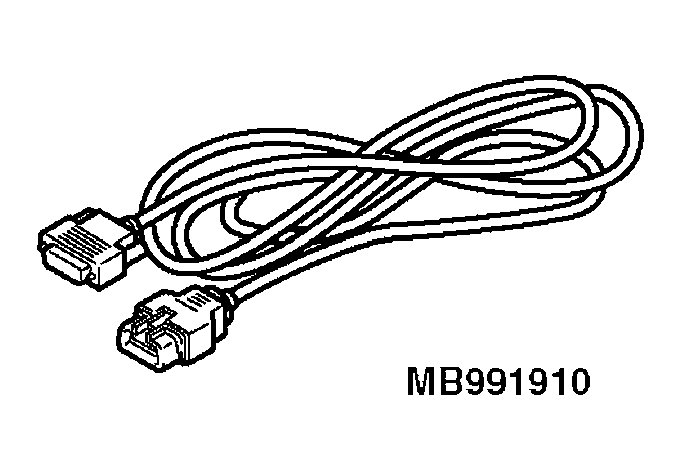

  3. MUT-III main harness A (Vehicles with CAN communication system)

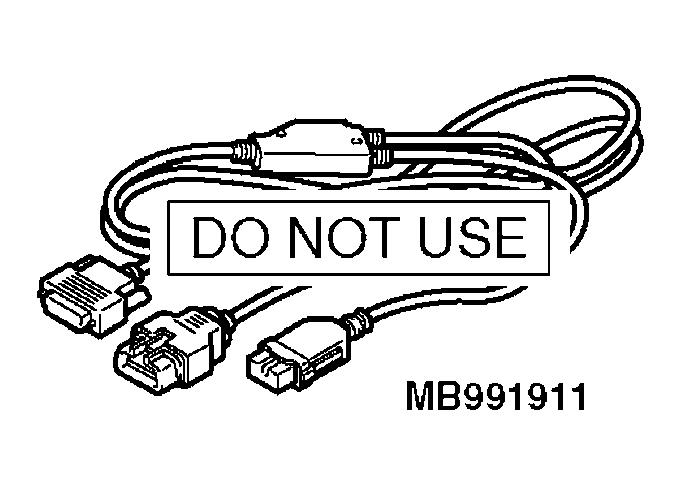

  4. MUT-III main harness B (Vehicles without CAN communication system)

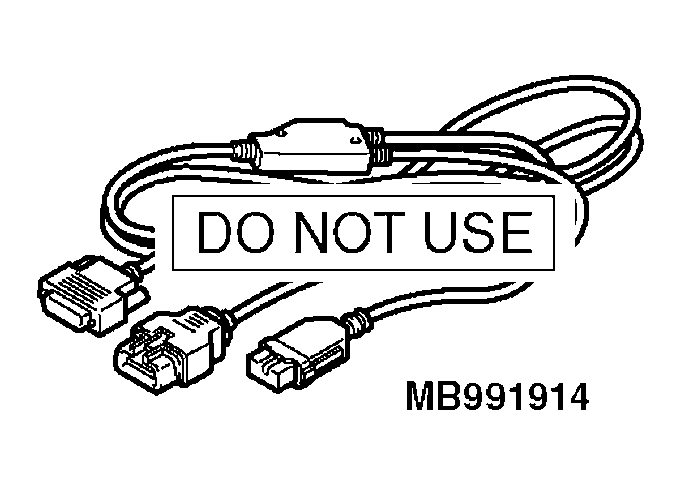

  5. MUT-III main harness C (for Daimler Chrysler models only)
  6. MUT-III measurement adapter

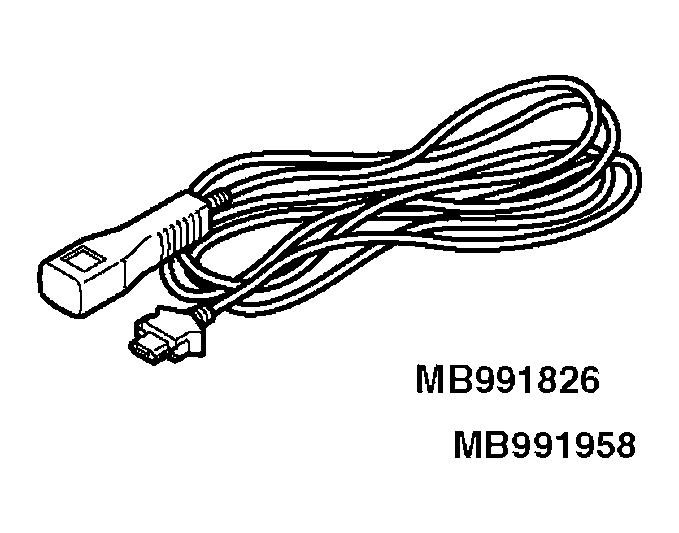

  7. MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.
 Checking diagnostic trouble codes
CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.
NOTE: This vehicle supports only the CAN communication between the SRS-ECU and the MUT-III.
G04302219

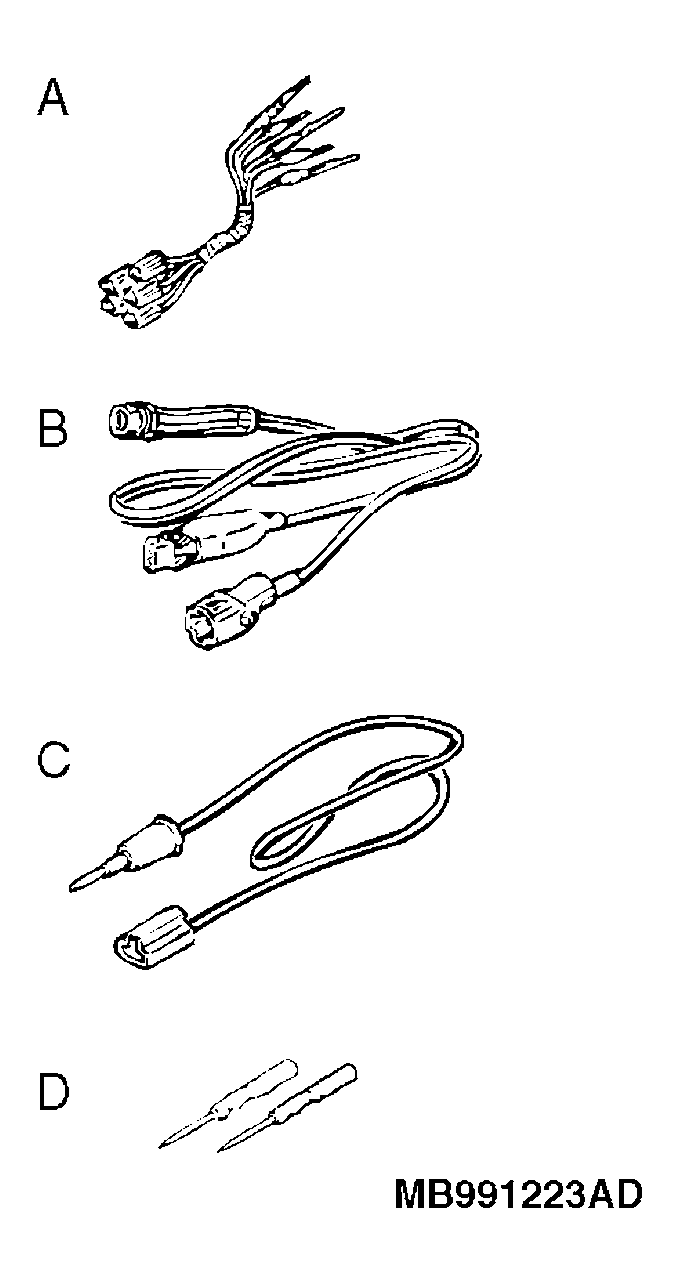

 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Inspection harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tools Checking the continuity and measuring the voltage at the harness connector
G04302220

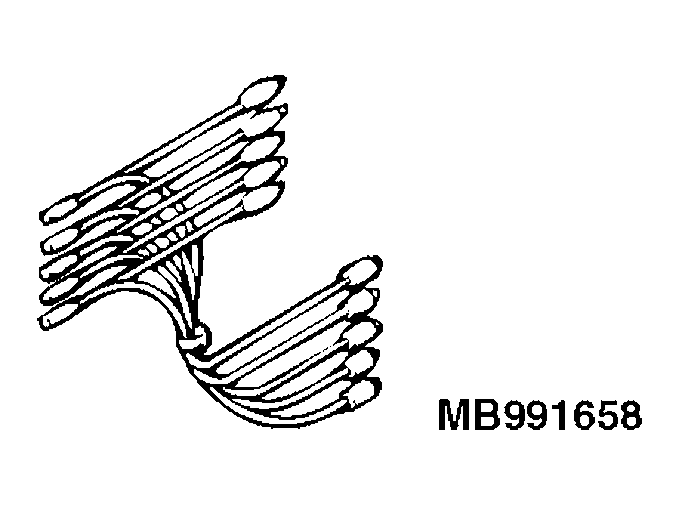

 MB991658
Test harness		 Tool not available Checking throttle position sensor
