Removal And Installation: Notes

CAUTION: For vehicles with ABS, do not strike the ABS rotors installed to the BJ outer race of driveshaft against other parts when removing or installing the driveshaft. Otherwise the ABS rotors will be damaged.

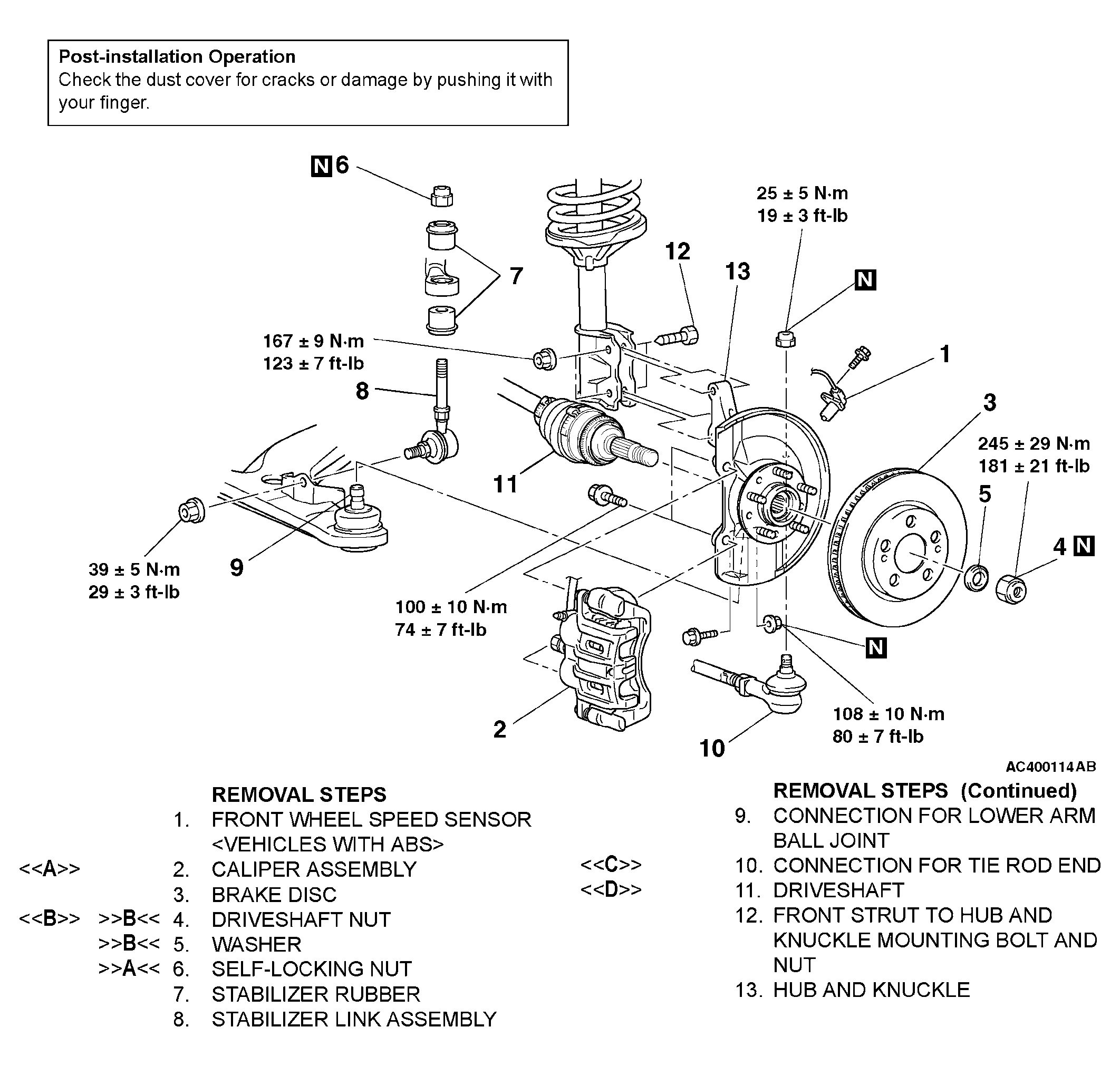

Fig 1: Removing/Installing Front Axle Hub Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990767: Front Hub and Flange Yoke Holder
MB991897: Ball Joint Remover
MB990241: Axle Shaft Puller
MB991354: Puller Body
