Disassembly And Assembly: Notes

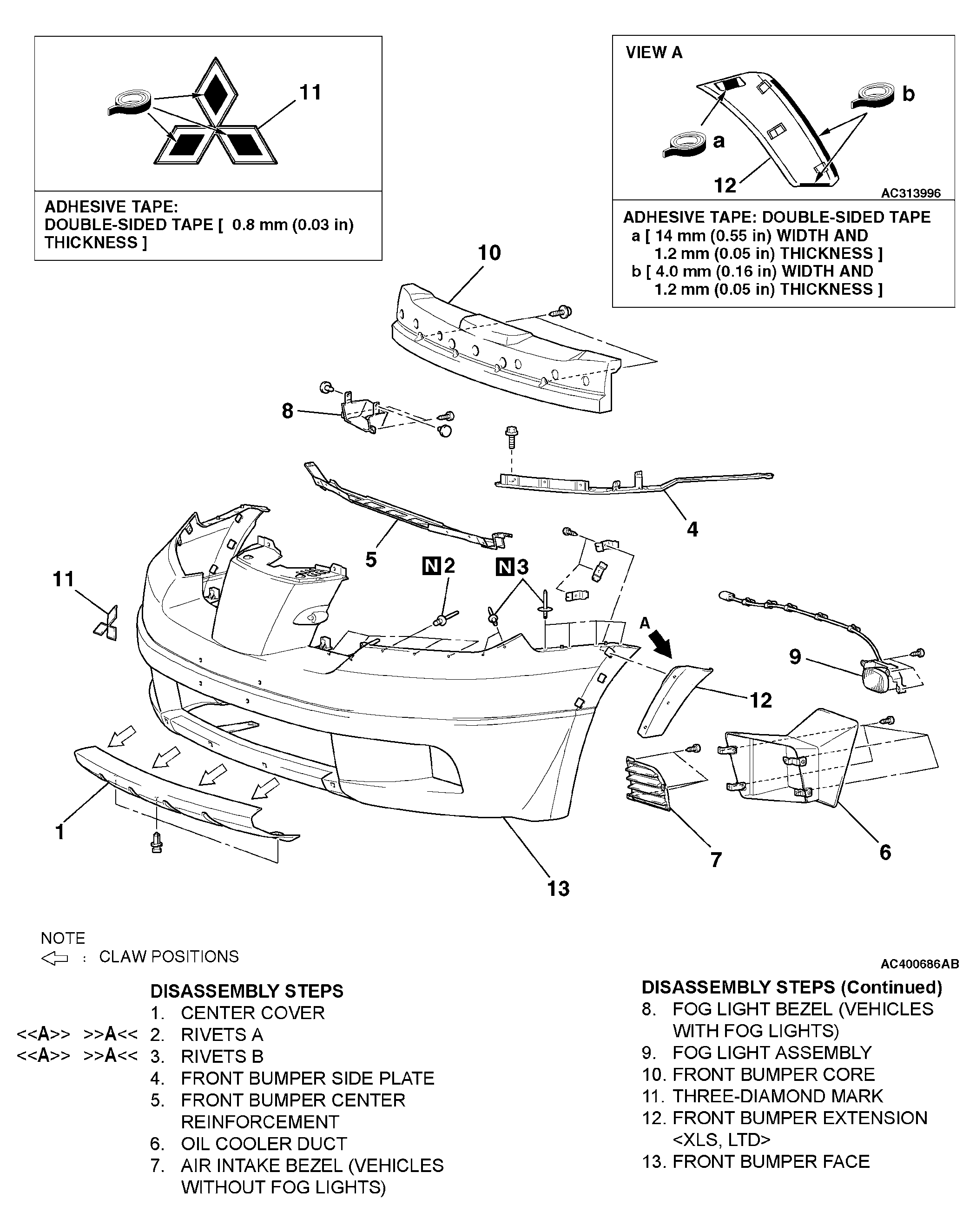

Fig 1: Exploded View Of Front Bumper Assembly

G04304155

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
