Construction Diagram

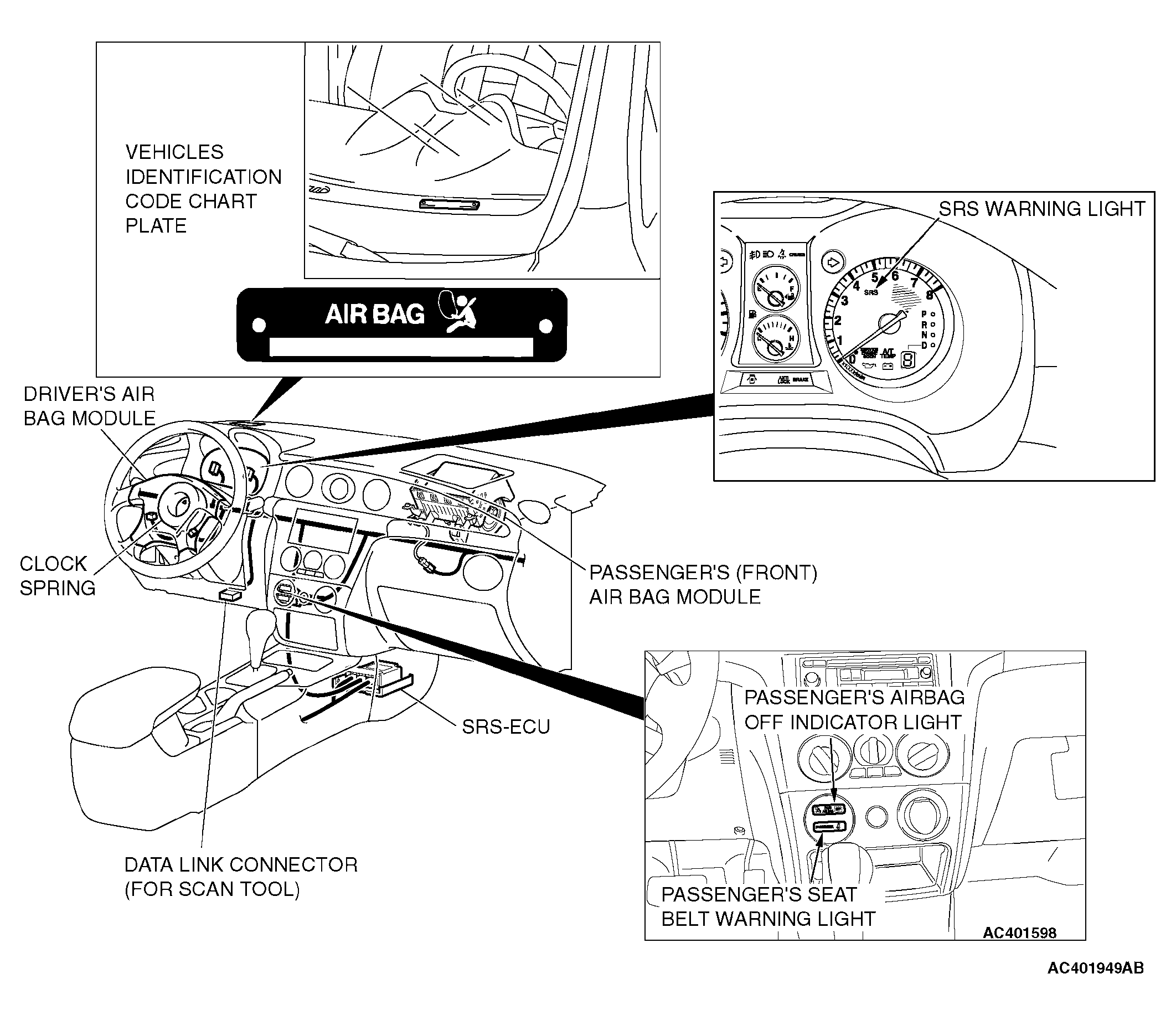

Fig 1: SRS Construction Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

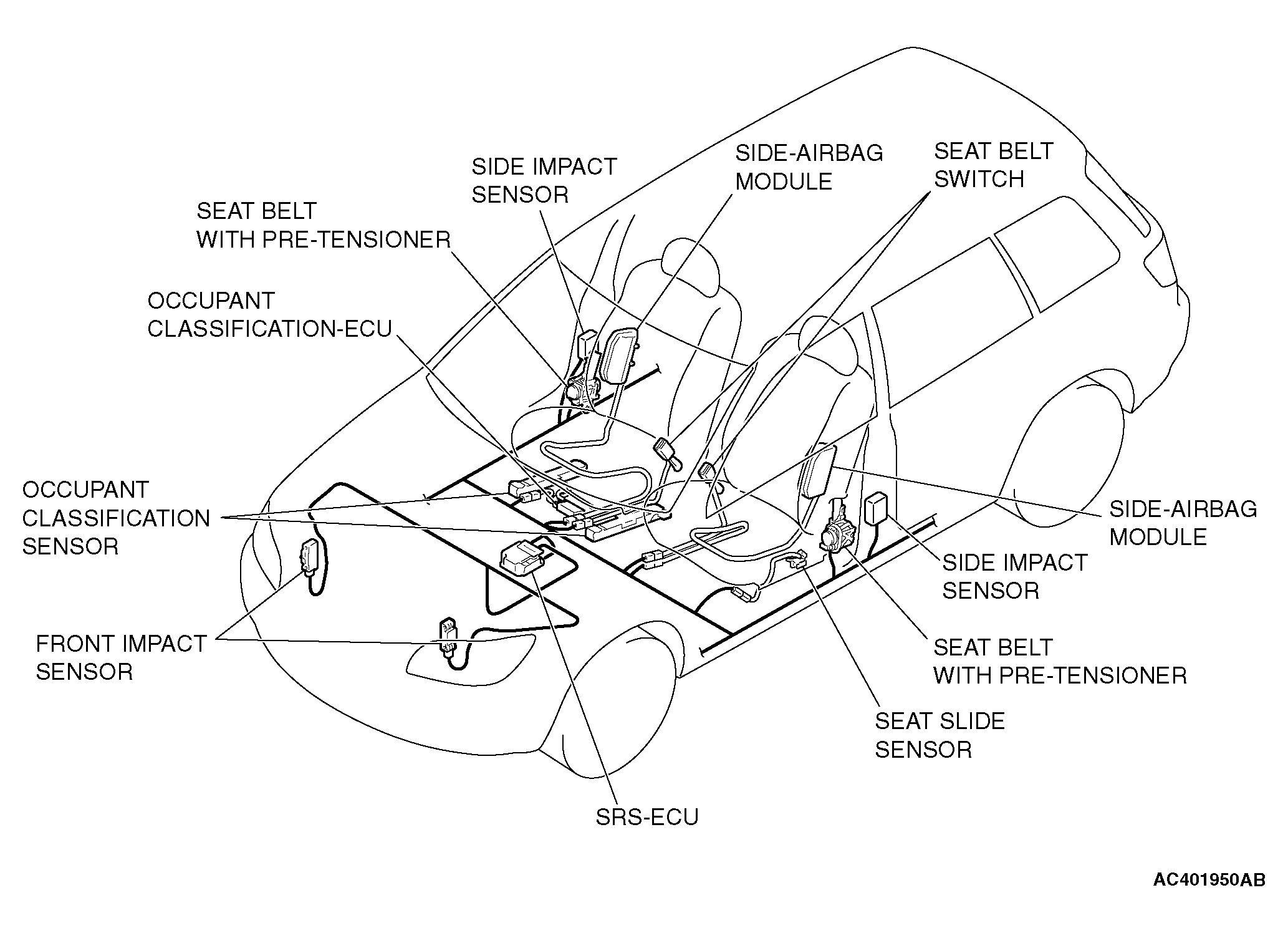

Fig 2: SRS Construction Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: This construction diagram shows the general view of the SRS components. For details, refer to ( SCHEMATIC ), ( CONFIGURATION DIAGRAMS ), and ( CIRCUIT DIAGRAM ).
