Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Power Steering Oil Pump Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

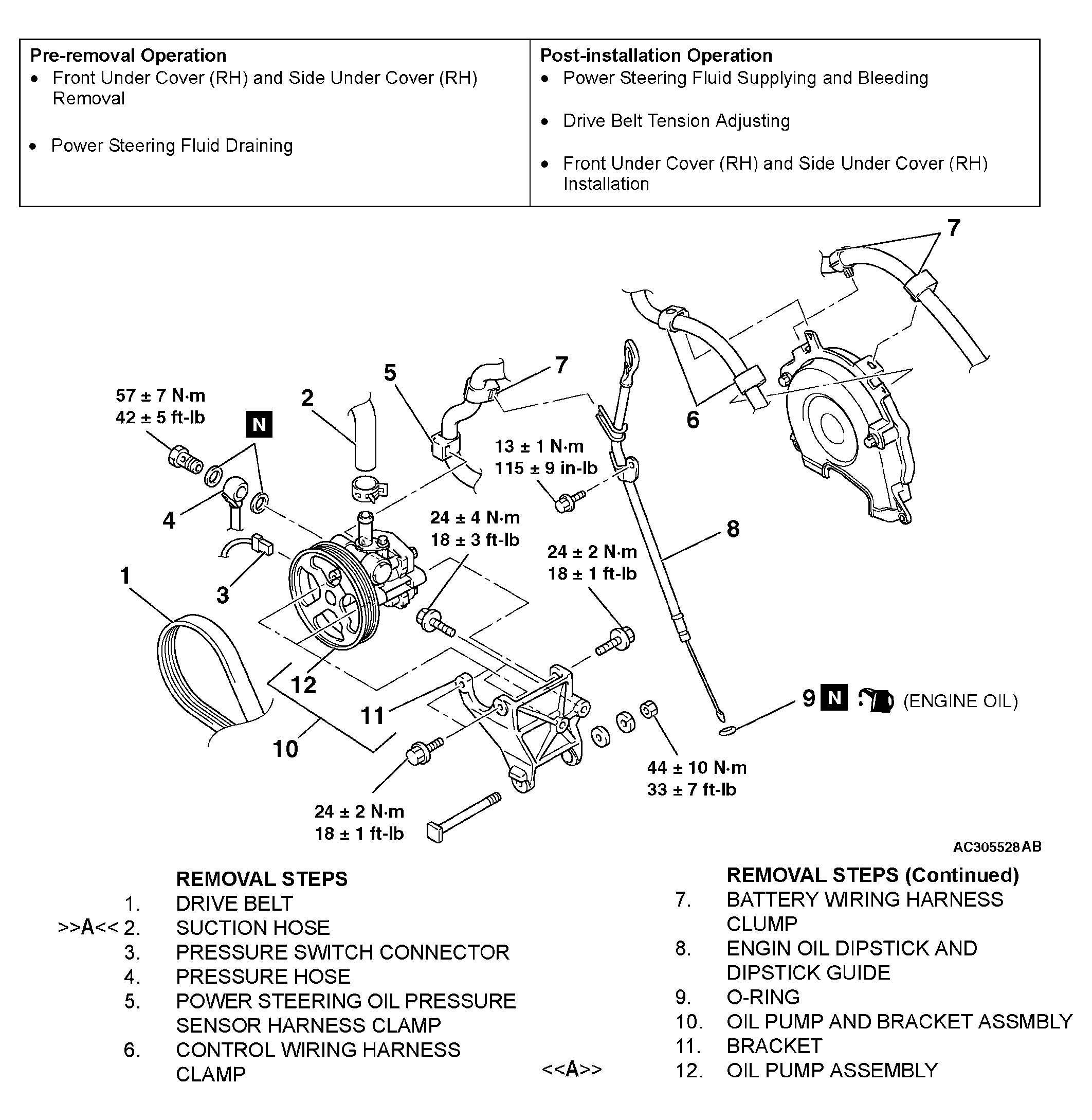

Fig 1: Removal And Installation Of Power Steering Oil Pump Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
