Seat Slide Sensor

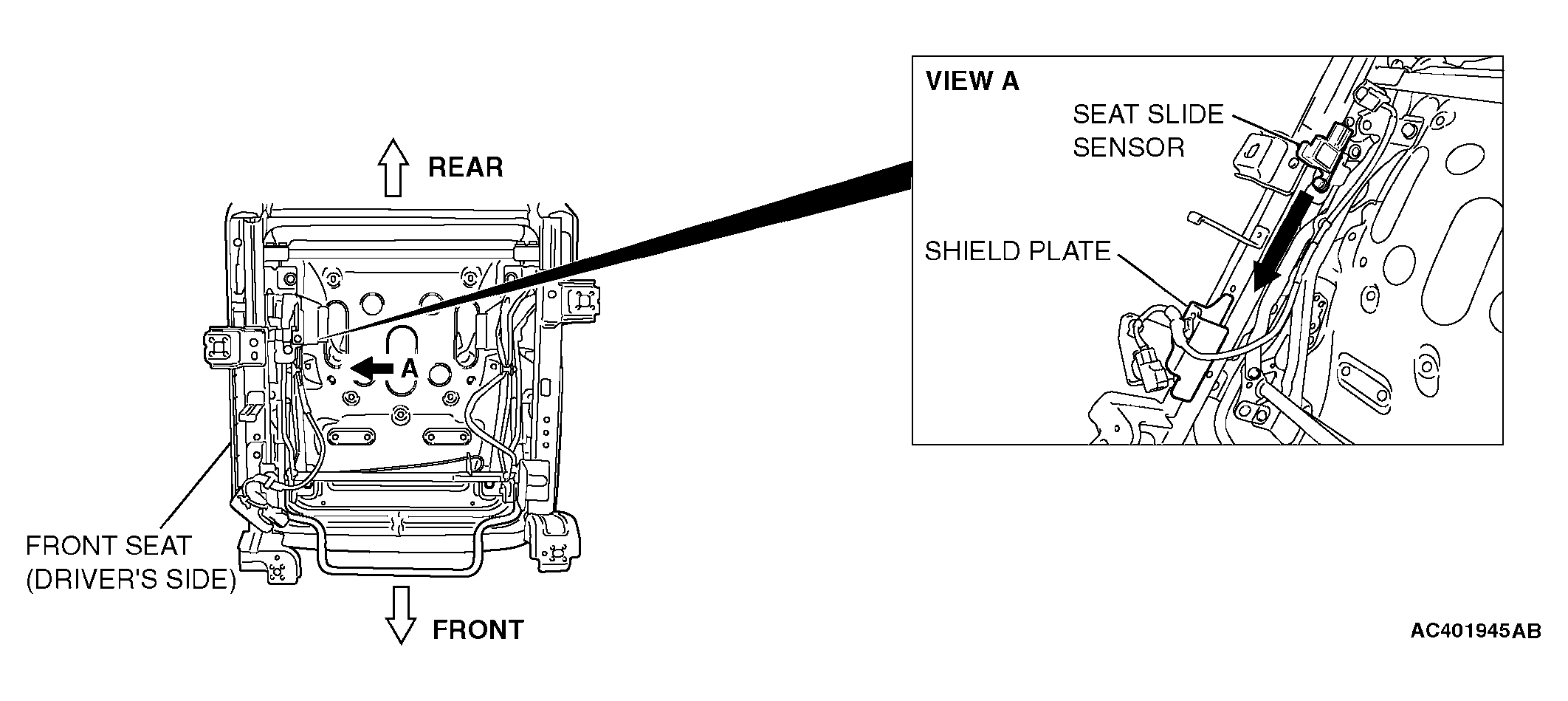

Fig 1: Identifying Seat Slide Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the seat slide sensor to prevent the serious injury.

The seat slide sensor is attached to the seat rail and provides the air bag control unit with information on the seat position.

The air bag control unit controls deployment output of the driver's air bag in accordance with the information from the sensor.
