Removal And Installation

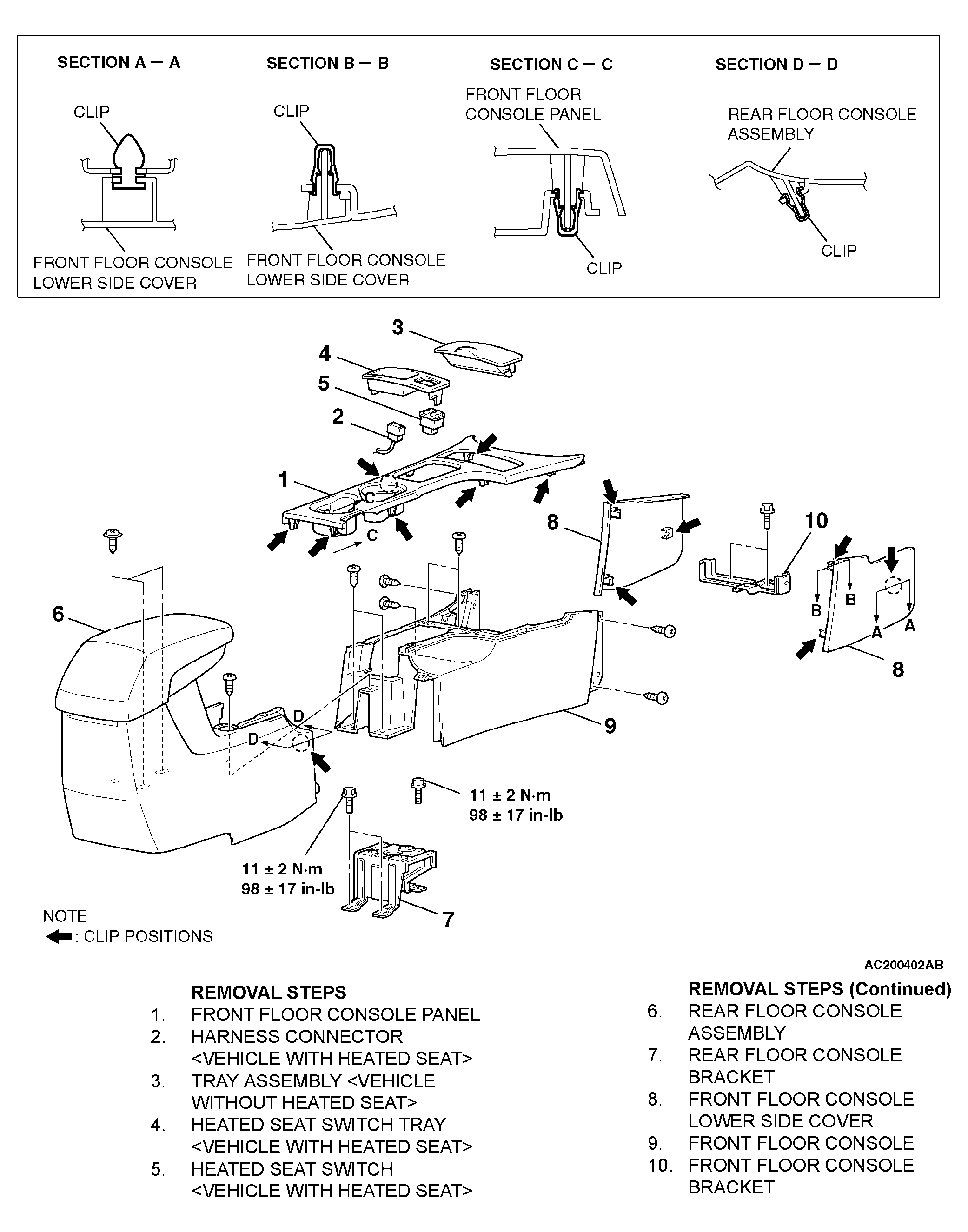

Fig 1: Identifying Floor Console Assembly Removal Steps
G04304288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
