Removal And Installation: Notes

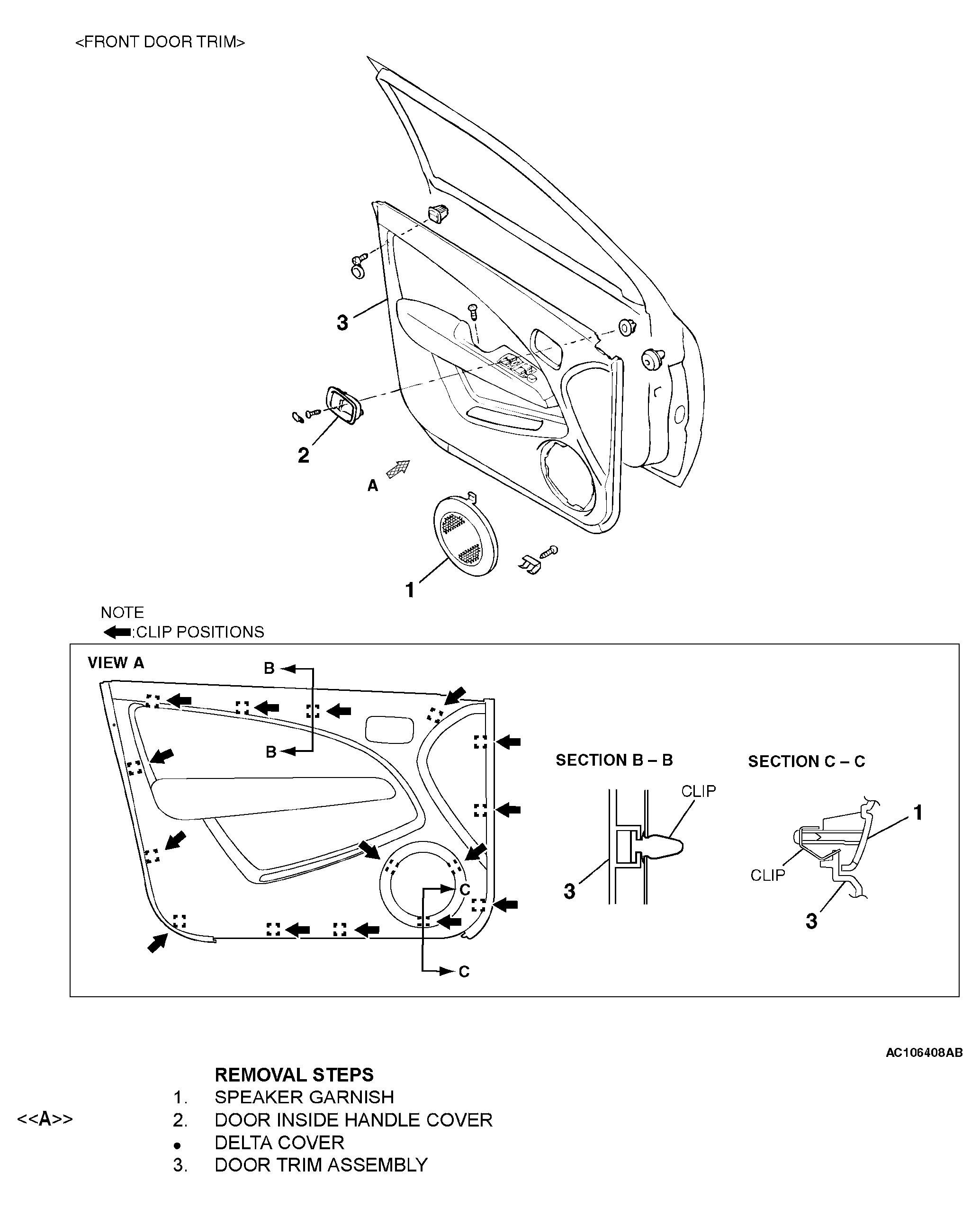

Fig 1: Identifying Door Trim Removal Steps - Front

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover

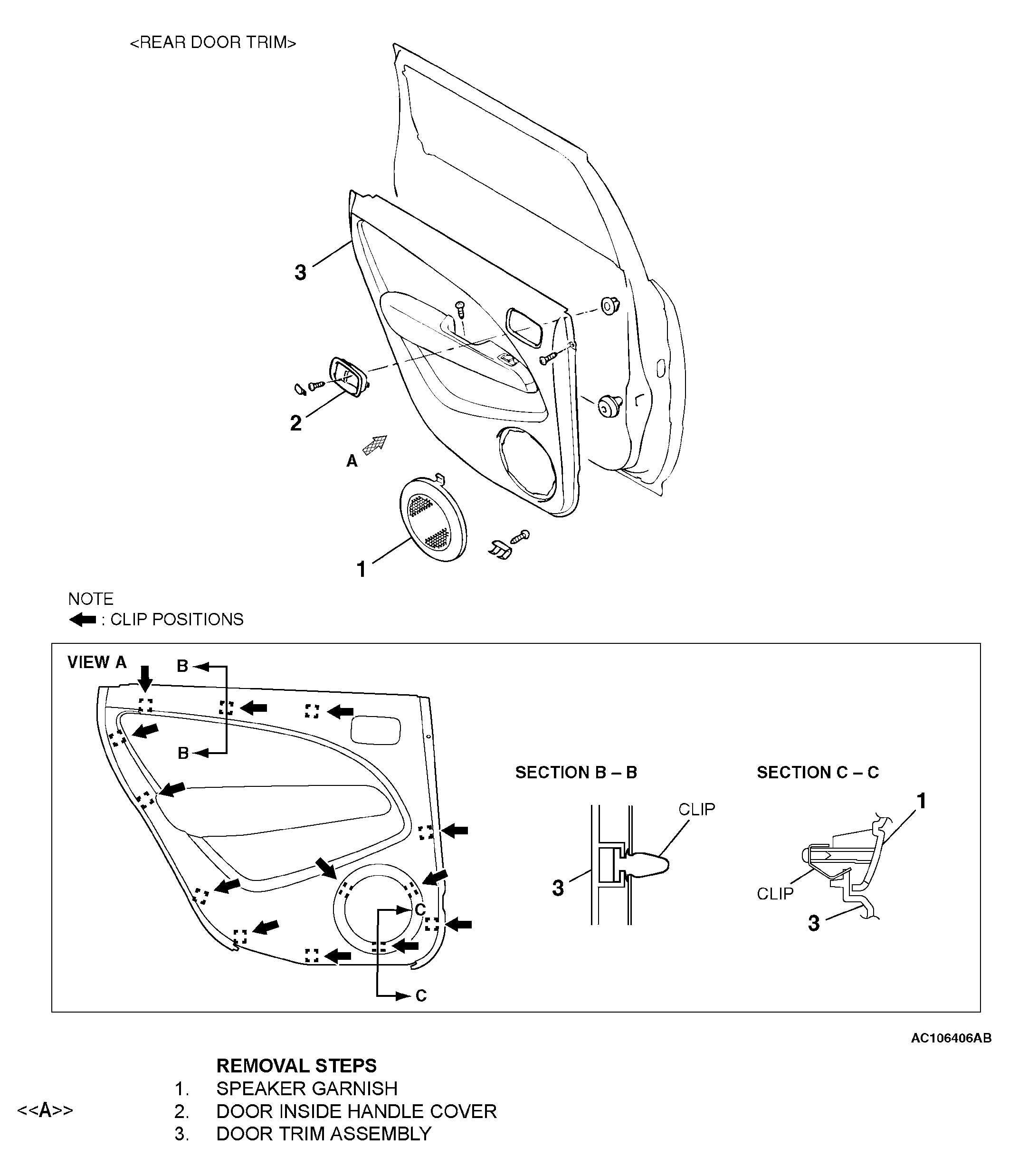

Fig 2: Identifying Door Trim Removal Steps - Rear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover
