Outlander LS, AWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Ignition System
>>
Crankshaft Position Sensor
>>
Removal And Installation
Removal And Installation

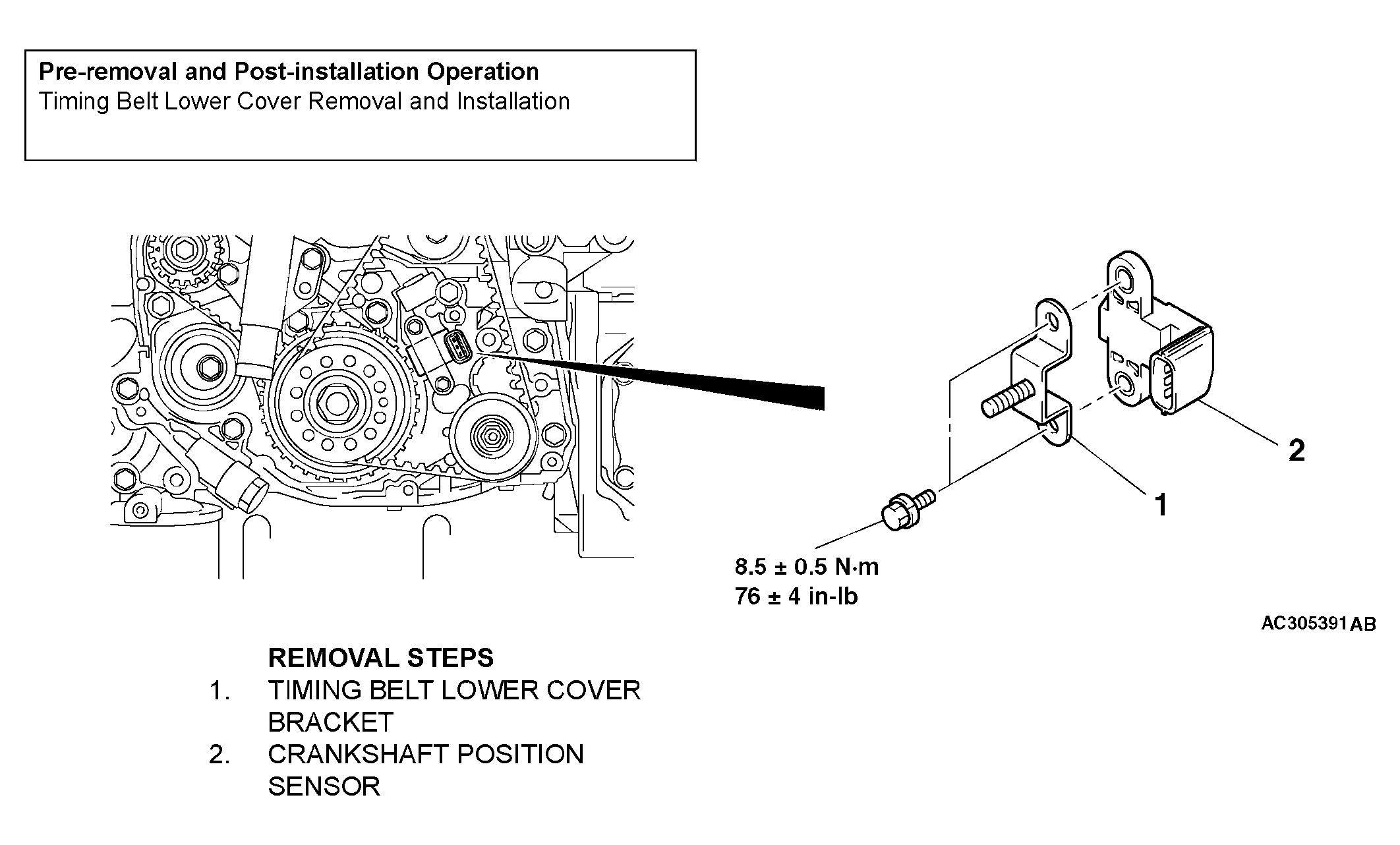

Fig 1: Removal And Installation Of Crankshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
